How To Make Laptop Stand ??

Discussion in 'Electronic Connection' started by XxxPURGATORYxxX, Apr 1, 2010.

  1. XxxPURGATORYxxX

    XxxPURGATORYxxX Bobtail Member

    Messages:
    29
    Thanks Received:
    2
    Joined:
    Feb 25, 2010
    Location:
    Jacksonville , Florida
    I start work on Wednesday . I got a few gps programs in my laptop . Are there any ideas or ways to make a laptop stand so its good and secure and doesnt fall around or get bumped around without having to drill holes or do any other stuff to the company truck ??

  2. Iceberg508

    Iceberg508 Bobtail Member

    Messages:
    20
    Thanks Received:
    5
    Joined:
    Mar 4, 2010
    Location:
    Las Vegas,Nevada
    I'm curruently making a laptop stand because I'm 75% sure I'll have to go back over the road if I don't get a job before my unemployment runs out.
    After some trial and error I came up with this...Go to Lowe's and purchase

    2 union joints for swiveling purposes
    [​IMG]
    2 floor flanges to attach to floor and laptop base
    [​IMG]
    45 degree and or 90 degree elbows
    [​IMG][​IMG]
    Various threaded pipe of different lengths (however you want it customized)
    [​IMG]

    Gears, TheRumRunner and MoneyCat Thank this.
  3. Iceberg508

    Iceberg508 Bobtail Member

    Messages:
    20
    Thanks Received:
    5
    Joined:
    Mar 4, 2010
    Location:
    Las Vegas,Nevada
    With different elbows and lengths of pipe you can customize it how you want.All my pipes and joints are 3/8 diameter galvanized (very strong)here's what i did
    1.Attach 2 ft long threaded pipe to floor flange
    2.Attach union joint (swivel joint) to the top of the pipe
    3.Attach 45 or 90 degree elbow (whatever angle you need) to the top of swivel joint
    4.Attach another threaded pipe to the elbow (this will be your swiveling arm so add any length you need.
    5.Attach another elbow to the end of the arm (45 or 90 degree whatever you used before)
    6.Attach the last union joint to the elbow and the last flange to the union
    7.I stll haven't made a platform you but whatever I use,I will screw it to the flange and it will also swivel

    2 flanges,2 union joints,2 elbows, 2 pipes long and short
    It'll cost you about $40 or less to make,much cheaper than the Ram or Jotto mounts

  4. ssbowles

    ssbowles Heavy Load Member

    Messages:
    709
    Thanks Received:
    279
    Joined:
    Sep 27, 2007
    Location:
    High Desert,CA
    Yeah, no problem...take it's chair away....:biggrin_25522::biggrin_25523:
    Sorry, just had to do it...

    punkinhed Thanks this.
  5. wsyrob

    wsyrob Trucker Forum STAFF Staff Member

    Messages:
    4,360
    Thanks Received:
    3,263
    Joined:
    Sep 14, 2007
    Location:
    Winston Salem

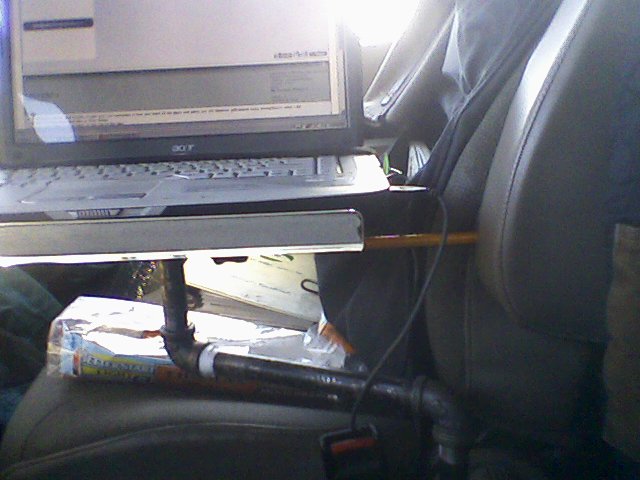

    Yep best bet. I mounted mine to the seat belt bolt. Moves up and down with the air seat. Probably be less than $40 if you get everything at the hardware store. I bought mine off EBay for around $40. It had a plexiglass top. If I had to do it again I would just make the top out of plywood.


    Attached Files:

    Last edited: Apr 1, 2010
    MoneyCat and TheRumRunner Thank this.
  6. simplyred1962

    simplyred1962 Betty Boop, One Bodacious Babe!!!

    Messages:
    4,028
    Thanks Received:
    4,424
    Joined:
    Apr 7, 2008
    Location:
    Wouldn't YOU like to know??? LOL
    Hubby bought me a neat little "homework stand" that tilts for $19.95.

    It works great while I'm sitting up front in the passenger seat while hubby is driving. I can play on my laptop, and still be up front to converse with him.

    But, I don't think it would be stable enough for what you want.

    Judi Kay

  7. Iceberg508

    Iceberg508 Bobtail Member

    Messages:
    20
    Thanks Received:
    5
    Joined:
    Mar 4, 2010
    Location:
    Las Vegas,Nevada
    Cool looks like you can swivel it to view movies from the sleeper.Thanks for the plywood platform idea.Possibilities are endless

  8. wsyrob

    wsyrob Trucker Forum STAFF Staff Member

    Messages:
    4,360
    Thanks Received:
    3,263
    Joined:
    Sep 14, 2007
    Location:
    Winston Salem
    I can actually swing it to use sitting on the bunk too. The air seat adjusts the height.

  9. Big Duker

    Big Duker <strong>"Don Cheto"</strong>

    Messages:
    2,918
    Thanks Received:
    2,818
    Joined:
    Sep 18, 2007
    Location:
    Weatherford, TX
    Were you worried about leaks w/ that teflon tape on there?:biggrin_25525:

  10. wsyrob

    wsyrob Trucker Forum STAFF Staff Member

    Messages:
    4,360
    Thanks Received:
    3,263
    Joined:
    Sep 14, 2007
    Location:
    Winston Salem
    That joint wouldn't stay tight with the laptop stand level. There was not enough thread for another 360 revolution. Teflon tape gives you a different set point.
