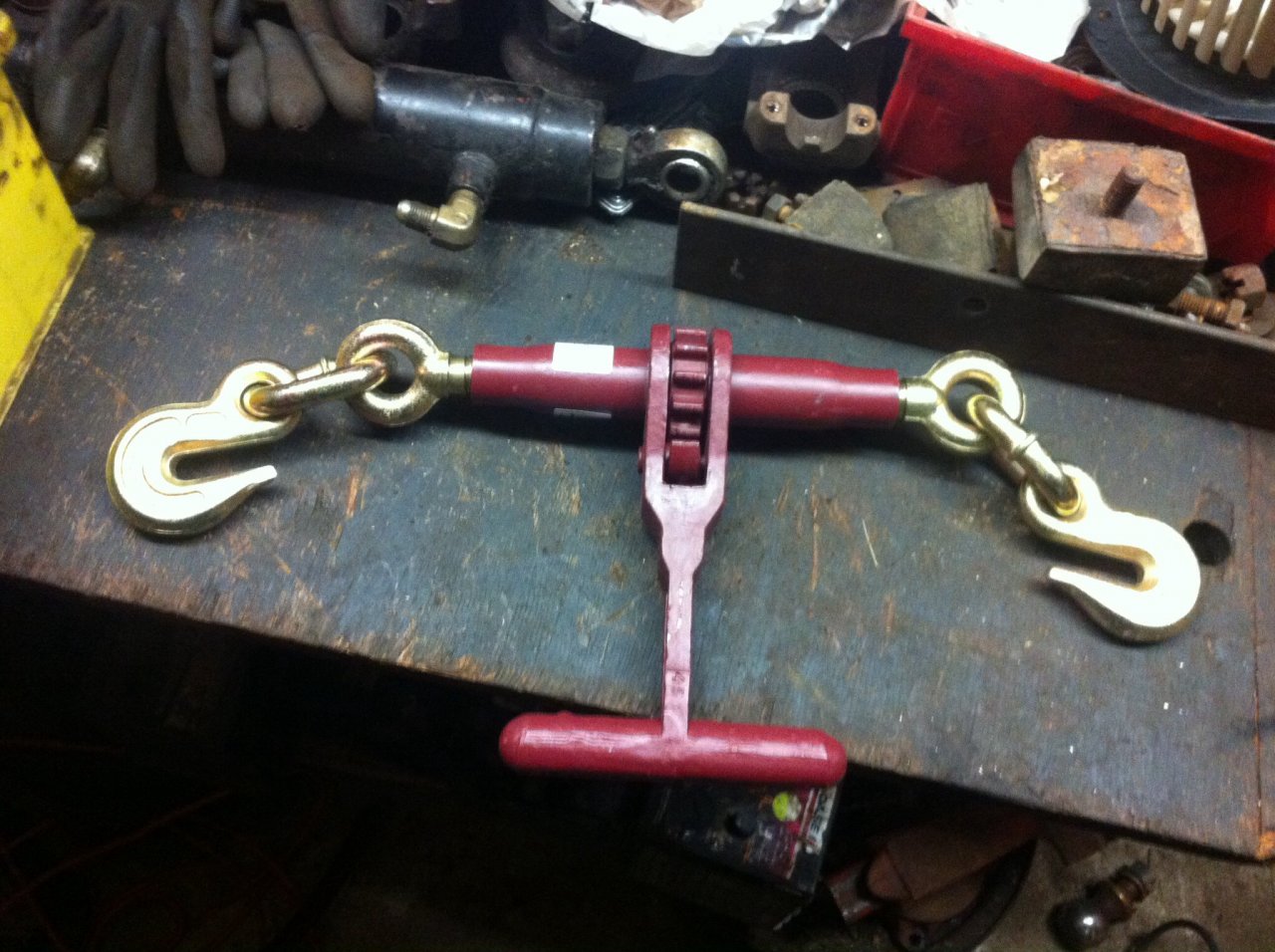

These are from the towing world. A friend showed me these in a tow magazine when they came out. They're from B/A.

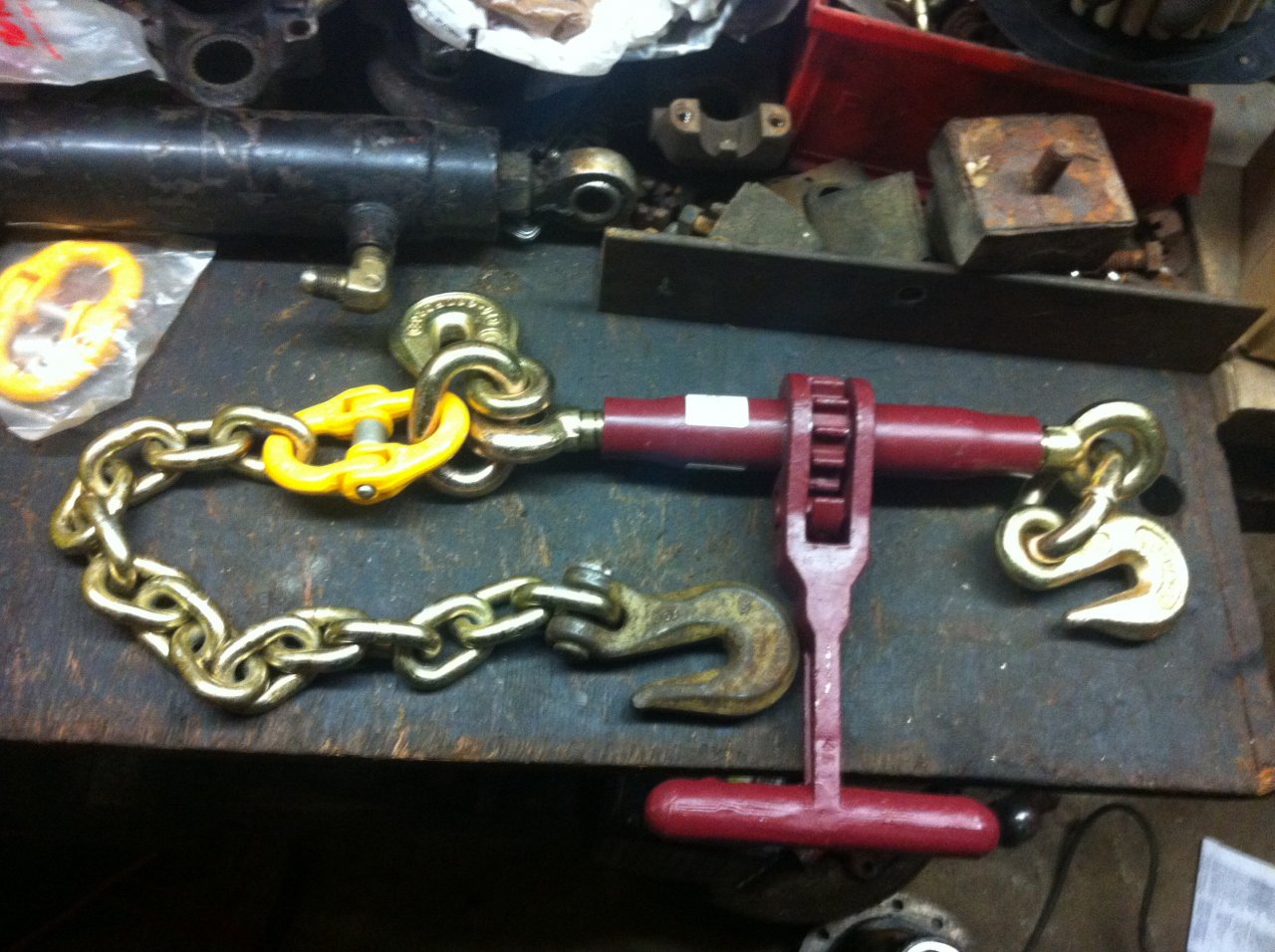

I added the short chain as a variation on another style they offered. They had other ones with 6 foot long chains, with j hooks, etc. The idea on the short chain is to drop it in a stake pocket, then grab a chain link coming from whatever you're tying down, and tighten.

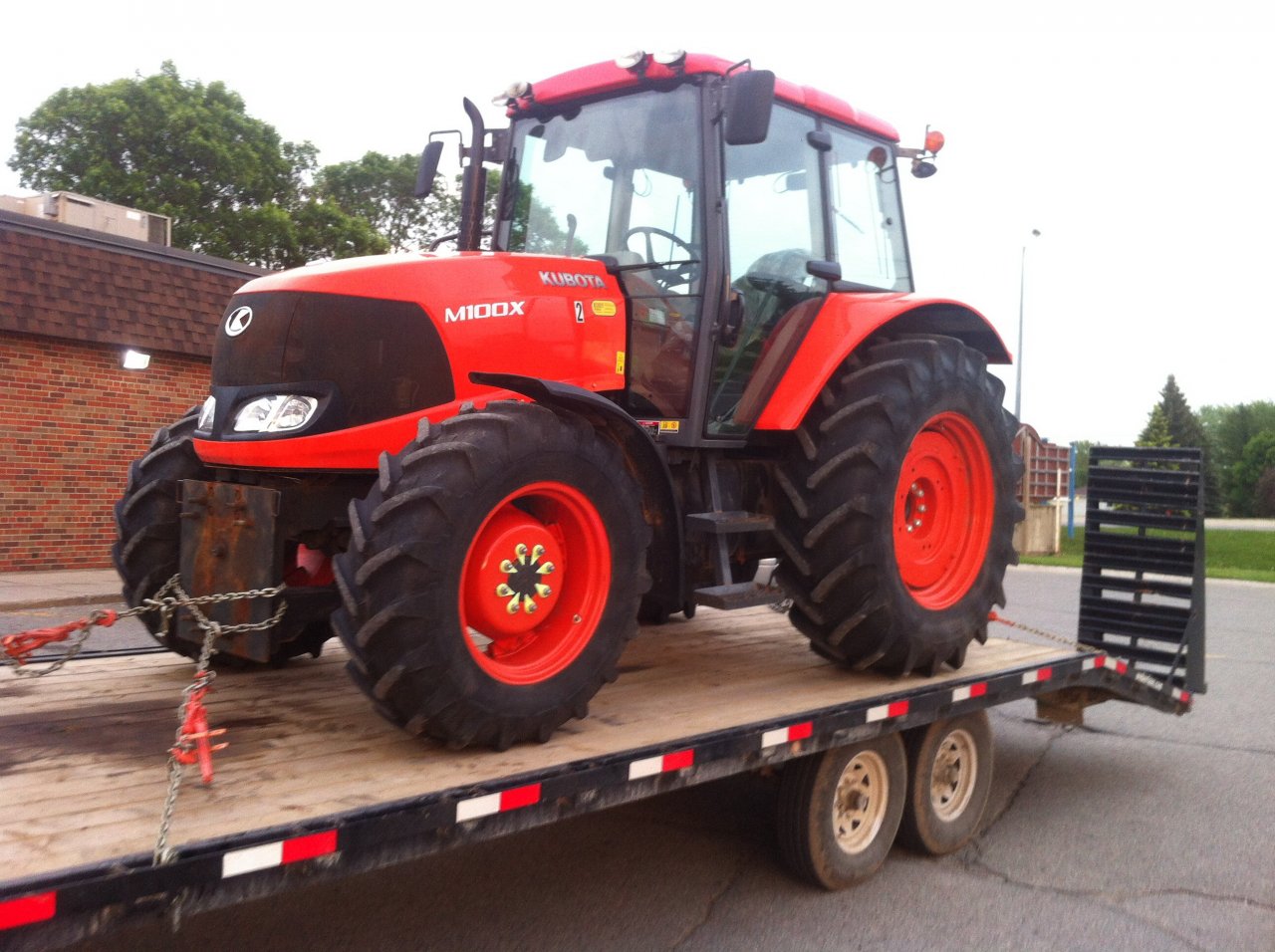

I may start short chaining more, use one chain/two binders instead of 2 chains/2 binders. Instead of how I did it in the last picture of the tractor on the deck, I'd like to be more efficient.
I don't know how they would work in the general freight world. I threw them under my bunk on the work truck. I doubt I'll use them, still, always a nice option to have.
New style ratchet binders
Discussion in 'Flatbed Trucking Forum' started by DDlighttruck, Feb 9, 2016.
Page 1 of 2
-
-
Trucking Jobs in 30 seconds
Every month 400 people find a job with the help of TruckersReport.
-
you can make em yourself..... take any length of chain you want, add a hook on one end and one of these to connect to ratchet:
http://www.uscargocontrol.com/Rigging-Supplies-Hardware/Grade-80-Connecting-Links -
T-handle not new but short barrel I have not seen before. Just what is needed for those wide coils that need to load suicide.
-
-
What are those comnector links rated for?
-
Those are grade 80 but they also come in other grades.
By the way those t handles have been out for a while. This is the newest ratchet binder with a 5400 lb WLL but they are not cheap at nearly $100 each
- Extra long handle provides mechanical advantage needed for secure tensioning of binder chains
- Durable countoured handle grip for comfortable operation
- Heavy gauge steel construction with corrosion resistant electro-zinc plating
- Dual solid gears distribute tensioning forces evenly
- Free wheel function for quick take up
- Quality Grade 100 load chain with swiveling grab hook ends for ease of use
- Works with 5/16" Grade 70 up to 3/8" Grade 43 chains
- Will take up 12" of chain during tensioning
- Working Load Limit (WLL): 5,400 lbs. (2,450 kg)
-
Here is their video using it.
-
Looks like alot of work. I will stick with my LEBUS snap binder's..... Thank you
mc8541ss Thanks this. -
I run Kinedyne now, they work. I wouldn't call them high quality. -
Diesel Dave, MJ1657 and johndeere4020 Thank this.
