peterbilt379exhd hood alignment

Discussion in 'Trucks [ Eighteen Wheelers ]' started by prerunner404, Aug 27, 2015.

  1. prerunner404

    prerunner404 Medium Load Member

    452
    222
    Aug 3, 2011
    lake havasu city az
    0
    Finally got my truck from the shop and my hood doesnt come and sit flush up to the fire wall of the cab. Whats the easiest way to align the hood so it fits all the way back up against the cab and firewall. Thanks in advance.

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. mtoo

    mtoo Road Train Member

    1,909
    4,310
    Jan 15, 2011
    Retired on bended knee
    0
    If it, 's a unibuilt, you don't want it up against the firewall. A unibuilt cab moves with the cab air bags but the hood does not move. Mine has 3/4 inch +. If its to close it will tear the hood and cab up. I see yours is a 97 so its a unibuilt.

  4. prerunner404

    prerunner404 Medium Load Member

    452
    222
    Aug 3, 2011
    lake havasu city az
    0
    Ya I can see into the engine bay on mine is that normal then? Seems as it should fit a little closer I will take pics to show what I'm talking about.

  5. prerunner404

    prerunner404 Medium Load Member

    452
    222
    Aug 3, 2011
    lake havasu city az
    0

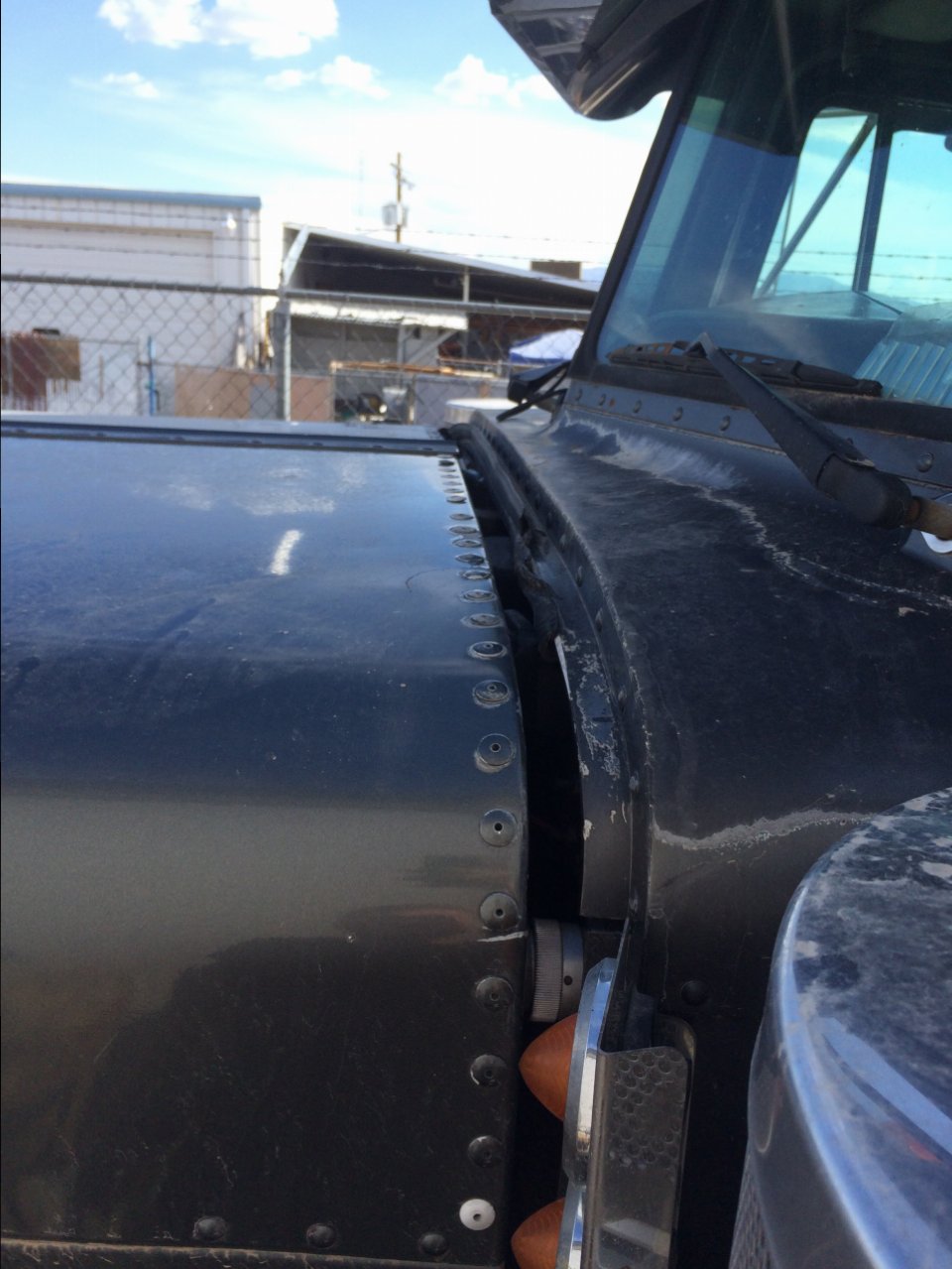

    This is what I was talking about. Seems pretty far out of alignment to me??


    Attached Files:

  6. prerunner404

    prerunner404 Medium Load Member

    452
    222
    Aug 3, 2011
    lake havasu city az
    0

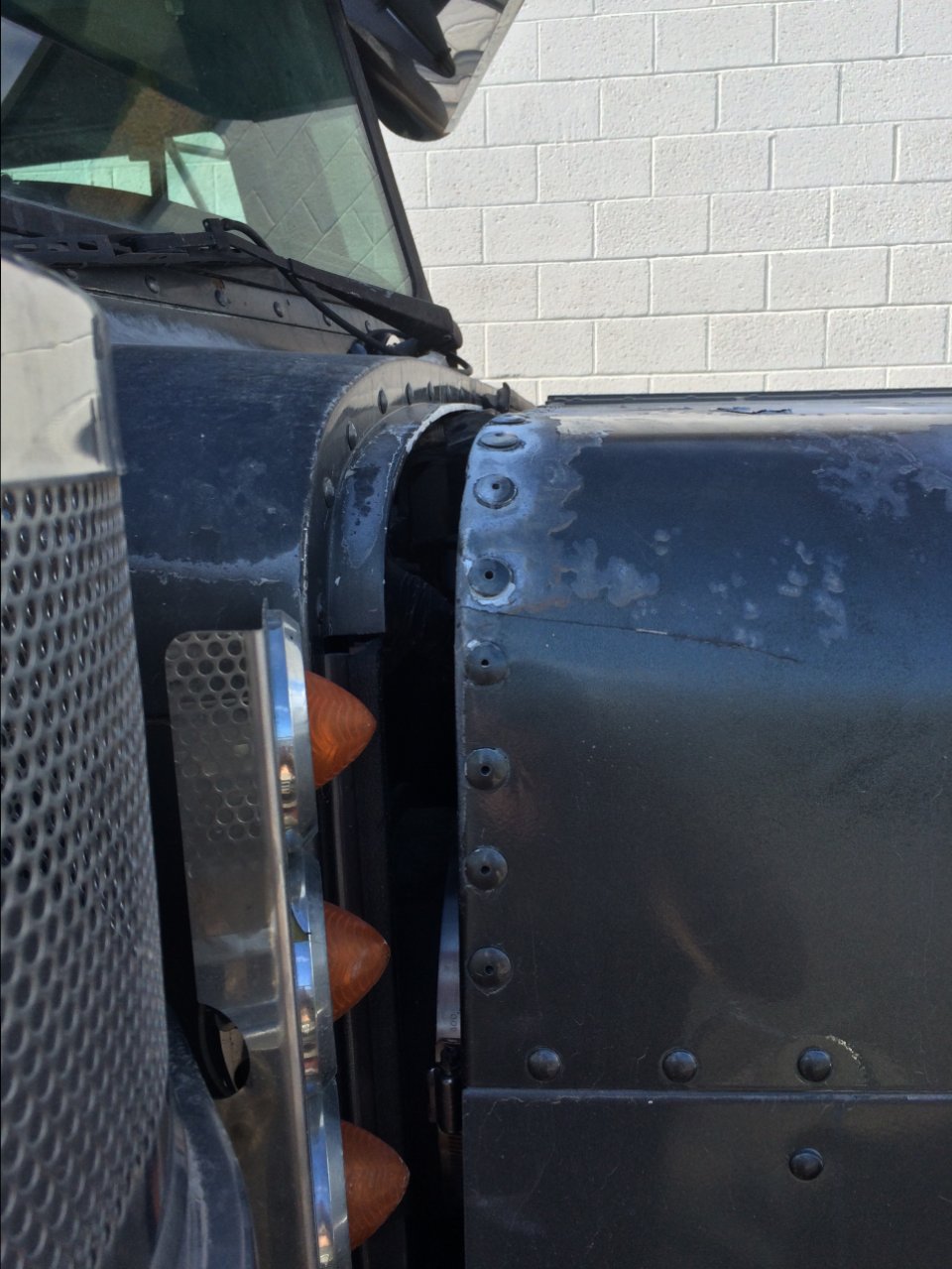

    This is what I was talking about. Seems pretty far out of alignment to me??

  7. swaan

    swaan Road Train Member

    2,943
    4,371
    Jul 12, 2009
    BC canada
    0
    Ya that ain't right lol
    Bring it back to the shop who did it and ask the manager if this is how they do all there work! Geez that's bad.

    It should sit flush with the top of the cowl and about an 1" away from it .

    Yours is about 2" lower then cowl and about 4-5" away lmao!
    Small child can dam near do a valve set with out opening your hood lol

  8. prerunner404

    prerunner404 Medium Load Member

    452
    222
    Aug 3, 2011
    lake havasu city az
    0
    Haha ya. I didn't think that was right. Thanks for the help

  9. prerunner404

    prerunner404 Medium Load Member

    452
    222
    Aug 3, 2011
    lake havasu city az
    0
    I ordered all new hood bushings as mine are in bad shape. Going to replace them all and realign the hood.

  10. mtoo

    mtoo Road Train Member

    1,909
    4,310
    Jan 15, 2011
    Retired on bended knee
    0
    That's the way to do it. just get in there and learn

  11. prerunner404

    prerunner404 Medium Load Member

    452
    222
    Aug 3, 2011
    lake havasu city az
    0
    Ya I use that method of thinking for just about everything in life.
