Please somebody can help me ?? -->> J1587 Communication Error With Vehicle ECU

Discussion in 'Volvo Forum' started by 666999, Mar 17, 2013.

  1. bravoo67

    bravoo67 Light Load Member

    252
    34
    Mar 15, 2012
    Brooklyn NY
    0
    it could be the ground on the frame as well :/ good luck driver

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. 666999

    666999 Bobtail Member

    9
    3
    Mar 17, 2013
    0
    Yes sir,I have been already towed, they dropped me to Volvo dealer. Just waiting for tomorrow morning.

  4. 666999

    666999 Bobtail Member

    9
    3
    Mar 17, 2013
    0
    thank you for ideas , I'm gonna wait till tomorrow and what dealer will say.

    I will put the answer what was wrong with truck.

  5. bravoo67

    bravoo67 Light Load Member

    252
    34
    Mar 15, 2012
    Brooklyn NY
    0
    Did you get any answers from the dealer? what was wrong with the truck?

    666999 Thanks this.
  6. 666999

    666999 Bobtail Member

    9
    3
    Mar 17, 2013
    0
    Hey,
    yes sir finally everything's ok now,you was right :)
    it was wiring's problems,corroded and some connections from that place what you told me before :)
    --->>> " [​IMG] Originally Posted by bravoo67 [​IMG]
    also you could check the plug with a looooot of cables in it on the wall in engine compartmen right by the foot breake valve with green and red air hoses..drivers side ofcourse there is a screw holding it in place but you never know :icon_smile:
    or it coudl simply be your ignition switch.. one you turn the key in

    "
    and Thank very much for your help !

    Here is the Reports from Dealer :
    ================================
    Cause : Found no power at fuse 71 and 72.
    Correction: 705-M674841- Installed driveline and check codes- has no communication with VECU.
    Found no power at fuse 71 and 72. Troubleshoot power 17A. Followed wire back and found corroded wire at 14 pin connection.
    Remove 17A from connection. Clean conn and install new male and female end.
    Confirm power- OK.
    Resecure harness and clear all codes. Check operation - All OK.
    =======================================================
    That's it :)

    Sincerely !

    AnteyV, The_Judge and bravoo67 Thank this.
  7. nasriza

    nasriza Road Train Member

    2,366
    2,039
    Feb 1, 2013
    Chicago, IL
    0
    Thank you very much for posting this the above info is going to be very helpful

  8. bravoo67

    bravoo67 Light Load Member

    252
    34
    Mar 15, 2012
    Brooklyn NY
    0
    Im glad I could help a little.. thanks for letting us know what was the problem

    best of luck

    The_Judge Thanks this.
  9. BG Towing

    BG Towing Bobtail Member

    1
    0
    Jan 26, 2016
    0

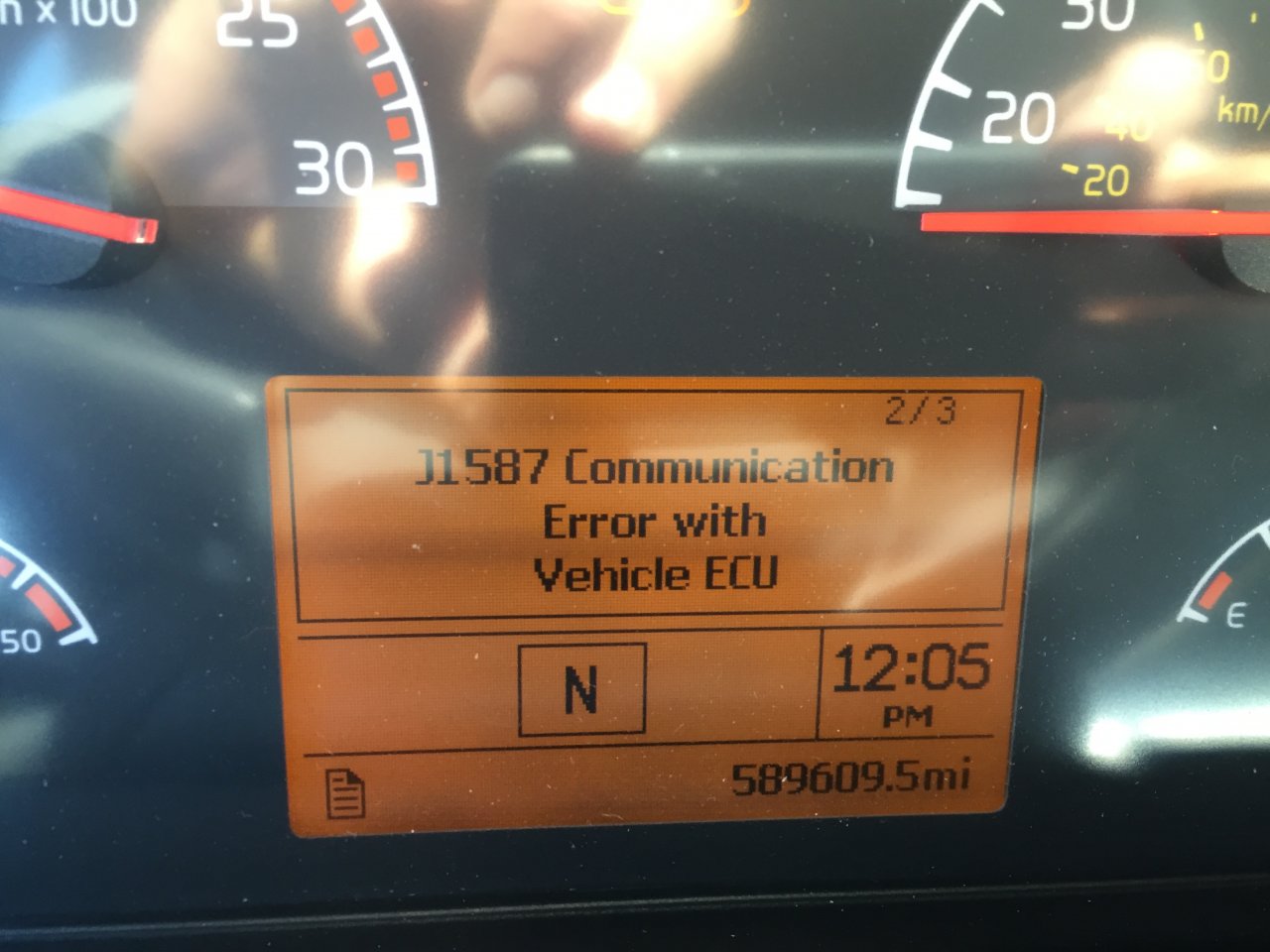

    I have the same issue. 2008 Volvo Vnl430 just would not start. Pulled all the relay switches it started then went into the j1587 error unable to communicate. Checked the fuse and unhooked the battery's. No luck.


    Attached Files:

  10. nasriza

    nasriza Road Train Member

    2,366
    2,039
    Feb 1, 2013
    Chicago, IL
    0
    make sure there is power coming to the vehicle ecu, check to make sure you have proper power at all fuses

  11. Socal Xpress

    Socal Xpress Road Train Member

    1,855
    1,957
    Dec 6, 2014
    Los Angeles, Ca
    0
    BG towing

    Did your truck come.with a battery cutoff switch? I have had the same issue that you describe but it would always go away months on end. I finally replaced the cutoff switch and made a world of difference on my electical gremlins.
