Stud pilot vs. Hub pilot

Discussion in 'Trucks [ Eighteen Wheelers ]' started by olpa77, Apr 28, 2013.

  1. olpa77

    olpa77 Light Load Member

    Messages:
    65
    Thanks Received:
    10
    Joined:
    Apr 9, 2011
    My truck is needing new brakes, s-cams, and s-cam bushings. I have to pull the hub off to do this so I am going to do bearings as well. My truck currently has stud piloted wheels. Since I am in the market for some new rims and tires would it be worth it to buy new hubs and rims and converting it over to a hub pilot wheel? Are there any advantages between the two or would it just be wasted money? Thanks in advance!

  2. eeb

    eeb Heavy Load Member

    Messages:
    731
    Thanks Received:
    258
    Joined:
    Mar 24, 2013
    I definitely prefer hub piloted rims, when I was a mechanic at a truck shop I saw many more problems with broken studs and lugnuts with stud piloted wheels.

  3. eeb

    eeb Heavy Load Member

    Messages:
    731
    Thanks Received:
    258
    Joined:
    Mar 24, 2013
    If you have to replace a lugnut, hub pilot lugnuts will be the same for the whole truck, while stud pilot requires different nuts for inside or outside, left or right, and the inner lugnuts vary based on length of stud and aluminum or steel wheels, less likely for a T/S to have the right one in stock.

    olpa77 Thanks this.
  4. carrkool

    carrkool Heavy Load Member

    Messages:
    883
    Thanks Received:
    472
    Joined:
    May 10, 2012
    Location:
    adah, pa
    The advantages are easier to upbolt and rebolt hub pilot wheels. Your looking at having to buy 6 hubs 10 wheels all the nuts. its not a hard job to do, but you have to make sure you get the correct hubs for your housings. I have changed a lot of bud and Dayton hubs over to hub pilot. though truth be told a common misunderstanding is that hub pilot our self centering when in fact as I learned from working in a tire shop dealing with it everyday they do not center themselves out. that's why they make centering pins for when mounting the wheel on to the hub.

  5. Pablo-UA

    Pablo-UA Road Train Member

    Messages:
    7,140
    Thanks Received:
    1,314
    Joined:
    Oct 11, 2010
    Location:
    Borispol, Ukraine
    sometimes alloy rims gets seized on hubs and it is so hard to pull them. so experienced drivers use anty seiz spray

    olpa77 Thanks this.
  6. olpa77

    olpa77 Light Load Member

    Messages:
    65
    Thanks Received:
    10
    Joined:
    Apr 9, 2011
    I have been calling around to see how much the new hub cost and no one knows what type I need. One shop told me that many Con-Met hubs were interchangeable, you just have to change the studs over. I have Con-Met hubs (part #cm 102314 or newer # 10001348 ) how does one tell if my hubs are interchangeable?

    Last edited: Apr 28, 2013
  7. carrkool

    carrkool Heavy Load Member

    Messages:
    883
    Thanks Received:
    472
    Joined:
    May 10, 2012
    Location:
    adah, pa

    that's a BIG NO NO these days. Aint aeiz can get you a red tag out of service and can also void a warranty on tires and rims should you have one. it does not allow the rims to be properly tightened. only allowed to use a drop or two of oil or penetrating oil. NO AINTI SEIZE any more....sorry...learned that the hard way

    olpa77 Thanks this.
  8. olpa77

    olpa77 Light Load Member

    Messages:
    65
    Thanks Received:
    10
    Joined:
    Apr 9, 2011
    .......... *

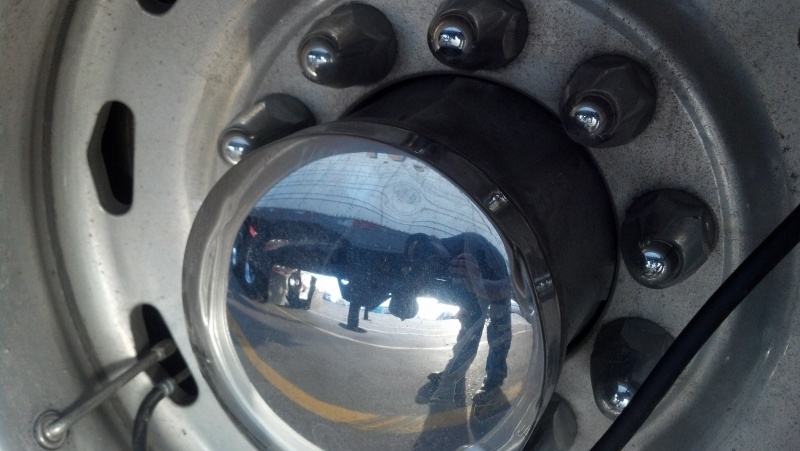

    Attached Files:

    Last edited: Apr 28, 2013
  9. olpa77

    olpa77 Light Load Member

    Messages:
    65
    Thanks Received:
    10
    Joined:
    Apr 9, 2011
    The more I research what that parts guy told me the more I think he is full of poop. :) I think he just didn't have an answer to hub I need and told me I could swap studs. Thanks for the help everyone. God Bless!

  10. GrapeApe

    GrapeApe Road Train Member

    Messages:
    1,348
    Thanks Received:
    851
    Joined:
    Jan 7, 2013
    Your hubs are stud pilot only, you cannot simply change the studs an run hub pilot. Got to https://vdm.conmet.com/HubCatalog/Home.html

    Click on the Functional Characteristics link and plug in the info you need to get a good part # for a hub that will work. You can use the look up a con-met part # link to get the critical info from you current hubs to use in looking for a hub pilot hub. When you get hub pilot part #, you can use the compare 2 parts #'s link to look at all the specs side by side to verify that it'll work, you want the same bearings, ABS, Axle mounting, ect.

    Once you get a good #, you can cross that to other brands if you wish.

    olpa77 Thanks this.
