06 ddec 5 12.7 Series 60 code help!!!

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by Y-L, Nov 17, 2021.

  1. Nov 17, 2021 #1
    Y-L

    Y-L Light Load Member

    90
    50
    Oct 1, 2013
    0
    Hello
    06 ddec 5 12.7 I got this code off a scan gauge. Can u please tell me what it is and the cure is.

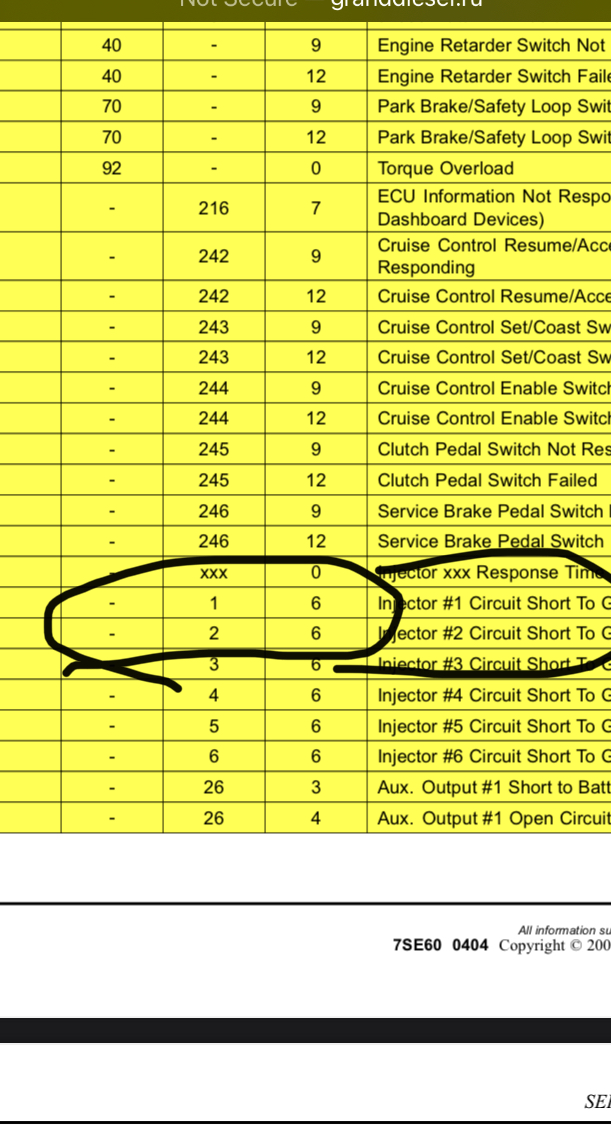

    Pic below of code.
    TIA


    Attached Files:

    Y-L, Nov 17, 2021
    Y-L, Nov 17, 2021
    #1
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Nov 17, 2021 #2
    Y-L

    Y-L Light Load Member

    90
    50
    Oct 1, 2013
    0
    Anyone?

    Y-L, Nov 17, 2021
    Y-L, Nov 17, 2021
    #2
  4. Nov 17, 2021 #3
    Don379

    Don379 Heavy Load Member

    714
    1,285
    Jan 7, 2021
    0
    The first number 1 just says the current selected code
    The ID 1 according to a quick google detroit and scan gauge says "There is no sensor assigned to this value"
    THE FM 3 according to your user manual page 38 says "Voltage above normal or shorted high"
    The CNT 1 is just the amount of times it was detected.
    PRobably a lose wire and only detected once somewhere but good luck with that and i would just clear the codes and continue on my way

    Don379, Nov 17, 2021
    Don379, Nov 17, 2021
    #3
    Y-L Thanks this.
  5. Nov 17, 2021 #4
    Y-L

    Y-L Light Load Member

    90
    50
    Oct 1, 2013
    0
    On another search showed injector 1.
    Thanks for the reply.

    Y-L, Nov 17, 2021
    Y-L, Nov 17, 2021
    #4
    Don379 Thanks this.
  7. Nov 18, 2021 #5
    little cat 500

    little cat 500 Road Train Member

    1,950
    1,004
    Jan 17, 2010
    Abbottstown PA
    0
    Thats not a injector code

    little cat 500, Nov 18, 2021
    little cat 500, Nov 18, 2021
    #5
    Y-L Thanks this.
  8. Nov 18, 2021 #6
    Y-L

    Y-L Light Load Member

    90
    50
    Oct 1, 2013
    0
    Maybe I’m reading this wrong. That’s what made me think injector.
    I’ve been dealing with low power for some time now.


    Attached Files:

    Y-L, Nov 18, 2021
    Y-L, Nov 18, 2021
    #6
