11.1 S60 Detroit metal in oil, bull gear bearing?

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by dieselfuelonly, Aug 5, 2020.

  1. Rideandrepair

    Rideandrepair Road Train Member

    12,371
    37,353
    Aug 8, 2015
    0
    Reminds me of the old transmission shop oil change special, they show you a normal pile of shavings, and declare you need a new trans.

    SmallPackage Thanks this.
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. SmallPackage

    SmallPackage Road Train Member

    2,597
    7,218
    Dec 20, 2019
    Marion Texas
    0
    The thing that makes you question the Camaro/Vette rears is it only holds just a little less than a qt. So not alot of oil. Made it look like it had more shavings then oil in it.

    On the inframe thing I’ve never believed there is any way to get everything cleaned out. Too many places for things to hide. What you don’t see won’t hurt you till you find it on the plug or bottom of the pan later. Than it’s a day or two of agonizing over what you did to cause it. I was asking myself did I get it too hot and break the rings? Those 250’s will pull 1200-1300 degree pyro’s easy. Did I lug it?
    I’d cut the filters open and check for metal. That’s what I did to finally roll with it and not stress on pulling it apart. I found nothing but oil in the fiters.

    Rideandrepair Thanks this.
  4. dieselfuelonly

    dieselfuelonly Road Train Member

    2,475
    5,076
    Nov 12, 2012
    Chapel Hill, NC
    0
    Got the other mechanic here with me today, so we've been searching high and low with no luck. Turbo had a lot of play on the compressor side bearing definitely wore out, got a new one on the way. But not the source of the big chunks for sure.

    Everything looks ok under valve cover. Removed as many of the panels from the front cover and the PS pump and spun it all around everything we can see looks okay.

    Down below all looks good as well .. frustrating! Guessing that I'll pull the compressor next. Other mechanic sent me this picture I didn't know he had of a different view of the original big chunks.

    [​IMG]

    Rideandrepair Thanks this.
  5. jamespmack

    jamespmack Road Train Member

    15,821
    178,263
    Mar 25, 2014
    OH
    0
    Just remember how many gears and bearings are in the front cover. No way to check all of them without removing it.

  6. Rideandrepair

    Rideandrepair Road Train Member

    12,371
    37,353
    Aug 8, 2015
    0
    That picture makes me wonder if it could be from the compressor itself. I’m reminded of the T/A tech who backed the oil fill cap, off too far, causing the nut and washer to fall inside the engine. Brand new Truck, first oil change, on the weekend. They told the Owner, he had to wait till Monday. Those pieces look like the big washer,

  7. AModelCat

    AModelCat Road Train Member

    22,665
    107,676
    Jul 7, 2015
    Canuckistan
    0
    One guy on here had a compressor bearing go out. He posted pictures of the damage. @jamespmack do you remember who? I think they posted it in 5 a long time ago.

    Rideandrepair and jamespmack Thank this.
  8. jamespmack

    jamespmack Road Train Member

    15,821
    178,263
    Mar 25, 2014
    OH
    0

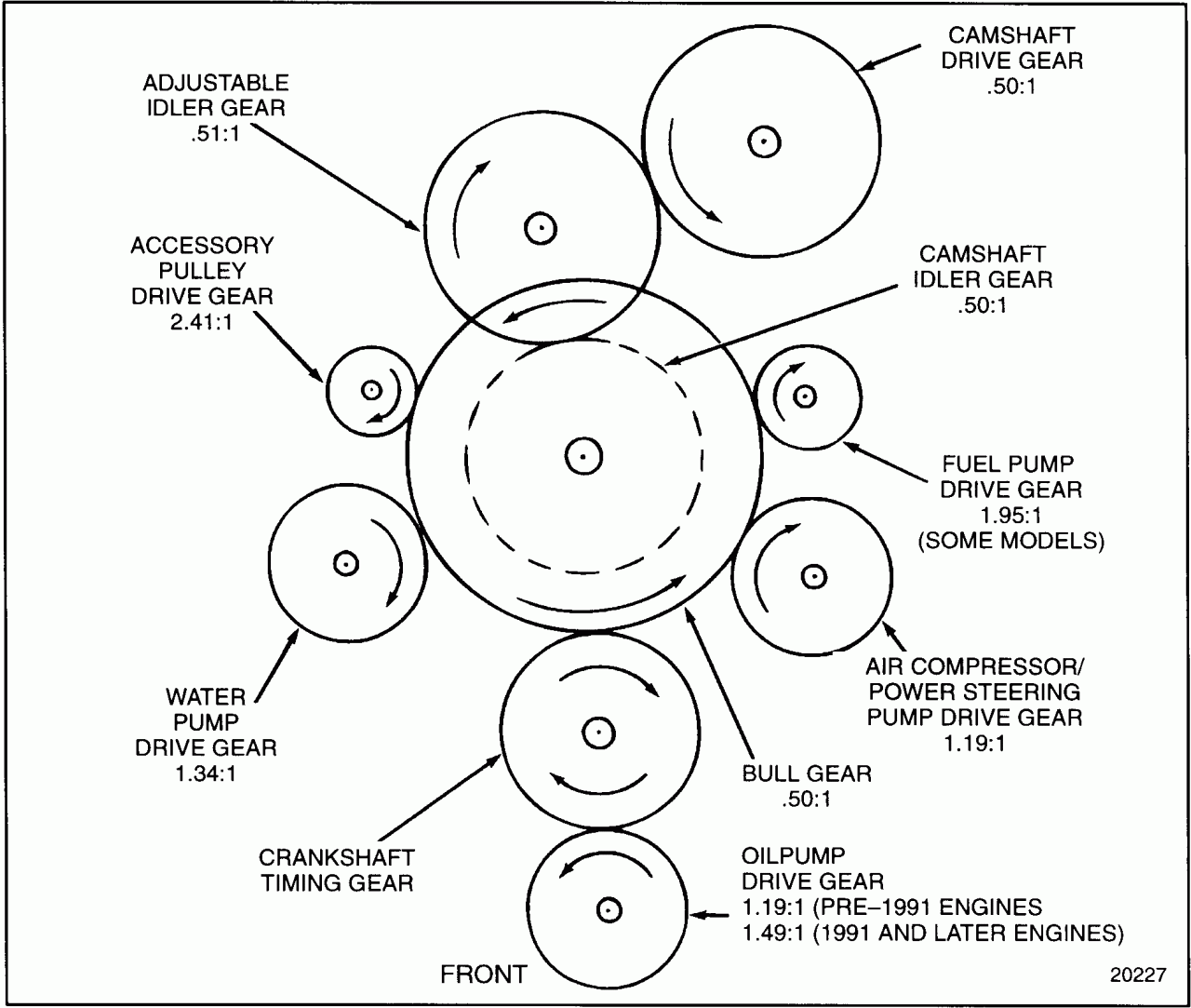

    Not off hand. It could be p/s, air comp, water pump, access drive hub, bull gear, adjustable tensioner gear, idle gear.

    Remove each one and inspect it. Plus look straight down on housing for metal.

    I would say a oil sample would help. But we are to late for that party.

    Remove acc drive, check back lash with dial indicator, then pry it in and out looking for movement

    Rideandrepair Thanks this.
