13 speed splitter problem

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by zeljkorikverc, Mar 30, 2020.

  1. Dave1837

    Dave1837 Road Train Member

    1,177
    3,600
    Nov 16, 2019
    Pennsylvania
    0
    Best of luck, I don't know too much about how they work, just how they shift. If it's banging when you split the gear then it's definitely something internal. Now it's starting on another gear, hopefully it doesn't ruin the trans. I'll ask around to some mechanics at my work to see if they've heard of this happening and see if they can help

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Bean Jr.

    Bean Jr. Road Train Member

    5,001
    8,505
    Mar 30, 2014
    0
    I've been told or read that you don't preselect a split on an RTLO for this very reason.

  4. zeljkorikverc

    zeljkorikverc Bobtail Member

    19
    3
    Aug 18, 2018
    0
    I have been told that we are not supposed to do that with the RTO, but RTLO is good for preselect. I might have been misinformed but the strange thing is that it happens just sometimes in 5th gear.
    And I agree that if I'm not supposed to preselect when I go from 5H to 6L that might happen, but why does it make a bang when I go from 5L to 5H. I don't know how else to shift that except flicking the switch and releasing the pedal...

  5. DmitriyKW

    DmitriyKW Bobtail Member

    47
    65
    Feb 10, 2015
    Sacto, CA
    0
    My tranny does same thing and as far I understand me and you need to take transmission out and fix that, I'll do that when I'll be changing clutch. What I do is if you in 5L going to 5H first take it out of gear flip splitter to HiGH and put back in 5 gear I shift like for past year this is Only the way to do it smooth, otherwise you going to destroy your tranny. So that's how I shift on each gear that does that. Easy! Try, n let us know!

    speedyk Thanks this.
  6. Chubby Fly

    Chubby Fly Medium Load Member

    569
    789
    Nov 25, 2019
    0

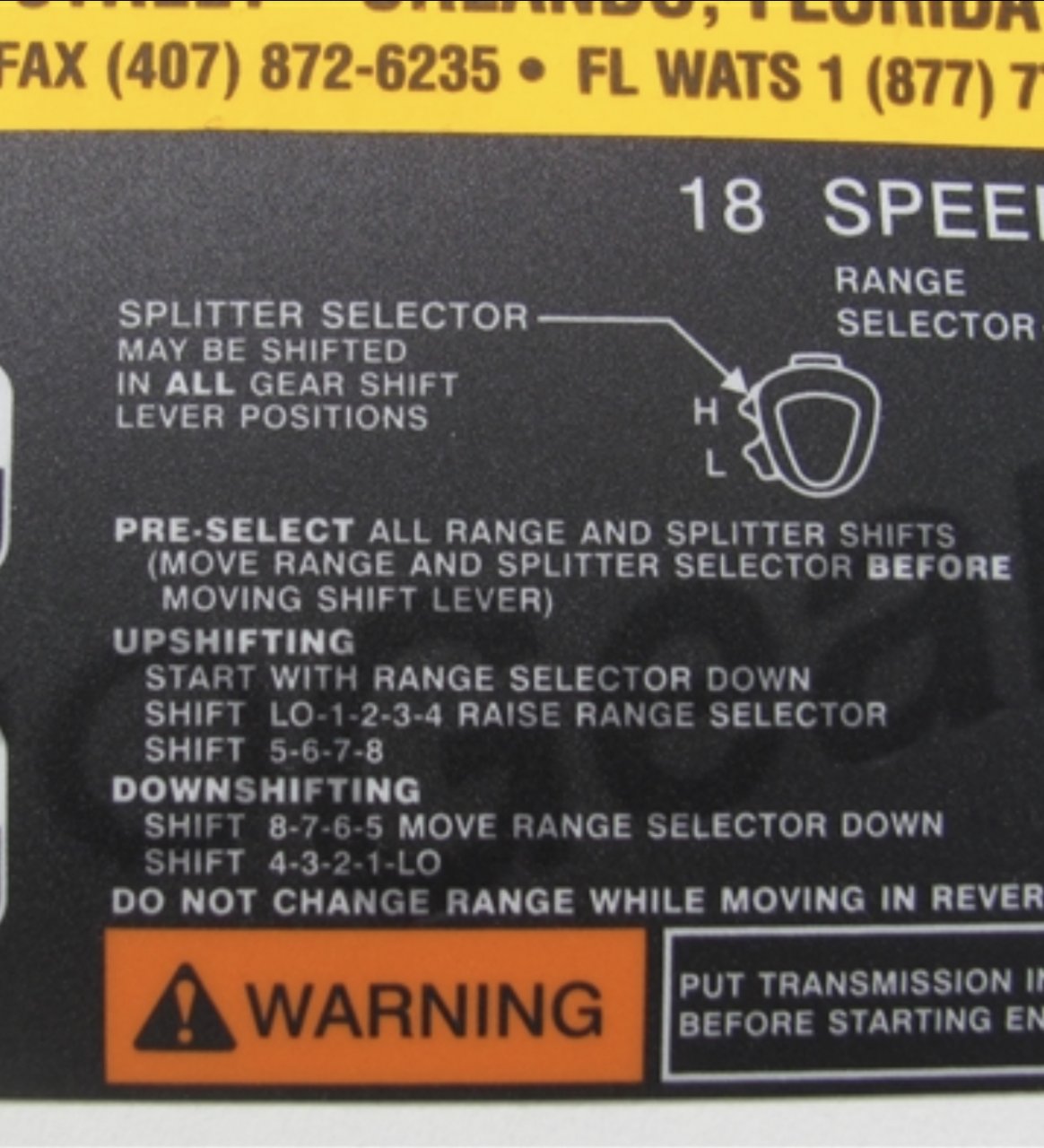

    Hey bean. All 13 and 18 speeds rtlo have Always required preselect or you risk severe damage.

  7. zeljkorikverc

    zeljkorikverc Bobtail Member

    19
    3
    Aug 18, 2018
    0
    You are right, that is other way to do it without getting the bang but I don't think they designed it to shift that way...
    I already paid shop to fix this problem by rebuilding it so it's under the warranty everything they have to do from now on... and they are willing to pull it out again but my concern is that if they didn't find the problem first time, they won't find it now either

    And now that you said you have the same problem I feel a little better, every time I would try to explain someone that I have a problem and what it does they would look at me like I'm crazy and don't know how to drive... I grew up in trucks, driving them and fixing them all the time, I did everything from engine rebuild to brakes except for transmission, my friend broke his arm and almost got killed with transmission so I avoid that...

  8. Chubby Fly

    Chubby Fly Medium Load Member

    569
    789
    Nov 25, 2019
    0
    That’s the only way to drive the truck unless you want to break it. I own a 18 speed pete

  9. zeljkorikverc

    zeljkorikverc Bobtail Member

    19
    3
    Aug 18, 2018
    0
    That's how I'm doing it, thank you for confirming that I'm doing it right.

    Chubby Fly Thanks this.
  10. Chubby Fly

    Chubby Fly Medium Load Member

    569
    789
    Nov 25, 2019
    0
    How did he almost kill himself? That’s careless and it’s no dangerous then working on anything else if you do it properly. Strap the trans to jack and don’t force the trans back in

    401-Alex Thanks this.
  11. zeljkorikverc

    zeljkorikverc Bobtail Member

    19
    3
    Aug 18, 2018
    0
    He was doing it all by him self and he isn't a very careful guy, I'm not sure exactly how that happened but he was hurt bad and couldn't work at all for months...
