1800 watt Inverter drained battery while driving?

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by Xenergiserx, Sep 15, 2021.

  1. Xenergiserx

    Xenergiserx Light Load Member

    80
    51
    Feb 2, 2021
    0

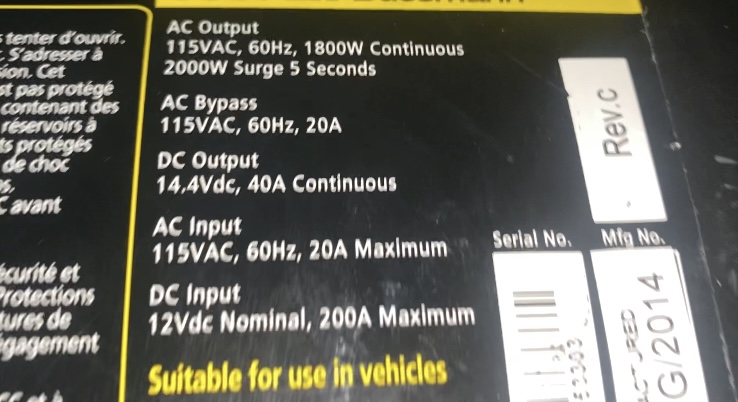

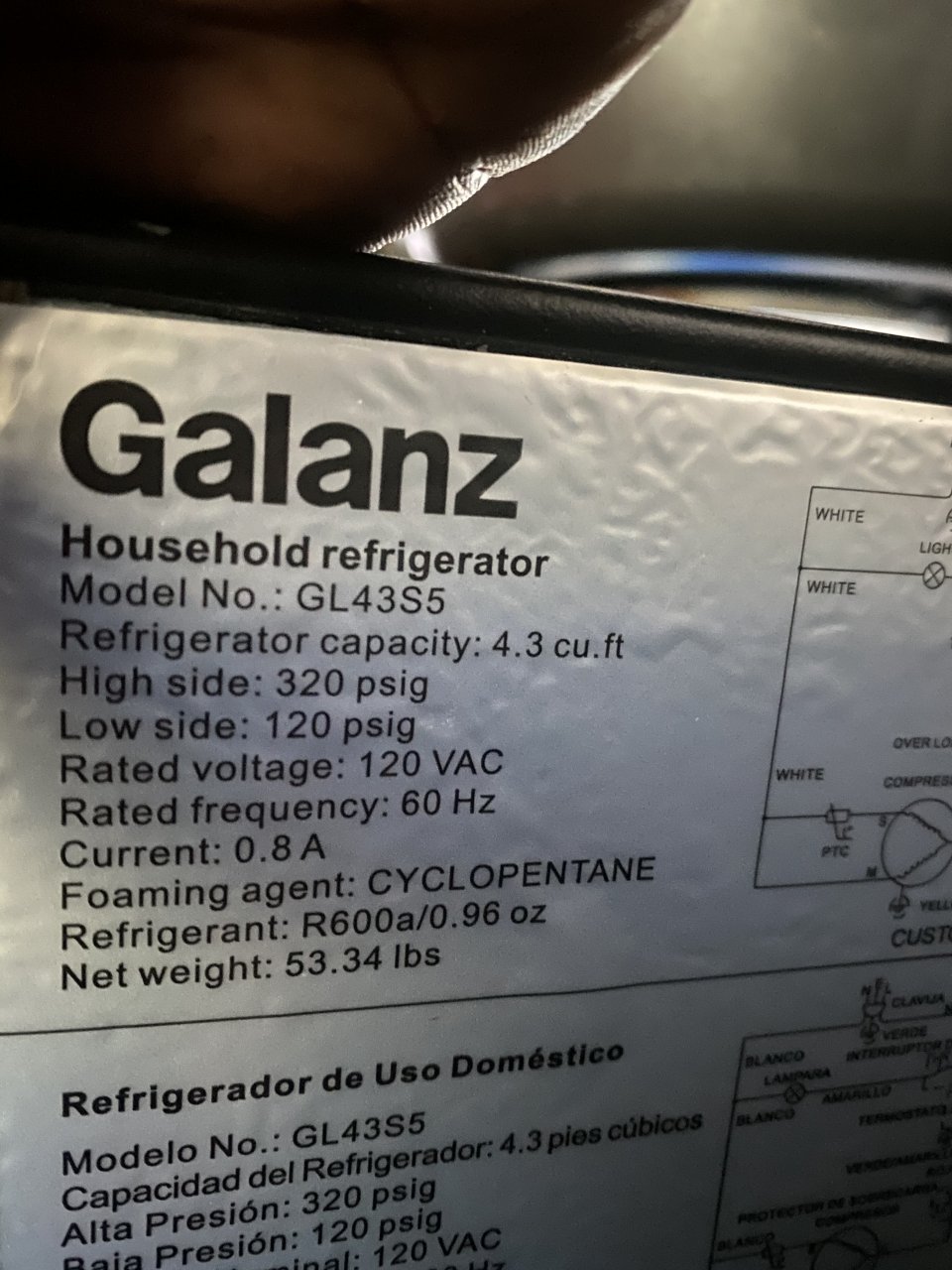

    I got a small fridge I’ll put specs below , my inverter is 1800w. 2000w surge. Then I drove 400 miles and now truck won’t turn start sound like dead battery. I’m in Indio California at Love truck stop.

    what you guys think
    Inverter is bad
    Battery are bad
    Fridge is over kill?
    Bonus question I have a electric apu.
    Can I jump star the truck with the those batteries?


    Attached Files:

    truckdriver31 Thanks this.
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Snailexpress

    Snailexpress Road Train Member

    2,443
    5,153
    Apr 28, 2014
    Rocky
    0
    Check battery cables connections first. What is truck voltmeter readings?

    truckdriver31 and Xenergiserx Thank this.
  4. Xenergiserx

    Xenergiserx Light Load Member

    80
    51
    Feb 2, 2021
    0
    I’m on the road don’t have a voltimeter

    truckdriver31 Thanks this.
  5. subseaguru

    subseaguru Medium Load Member

    502
    840
    Sep 6, 2015
    Waco, Tx
    0
    even slightly loose battery connections will kill your batteries.

  6. Old Man

    Old Man Road Train Member

    4,310
    11,717
    Apr 3, 2009
    Oklahoma City, OK
    0
    Did you check alternator, if it’s working your batteries should not go dead.

  7. Xenergiserx

    Xenergiserx Light Load Member

    80
    51
    Feb 2, 2021
    0
    Alternator runs at 15 volts so it’s good I think batteries are not taking enough charge and the fridge was the death sentence

    truckdriver31 Thanks this.
  8. uncleal13

    uncleal13 Road Train Member

    3,455
    5,349
    Apr 9, 2009
    Humboldt, Sk
    0
    If it is 15 volts it’s overcharging the batteries.
    Should be 13.8 - 14.2 volts.
    The fridge is not enough of a load to be the problem.
    If you recently wired up the inverter then I would suspect loose wiring connections as mentioned.
    First time I wired one to truck master shut off switch. A few weeks later the truck died going over a bumpy railway crossing at highway speed while -20 outside. Fortunately I checked the last thing I did, one of the nuts on the shutoff switch was loose.

    Xenergiserx and truckdriver31 Thank this.
  9. Old Man

    Old Man Road Train Member

    4,310
    11,717
    Apr 3, 2009
    Oklahoma City, OK
    0
    If it’s running at 15v, and can’t keep up something should be hot.
    Look at the batteries, are any swollen, do you smell rotten eggs. A bad battery can suck all the power.

    Magoo1968 and truckdriver31 Thank this.
  10. Xenergiserx

    Xenergiserx Light Load Member

    80
    51
    Feb 2, 2021
    0
    They were full of that white acid dust one of the poles I managed to find somebody to give me a boost. Then I was like let me clean it. And truck died when I pull on of the terminals. I’m a freaking dumb,axx . Can it be the alternator? Or should I go buy new batteries? I know that this truck had used batteries when I bought it a year ago

  11. Six9GS

    Six9GS Heavy Load Member

    962
    2,087
    Dec 3, 2012
    Yuma, AZ
    0
    Sounds like a bad battery(s). Both high heat and severe cold are hard on batteries. If you're in Indio, heat could be hurting them. I live in Yuma Arizona, I have plenty of experience with heat causing battery issues.
