1985 kenworth w900b project

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by Adisiwaya, Apr 9, 2024.

  1. Gilbyson

    Gilbyson Bobtail Member

    24
    46
    Apr 26, 2012
    Wyoming
    0
    Never let a tranny overhaul your transmission.

    Opus and Deere hunter Thank this.
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Adisiwaya

    Adisiwaya Light Load Member

    246
    315
    Mar 25, 2017
    0
    Can anyone tell me difference between a rto12513 vs rto 14613 speed tranny? I have the old k100 tranny still was thinking slapping it in the w900 till i get the other tranny.

    ALSO is there a length difference between the 13 speed eatons? I am tempted of pulling the one from the peterbilt which is only a year or two old to put in the w900

    Im without a truck till something is figured out. So trying weigh my options as the one rep isnt much on eta dates...

    Oxbow Thanks this.
  4. Adisiwaya

    Adisiwaya Light Load Member

    246
    315
    Mar 25, 2017
    0
    Shop got the warrantied reman tranny in.... are these supposed to whine really loud in the high end after splitting? Been 5 plus years I just don't remember

    Magoo1968 Thanks this.
  5. Adisiwaya

    Adisiwaya Light Load Member

    246
    315
    Mar 25, 2017
    0
    3rd load with the ole girl still have a bunch to fix but road legal and dot passed. Snapchat-2133280704.jpg

    NightWind, Isafarmboy, 260REM and 5 others Thank this.
  6. MACK E-6

    MACK E-6 Moderator Staff Member

    46,613
    206,131
    Sep 19, 2005
    Baltimore, MD
    0
    Truck looks good. :)

    Sorry about the transmission problem.

    Sons Hero, Oxbow and Adisiwaya Thank this.
  7. LameMule

    LameMule Road Train Member

    1,110
    7,013
    Jan 19, 2020
    Montana
    0

    Adisiwaya and Oxbow Thank this.
  8. circle h

    circle h Light Load Member

    235
    344
    Oct 22, 2020
    0
    The new transmission should not be whining real loud as long as the driveline angles are correct. I had a top gear noise I fought for a bit until I learned how to set my leveling valve correctly. I always measured from the bottom of the frame to the welded seam on my axle. Then I read somewhere to measure bottom of frame to floor and the dimple in the end of the axle to the floor and subtract. I had been off by half an inch. That half inch made my transmission quiet in top gear. 2004 w900b

    Adisiwaya Thanks this.
  9. wore out

    wore out Numbered Classic

    14,480
    175,474
    Jun 5, 2013
    CHASIN THE DEVIL'S HERD
    0
    The 12513’s were straight cut gears and could get noisey. The earlier 14613’s were to I think. The later ones I know were helical and quieter. However all the 14613’s I ever had were noisey in the overdrive position of the splitter. The main 3 gears needed replaced in a set too or they were noisey.

    Oxbow, Deere hunter, Magoo1968 and 2 others Thank this.
  10. Adisiwaya

    Adisiwaya Light Load Member

    246
    315
    Mar 25, 2017
    0

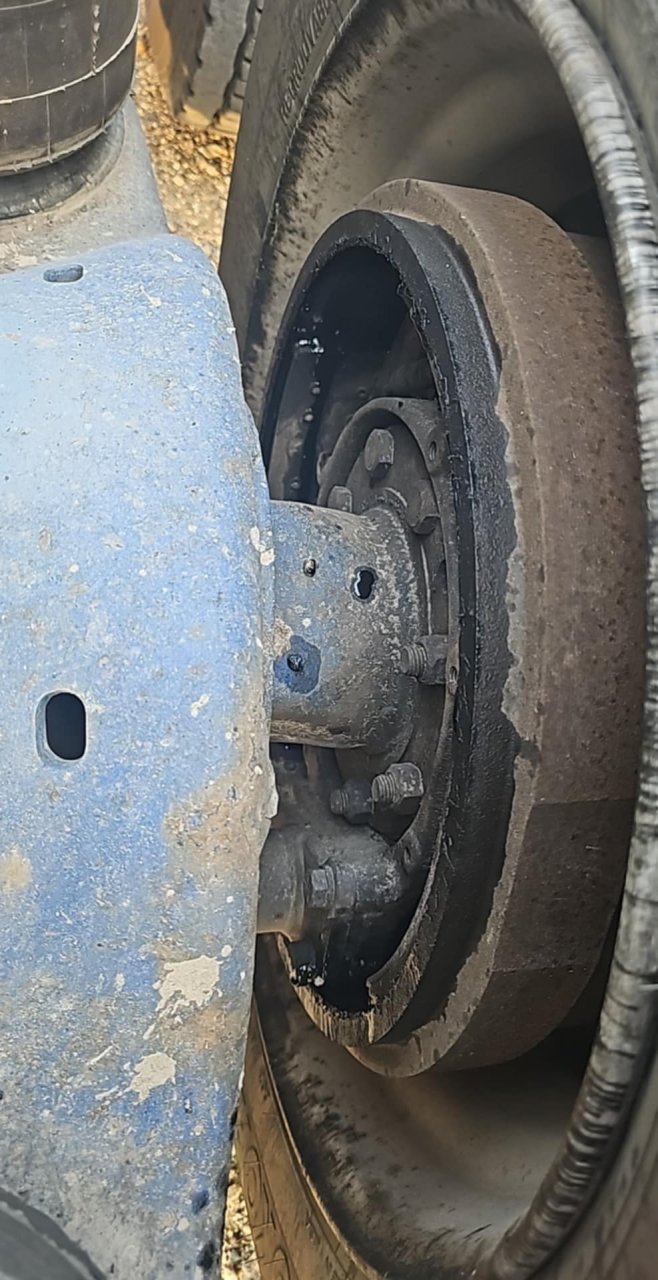

    Had the fun experience of learning to change wheel seal before being loaded. Learned from going out west you carry parts and tools to do about anything. But from that issue it's the last pig load up there I guess. Which is fn dumb but that's trucking. Pto being installed next week.

    Thanks for the transmission pictures and the advice. I look at my bag height this weekend and look at the angle of my 4 driveshafts as well.

    Messenger_creation_f128fff1-32d9-44c1-b124-860d6f5bc39c.jpg Snapchat-1051188688.jpg

    NightWind, Magoo1968, LameMule and 2 others Thank this.
  11. Star Rider

    Star Rider Road Train Member

    1,074
    8,269
    Sep 23, 2019
    Michigan
    0
    Make sure the rear end vents aren't plugged up after sitting for so long or you'll be doing it again.
