2006 International 4300 DT466 - ICP valve removal

Discussion in 'International Forum' started by cprems, Oct 28, 2021.

  1. cprems

    cprems Light Load Member

    97
    40
    Sep 17, 2018
    0
    What tool do you use to remove the ICP valve (sensor) I'm trying to find the correct tool without resorting to brute force and vice grips. Any help appreciated.

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Flint1

    Flint1 Medium Load Member

    666
    5,579
    Sep 4, 2019
    Alberta
    0
    IPR injection pressure regulator (on the back of the high pressure oil pump) or ICP injection control pressure sensor under the valve cover on the oil rail?

    IPR I just slide an open ended wrench on from the rear, they are not that tight. If you have an air compressor that may compliate things.
    ICP sensor just a normal norman wrench.

    Last edited: Oct 28, 2021
    cprems Thanks this.
  4. cprems

    cprems Light Load Member

    97
    40
    Sep 17, 2018
    0
    What sized wrench for the ICP sensor? Having a hard time finding one that'll fit in the tight space. I've already replaced the IPR and that was fairly simple and straight forward.

  5. Flint1

    Flint1 Medium Load Member

    666
    5,579
    Sep 4, 2019
    Alberta
    0

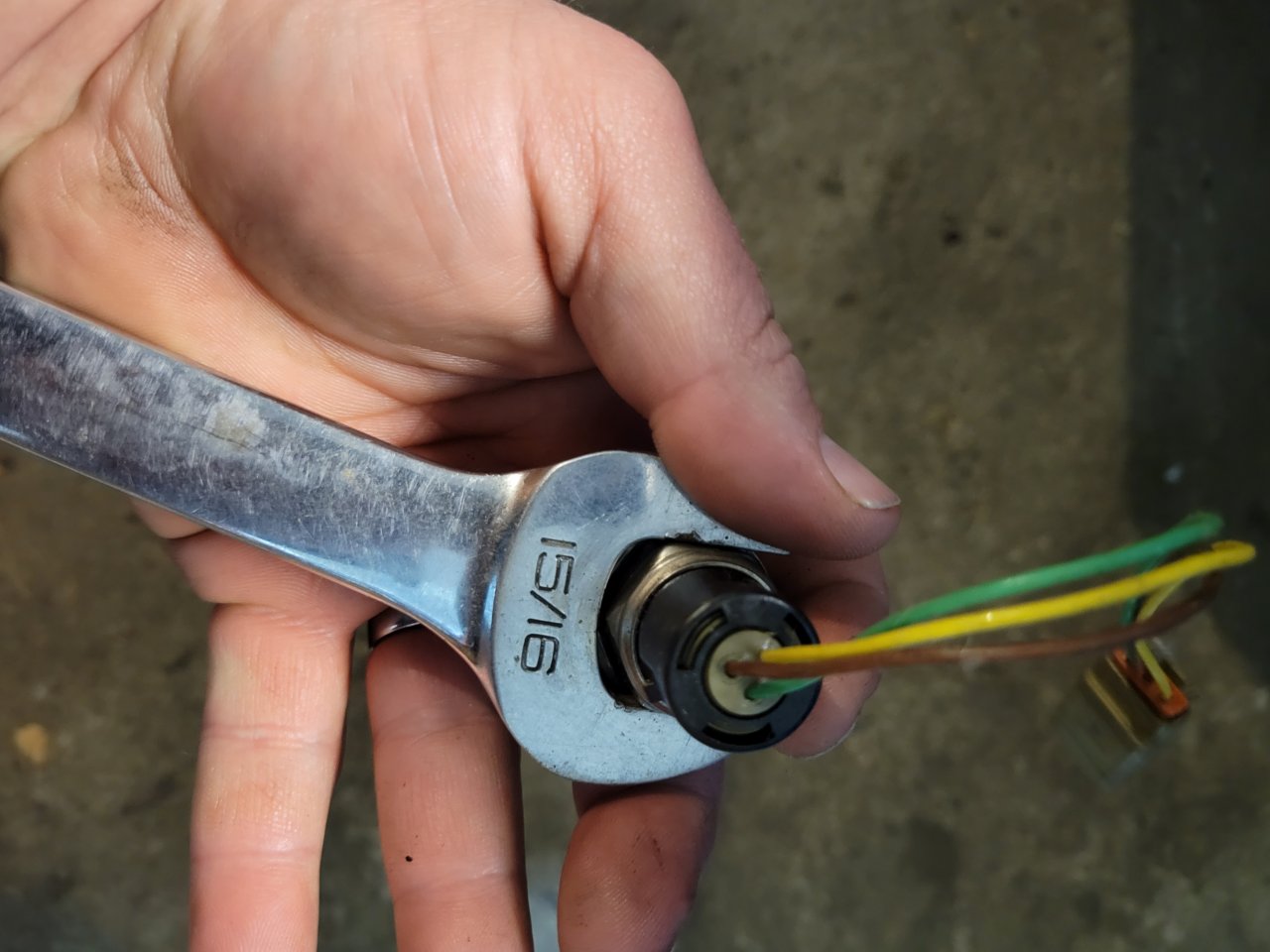

    Is this a egr engine? This is a ICP sensor from a 2005 dt466. Its under the valve cover, screwed into the oil rail.
    20211028_201926.jpg 20211028_201903.jpg

    cprems Thanks this.
  6. ChuckMartel

    ChuckMartel Light Load Member

    137
    79
    Jan 22, 2021
    0
    Yes it’s a 15/16. I have an old wrench I cut down so it fits better.

    cprems Thanks this.
  7. cprems

    cprems Light Load Member

    97
    40
    Sep 17, 2018
    0
    Thanks Y'all. I really appreciate all the help.

    Flint1 Thanks this.
  8. cprems

    cprems Light Load Member

    97
    40
    Sep 17, 2018
    0
    I have an 06 EGR engine. Thanks for the pics. I appreciate it.

    Flint1 Thanks this.
  9. Inderjit

    Inderjit Medium Load Member

    328
    361
    Sep 17, 2017
    0
    I think you are referring to the IPR valve. I have used a 1 3/8" open end wrench but
    its a struggle some times and the discharge line has to be removed from the compressor.
    Snap-On makes a Socket for removing the IPR. It is a 1 3/8" 3/8" drive socket with a slot
    to clear the connector.

    cprems Thanks this.
  10. cprems

    cprems Light Load Member

    97
    40
    Sep 17, 2018
    0
    You helped me out with the IPR valve a few months back. I got that replaced and I really appreciate the help you gave me.

  11. Inderjit

    Inderjit Medium Load Member

    328
    361
    Sep 17, 2017
    0
    I'm glad I was able to help!!
