I just ordered a Uniden 980 SSB bearcat. Looking to replace the stock antenna on the Peterbilt. The governor on my truck is pretty low and sometimes when I'm ####-chatting with another driver they'll go way out of range because I can't keep up with them LOL. What is a good antenna recommendation to utilize in the stock location on these trucks? At the time I'm not looking to add an amplifier just want solid system.
2019 Peterbilt 579 antenna location?
Discussion in 'Trucking Electronics, Gadgets and Software Forum' started by Hathcock, Jun 8, 2019.
-
-
Trucking Jobs in 30 seconds
Every month 400 people find a job with the help of TruckersReport.
-
If you want a solid system then put in your own coaxial along with a good antenna, I like the Wilson 2000 or a Francis.
-
Will I have to cut the antenna a good bit for it to work for my truck? -
Where is the antenna mounted?

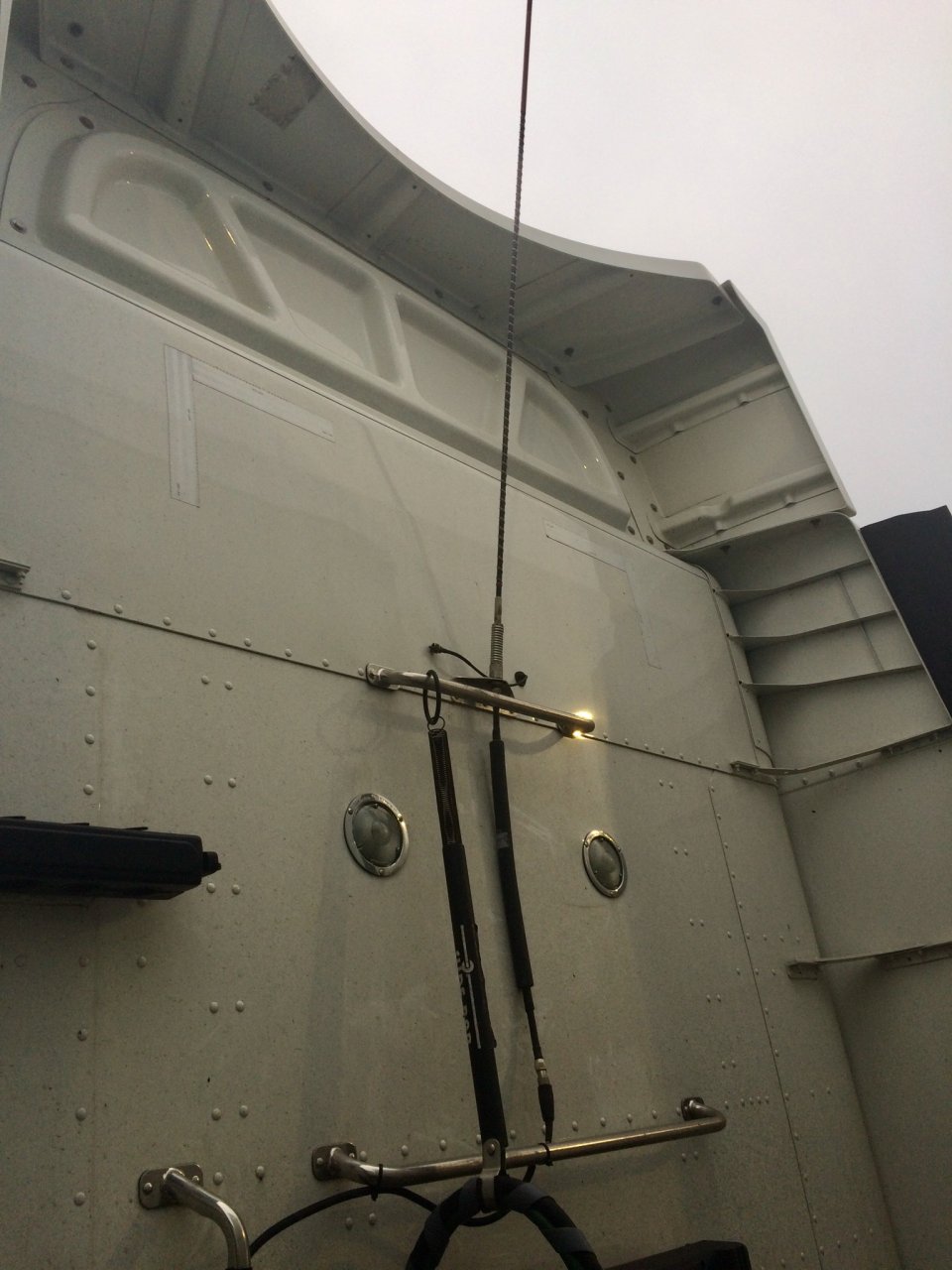

Back of cab? Then it requires a top load antenna.
If so, you want:
1). 5’ Skipshooter
2). SS spring
3). TOP GUN TEC Mount stud
This will get above a van by 4” plus. I’ve had no problem with it 90k miles.
You should also add:

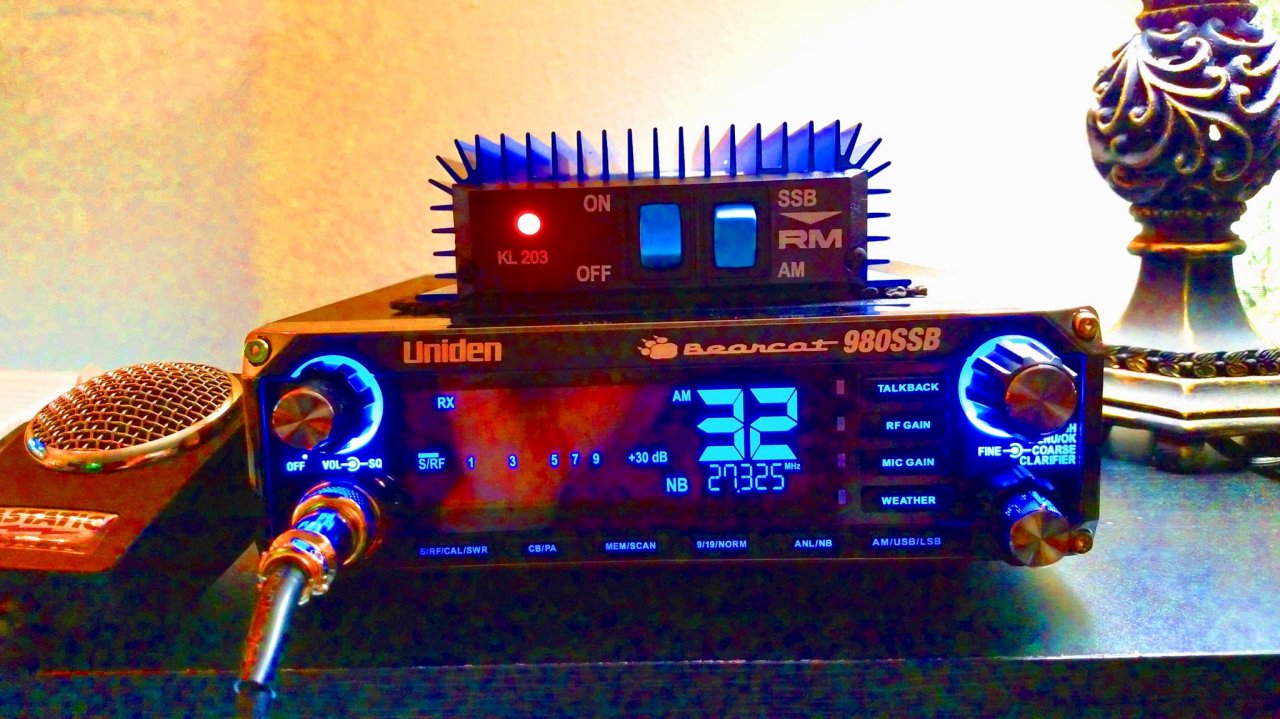

4). RM ITALY KL203 amp that will run with the radio off the 15A factory binding posts.
75W for $75 off eBay
The final piece of gear is:
5). WEST MOUNTAIN RADIO CLEARSPEAKER
has variable digital signal filtration (as used on high dollar Amateur radios) to clarify weak signals. Perfect for SSB also. $199 (this is a life-changer it’s so good).
This setup will outperform every $500 Big Radio out there with the 980 you have.
I ran RG8X Coax thru an existing hole in sleeper and draped it high up to the factory cubby hole.

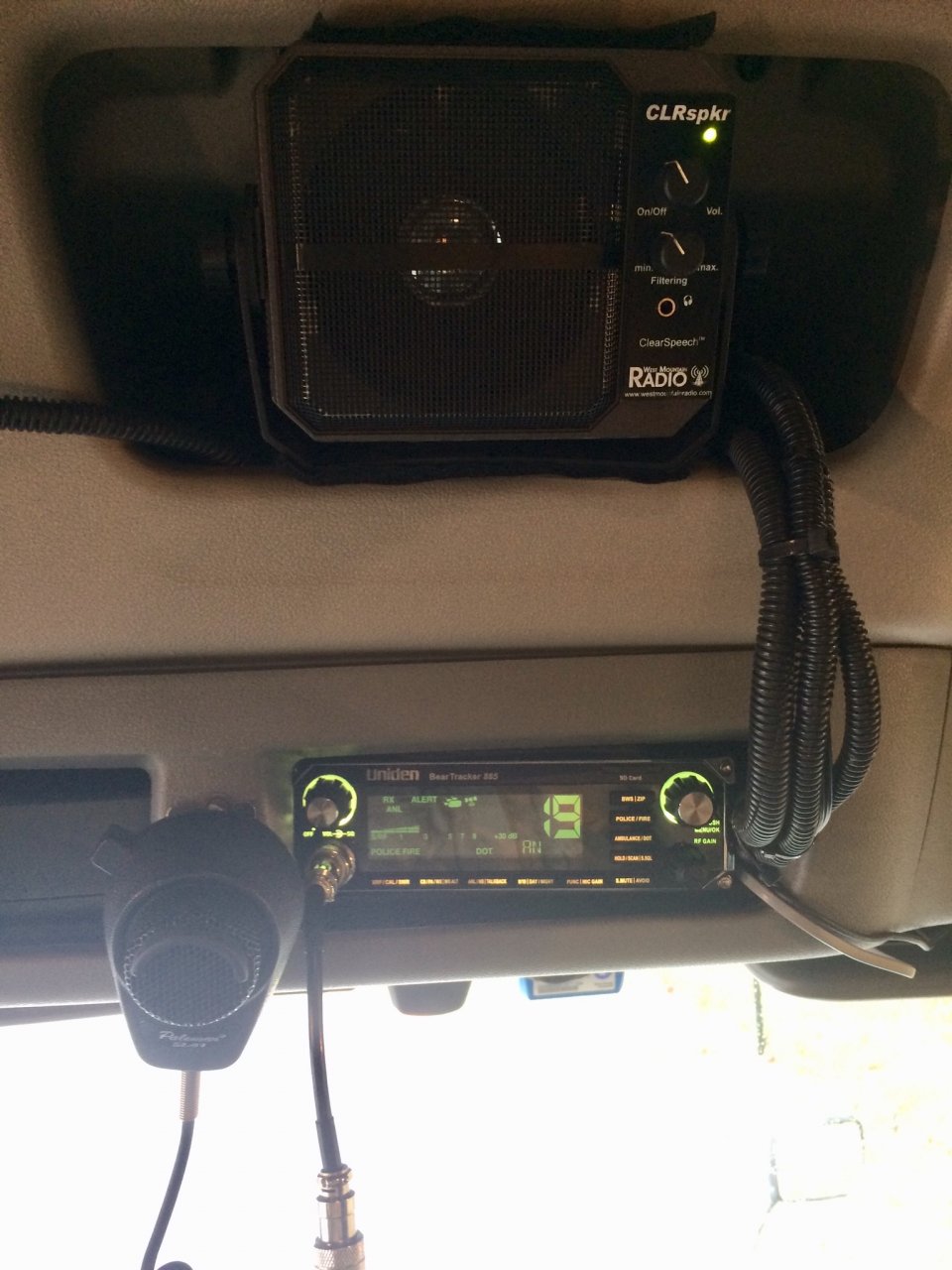

I’m currently running a UNIDEN 885 Hybrid CB/Scanner as shown.
Set SWR with separate meter, plug in the rest and go. No need for tech to mess with anything unless he has — and can use — an antenna analyzer.
.Last edited: Jun 9, 2019
Hathcock Thanks this. -
-
Then stick it in a closet. Because a center-load won’t work worth beans there, unless
1). You are ALWAYS bobtail; and,
2). The other party to a conversation is ALWAYS behind you.
The 5’ Skipshooter is $25.
.
