3 'splitters' or range selectors? Huh?

Discussion in 'Peterbilt Forum' started by charliemmann, Mar 26, 2018.

Page 1 of 2
  1. charliemmann

    charliemmann Bobtail Member

    Joined:
    Mar 26, 2018
    Messages:
    1
    Thanks Received:
    0
    0
    I am sitting in a pete, i'd say around 2010 ish or so. It has the shifter of a super. Either 13 or 18. Haven't driven it yet. There is the traditional range selector, and then there is the gear splitter on the side of the shifter.

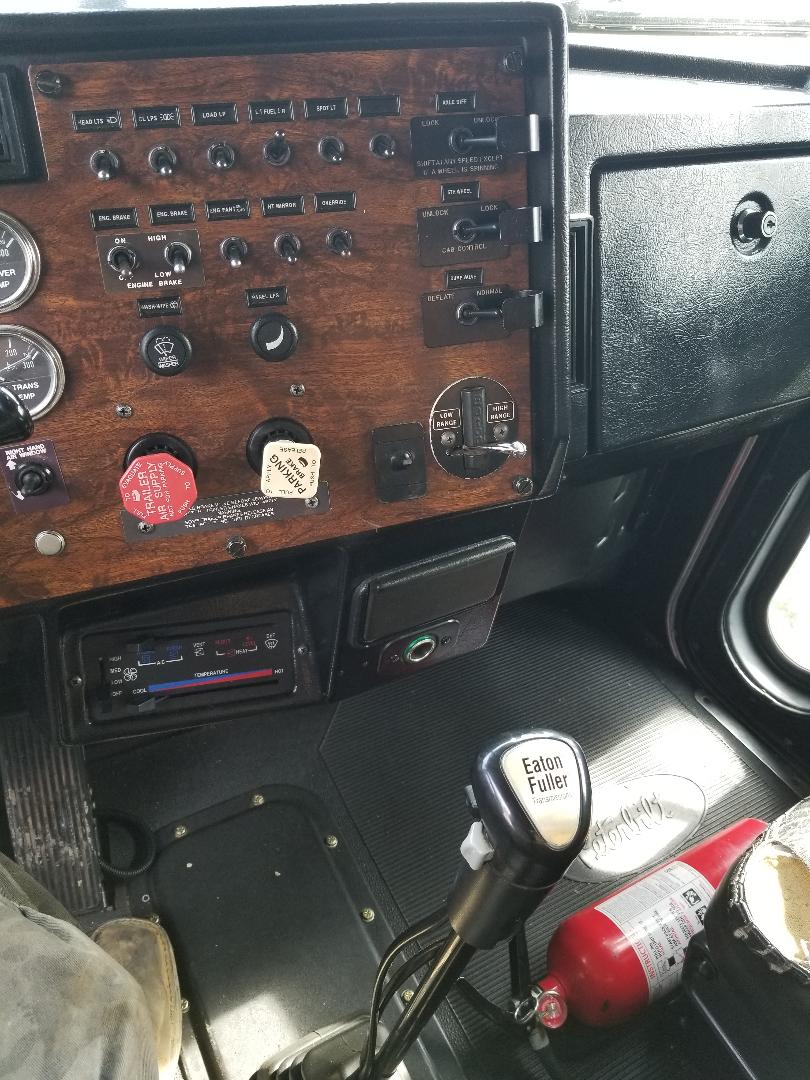

    And then, I look on the dash and see 'range selector' switch. On the dashboard. By the shifter. What? Why? Since when? pete.jpg pete1.jpg

    charliemmann, Mar 26, 2018
    #1
  2. ShooterK2

    ShooterK2 Road Train Member

    Joined:
    Dec 14, 2012
    Messages:
    5,533
    Thanks Received:
    89,470
    Location:
    Oklahoma
    0
    That ain’t no 2010. I’d say 90’s by lookin at the dash. Shift knob indicates an 18 speed.

    ShooterK2, Mar 26, 2018
    #2
    Roger McG, AModelCat, rabbiporkchop and 3 others Thank this.
  3. 86mechanic

    86mechanic Medium Load Member

    Joined:
    Sep 6, 2016
    Messages:
    372
    Thanks Received:
    62,095
    Location:
    Northridge, CA
    0
    2 speed differential maybe

    86mechanic, Mar 26, 2018
    #3
    Roger McG, RET423, Oxbow and 2 others Thank this.
  4. Crude Truckin'

    Crude Truckin' Alien Spacecraft

    Joined:
    Oct 22, 2016
    Messages:
    2,396
    Thanks Received:
    6,600
    Location:
    North Dakota, Eh?
    0
    Transmission is an 18 speed. 2 speed differential or a 2 speed aux transmission on the dash.

    Crude Truckin', Mar 26, 2018
    #4
    Roger McG, rabbiporkchop, Oxbow and 1 other person Thank this.
  5. Blackshack46

    Blackshack46 Road Train Member

    Joined:
    Jan 19, 2015
    Messages:
    3,326
    Thanks Received:
    4,250
    Location:
    Playing in the cow manure, PA
    0
    How do you know that? I dont see anything "18" anywhere. Whats the secret?

    Blackshack46, Mar 26, 2018
    #5
  6. mpd240

    mpd240 Road Train Member

    Joined:
    Sep 17, 2011
    Messages:
    1,540
    Thanks Received:
    3,623
    Location:
    Minnesota
    0
    Splitter color.

    mpd240, Mar 26, 2018
    #6
    Bean Jr., okiedokie, BoxCarKidd and 2 others Thank this.
  7. mpd240

    mpd240 Road Train Member

    Joined:
    Sep 17, 2011
    Messages:
    1,540
    Thanks Received:
    3,623
    Location:
    Minnesota
    0
    Looks like the switch on the dash is for a two speed rear end. Drove several trucks with them. Never used them.

    mpd240, Mar 26, 2018
    #7
    RET423 and Crude Truckin' Thank this.
  8. Blackshack46

    Blackshack46 Road Train Member

    Joined:
    Jan 19, 2015
    Messages:
    3,326
    Thanks Received:
    4,250
    Location:
    Playing in the cow manure, PA
    0
    Duh me. 13 is red and 8 is blue correct? Never drove an 18 speed, just 8 and 13s.

    Blackshack46, Mar 26, 2018
    #8
    Crude Truckin' Thanks this.
  9. BoxCarKidd

    BoxCarKidd Road Train Member

    Joined:
    Aug 26, 2014
    Messages:
    4,467
    Thanks Received:
    6,504
    0
    Those shift knobs all look the same to me. LL's and 15's can only shift the thumb button in low. 13's can only shift the thumb button in high. 18's can shift the thumb button in high and low.
    High and low on dash looks like 2 speed Eaton air shift axles for off road.
    Edit: I win the slow typing award.

    BoxCarKidd, Mar 26, 2018
    #9
    Crude Truckin' Thanks this.
  10. Hulld

    Hulld Road Train Member

    Joined:
    Oct 19, 2015
    Messages:
    2,883
    Thanks Received:
    6,566
    Location:
    Upstate NY
    0
    wonder if it is a deep reduction set up?

    Hulld, Mar 26, 2018
    #10
    Crude Truckin' Thanks this.
