5700 Manual Fan Clutch Switch Installation

Discussion in 'Western Star Forum' started by ShortCircuit, Jul 31, 2019.

  1. ShortCircuit

    ShortCircuit Bobtail Member

    23
    14
    May 7, 2017
    0
    I want to install a fan clutch switch in my 5700. To my understanding I need to wire it to the fan clutch solenoid to manually engage it. Can anyone please share a wiring diagram?

  2. mhyn

    mhyn Road Train Member

    4,005
    3,870
    Dec 29, 2008
    Northridge, CA
    0
    no one will have wiring diagram of you truck. each truck's wiring diagram is different and you can get it from dealer. they must run your trucks vin. I want to help you. I have never opened the door of 5700 and I don't know it has Sam modules or not. What year is your truck? That truck has SAM Cab module? If it has Sam Cab then I can tell you what to do to switch on or off the fan.

  3. ShortCircuit

    ShortCircuit Bobtail Member

    23
    14
    May 7, 2017
    0
    It’s 2017 5700XE, how can I check if I have SAM module? I have a laptop with DDDL and NexIQ interface. My only plausible plan is to wire a switch in the AC high pressure sensor, when circuit is open fan clutch is engaged. However I would like a more elegant and permanent solution without having to modify sensor wire harness.

  4. mhyn

    mhyn Road Train Member

    4,005
    3,870
    Dec 29, 2008
    Northridge, CA
    0
    2017 . has different module.
    your plan is a good one. it works on pre 2017 models . Try it.
    Just for info- CPC has not connected cavity and if you put toggle switch between ground and that cavity fan will come on after 5-8 second delay. Open DDDL and go to A&I DDEC manual, in help/troubleshootings. Search in A&I DDEC manual for fan activation. You will see which one is that cavity for your truck. CPC is located under dash . I Don't know exactly where in your truck. Just ask dealer where it is located.

    jamespmack and ShortCircuit Thank this.
  5. Commander1

    Commander1 Light Load Member

    82
    127
    Aug 16, 2017
    0
    CPC is located behind ash tray.

    jamespmack and mhyn Thank this.
  6. Wombat63

    Wombat63 Bobtail Member

    32
    16
    Nov 3, 2018
    0
    Did you end up installing the fan switch? I'd be interested to see how you ran it I'd like to do the same. Thanks

  7. Rolling18

    Rolling18 Light Load Member

    146
    28
    Dec 11, 2008
    Portland, OR
    0
    I am interested in this as well for my 2017 4700..???

    I did this in my 18 KW T880 ... got the OEM smart switch. using the Nexiq and laptop paccar software told CECU it was there and activated it.. (multiplexed system)

    I would think it to be similar to W Stars??

  8. Rolling18

    Rolling18 Light Load Member

    146
    28
    Dec 11, 2008
    Portland, OR
    0
    Where to get DDDL, A&I, DDEC, CPC???
    is there any other software I should obtain???
    thanks!

    Last edited: Oct 19, 2019
  9. ShortCircuit

    ShortCircuit Bobtail Member

    23
    14
    May 7, 2017
    0

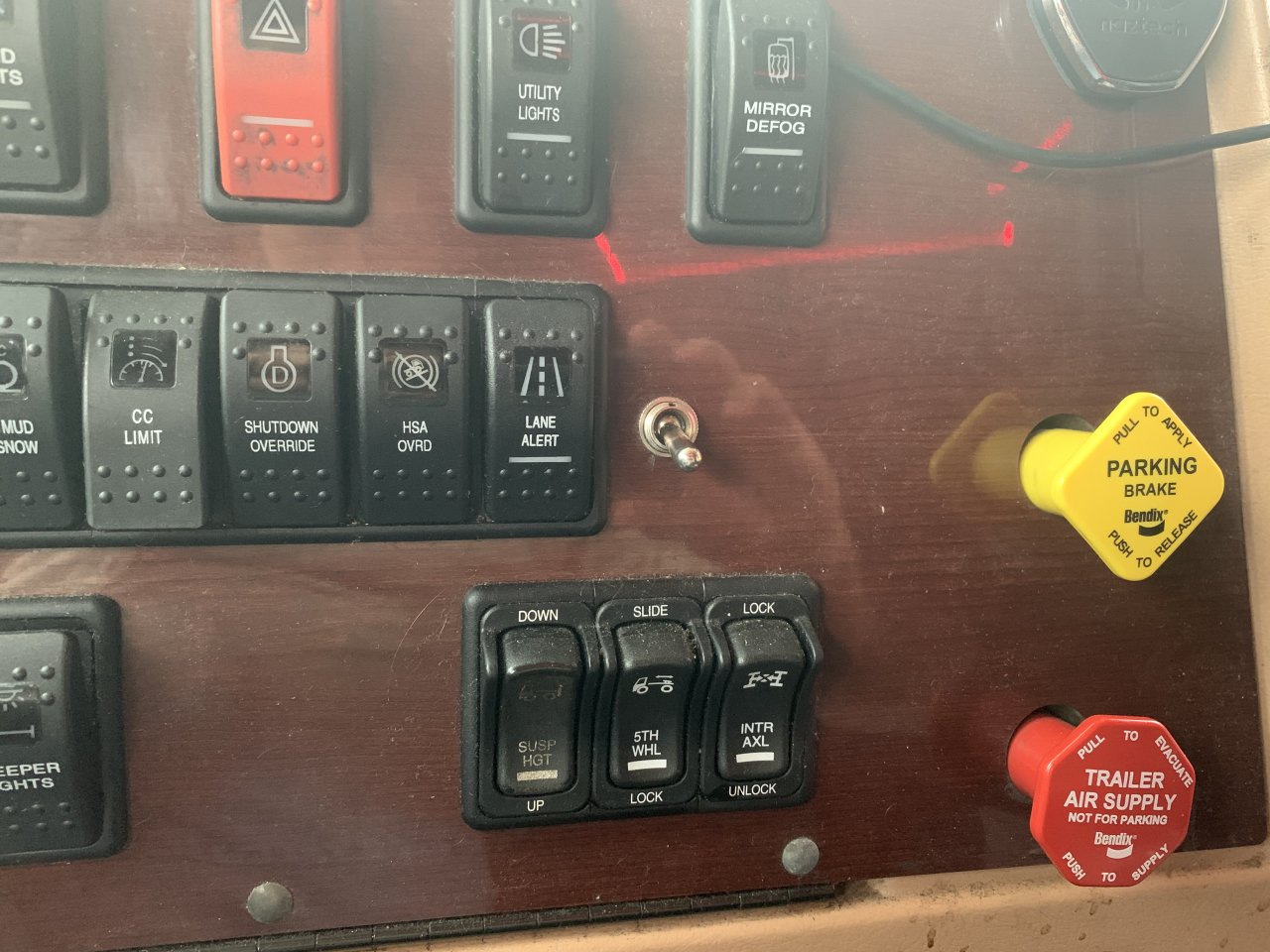

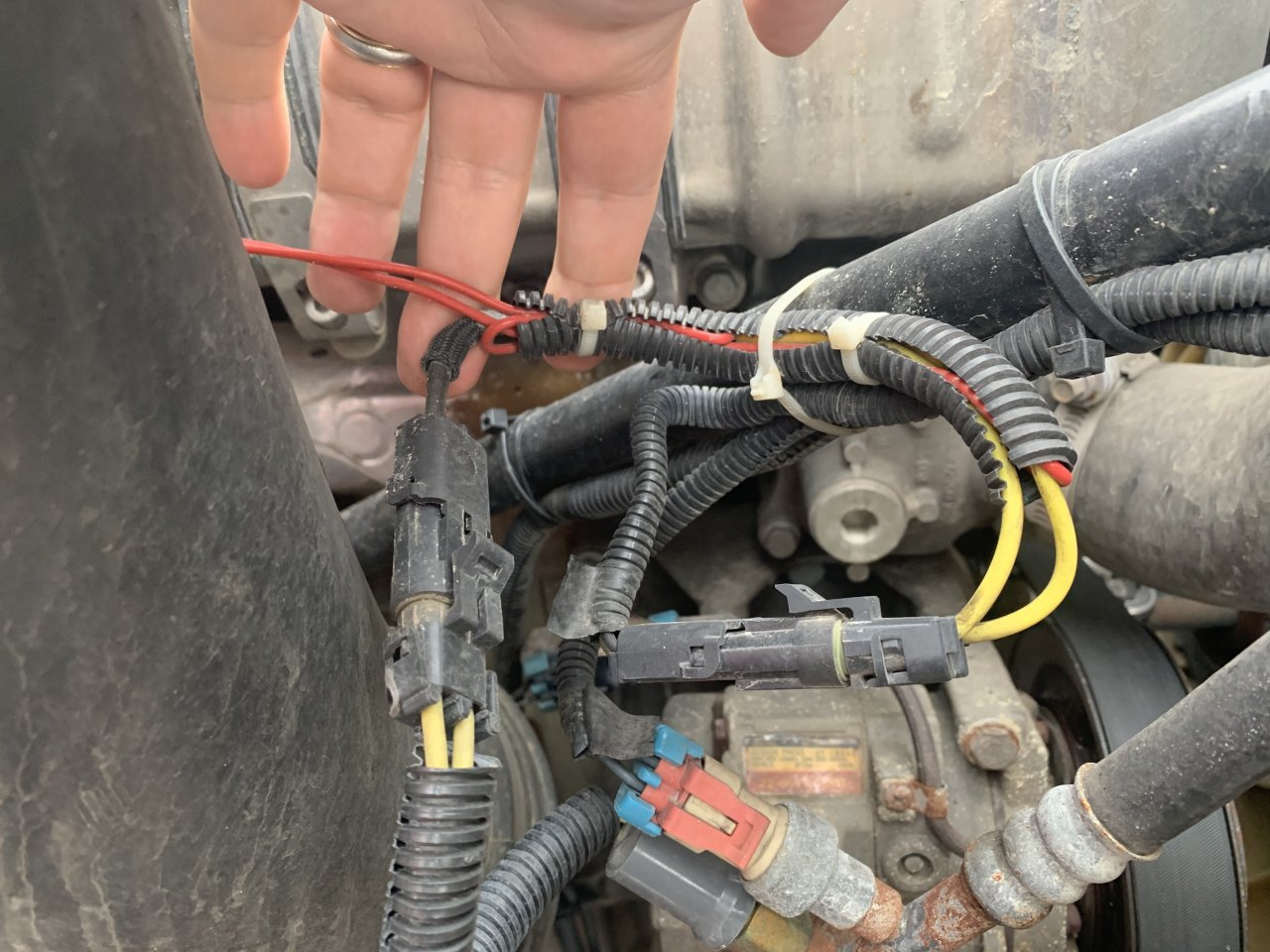

    I made a harness to go in between high pressure AC sensor and ECM harness plug. The harness has one wire split and connected to a toggle switch in the cab. Basically if AC high pressure sensor circuit is open the ECM engages fan clutch. Later I’ll buy a genuine fan button for my star but for now this works.

    AD4D701E-7CDA-49D9-B54A-D91CA92EABA9.jpeg 5E1B83AD-CF73-4477-9B24-1CEC4B7A4C0D.jpeg 53F31F1A-A5F0-4B02-9BDB-DEEBCEB8A185.jpeg

    mhyn Thanks this.
  10. mhyn

    mhyn Road Train Member

    4,005
    3,870
    Dec 29, 2008
    Northridge, CA
    0
    @ShortCircuit when you switch on/off the fan do you see a fault code popping up ?
