5th Wheel Pin kit for Running End Dump

Discussion in 'Tanker, Bulk and Dump Trucking Forum' started by OldRed98, Feb 1, 2022.

  1. OldRed98

    OldRed98 Light Load Member

    247
    220
    Apr 18, 2017
    Colorado
    0
    I’ll try to post a picture once I get it fabbed up. But I’m thinking of a bracket that mounts like the picture I posted. But I’m going to make it like a C style that will be under the front and rear. So the 5th wheel can’t move forward or back. Hope that makes sense.

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. OldRed98

    OldRed98 Light Load Member

    247
    220
    Apr 18, 2017
    Colorado
    0
    Kind of like this


    Attached Files:

  4. SmallPackage

    SmallPackage Road Train Member

    3,616
    10,758
    Dec 20, 2019
    Marion Texas
    0
    Yeah makes sense.
    on crazy ways to do it. I got a truck from TXI concrete plant and rock quarry that had the plate welded solid. That was the only way they knew how to do it. The truck was 30 years old and the plate was the original.
    Heldt Bros. Trucks in the oilfield used to run solid welded plates on their heavy haul tractors. They claimed it help dampen the bounce from the walking beam rears.

    OldRed98 Thanks this.
  5. Daycabinit

    Daycabinit Light Load Member

    79
    53
    Dec 11, 2016
    0
    I’ve welded it solid, billy bob’ed it with iron bolted on kinda like what your thinking to do , then I paid a fab guy to do the long pin style best money I’ve ever spent can pull the pin out in a second done clean not covered in grease. Whatever you do just set it up to not have any slop, the fifth wheel banging around when the trailers up in the air and muddy dirt stuck isn’t good

    OldRed98 Thanks this.
  6. Slowpoke KW

    Slowpoke KW Road Train Member

    1,170
    12,816
    Dec 7, 2015
    OK
    0
    That right there is what I was trying to describe.

    OldRed98 Thanks this.
  7. OldRed98

    OldRed98 Light Load Member

    247
    220
    Apr 18, 2017
    Colorado
    0
    I made up a bracket today. It’s not pretty but I think it will work. I just worked with what I had in the garage. I’m thinking about welding on some tube steel at the end of the bracket to provide some extra support under the fifth wheel. Not sure how much weight/force that bracket will need to handle.


    Attached Files:

  8. Slowpoke KW

    Slowpoke KW Road Train Member

    1,170
    12,816
    Dec 7, 2015
    OK
    0
    Good start
    I would definitely add more to the ends at least. Every time you take off on slow down the fifth wheel will be trying to crush it.

  9. OldRed98

    OldRed98 Light Load Member

    247
    220
    Apr 18, 2017
    Colorado
    0

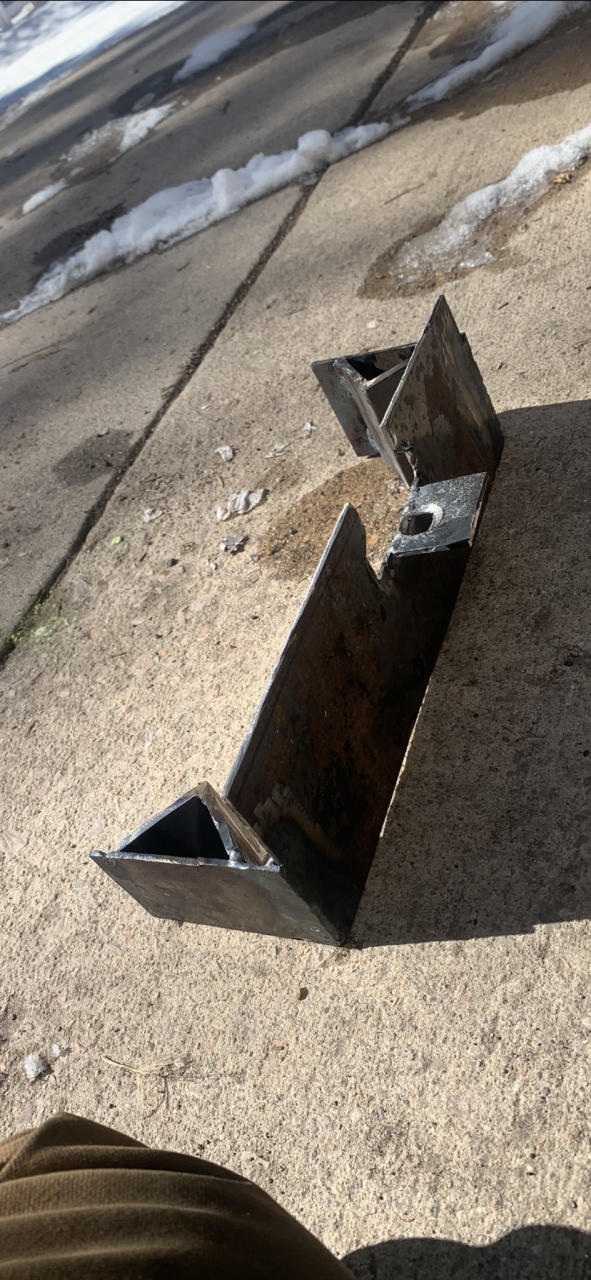

    I ended up using some angle iron on the ends. Seems pretty strong. Just a little difficult because under the fifth wheel plate is not a solid surface.


    Attached Files:

  10. Slowpoke KW

    Slowpoke KW Road Train Member

    1,170
    12,816
    Dec 7, 2015
    OK
    0
    That ought to work at least for awhile

    OldRed98 Thanks this.
  11. OldRed98

    OldRed98 Light Load Member

    247
    220
    Apr 18, 2017
    Colorado
    0
    Thanks slowpoke KW! I appreciate your help.

    Slowpoke KW Thanks this.
