Air lines with a headache rack

Discussion in 'Flatbed Trucking Forum' started by Kyle G., Aug 8, 2020.

  1. Kyle G.

    Kyle G. Road Train Member

    1,407
    5,374
    Jan 23, 2016
    Eastern Iowa
    0

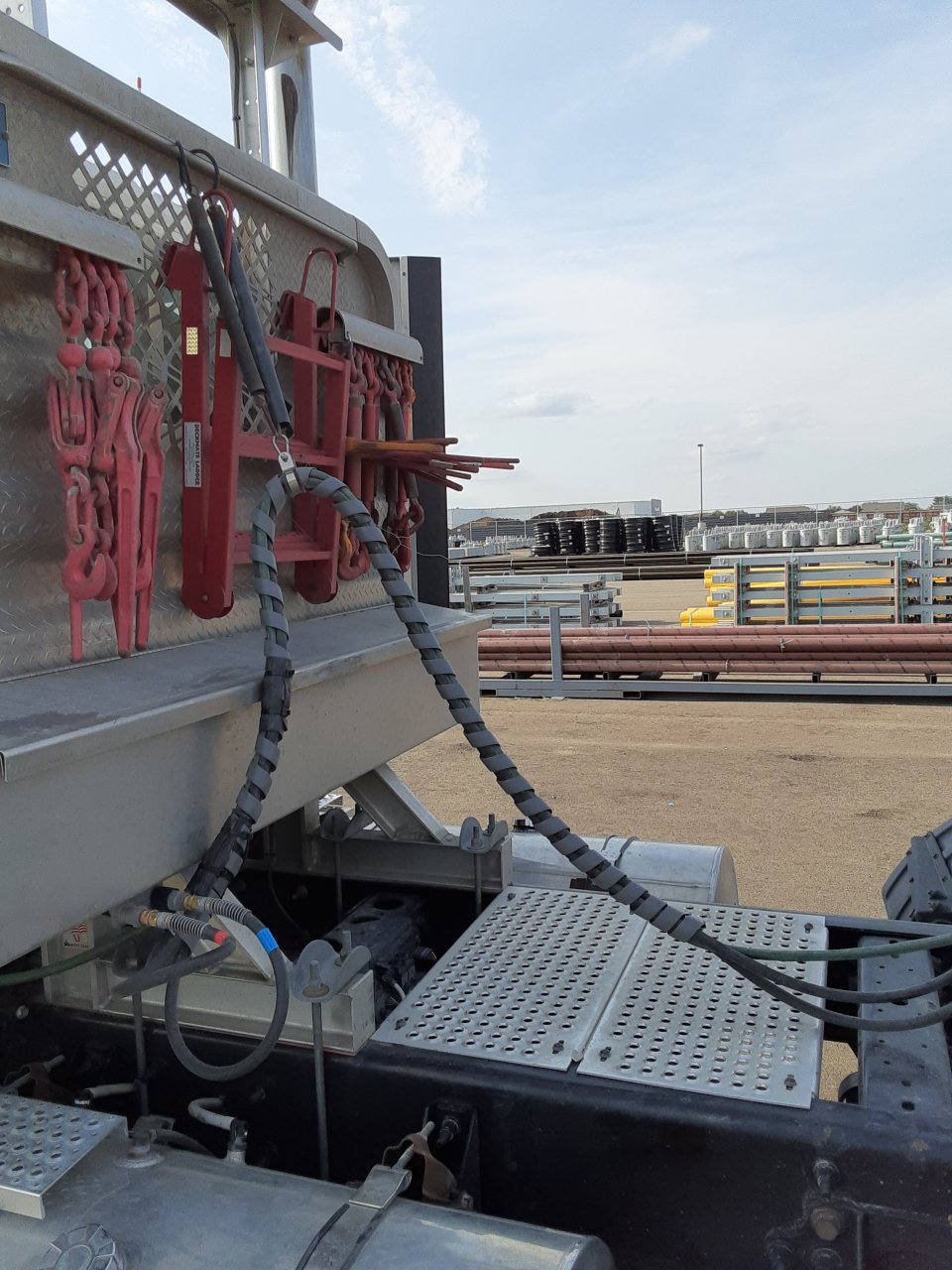

    I recently replaced my air lines/light cord but I don’t like the way they rub on the headache rack. A longer spring would probably solve that but then they would rub on the catwalk... so I’m thinking there’s gotta be a better setup than what I have here. The only other option I know of is one of those spring posts that attach to the catwalk, but I’ve only seen those on longer wheelbase trucks so not sure if that would work for me.

    Any suggestions? Pictures of your setup? This is a company truck so I can’t go too crazy with mods.

    Tug Toy and D.Tibbitt Thank this.
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Gdog66223

    Gdog66223 Road Train Member

    1,871
    2,502
    Dec 30, 2017
    Coal Town
    0
    It's called a pogostick. You can find them at any parts store for trucks. That would be the best option.

    Swivel Pogo Stick Pipe w/ Hose & Cable Holder

    Wespipes, ChevyCam and Kyle G. Thank this.
  4. bad-luck

    bad-luck Road Train Member

    1,269
    1,422
    Nov 16, 2013
    Baltimore, Maryland
    0
    I had this on an old tractor that I owned years ago. I made it, I tried to zoom in on it the best I could View attachment 341385 View attachment 341385

    Brettj3876, Ruthless and Kyle G. Thank this.
  5. IH Truck Guy

    IH Truck Guy Road Train Member

    2,042
    23,944
    Mar 2, 2008
    Purgatory
    0
    And sometimes they'll let you have 2. Lol

  6. StrokerTSi

    StrokerTSi Medium Load Member

    532
    757
    Aug 28, 2016
    0
    Just loosen where the spring clamps to the lines to draw them tighter to truck and get them up off the catwalk and tighten the clamp back up.

    ChevyCam and Kyle G. Thank this.
  7. shawnhhllc

    shawnhhllc Light Load Member

    237
    1,750
    Feb 9, 2020
    florida
    0
    weld a little piece of flat stock onto the headache rack (where the spring clamp is) so it sticks out towards the rear about 6 inches or so drill a new whole and clip it there that way the lines wont hang down at that angel and rub.

  8. xsetra

    xsetra Road Train Member

    3,853
    3,932
    Aug 21, 2011
    0
    Put more wire wrap on the air hoses. To protect them if they run.

    Kyle G. Thanks this.
  9. Kyle G.

    Kyle G. Road Train Member

    1,407
    5,374
    Jan 23, 2016
    Eastern Iowa
    0
    I appreciate the responses. I think I will pick up one of those pogo sticks and see how that works. How do they mount?

  10. Ruthless

    Ruthless Road Train Member

    6,970
    69,012
    Aug 28, 2010
    The City.
    0

    Bolt thru the bottom into the base.

    Kyle G. Thanks this.
