Air suspension - Leaning - How to fix?

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by Davis42200, Nov 27, 2024.

  1. Nov 27, 2024 #1
    Davis42200

    Davis42200 Bobtail Member

    34
    4
    Dec 7, 2020
    0

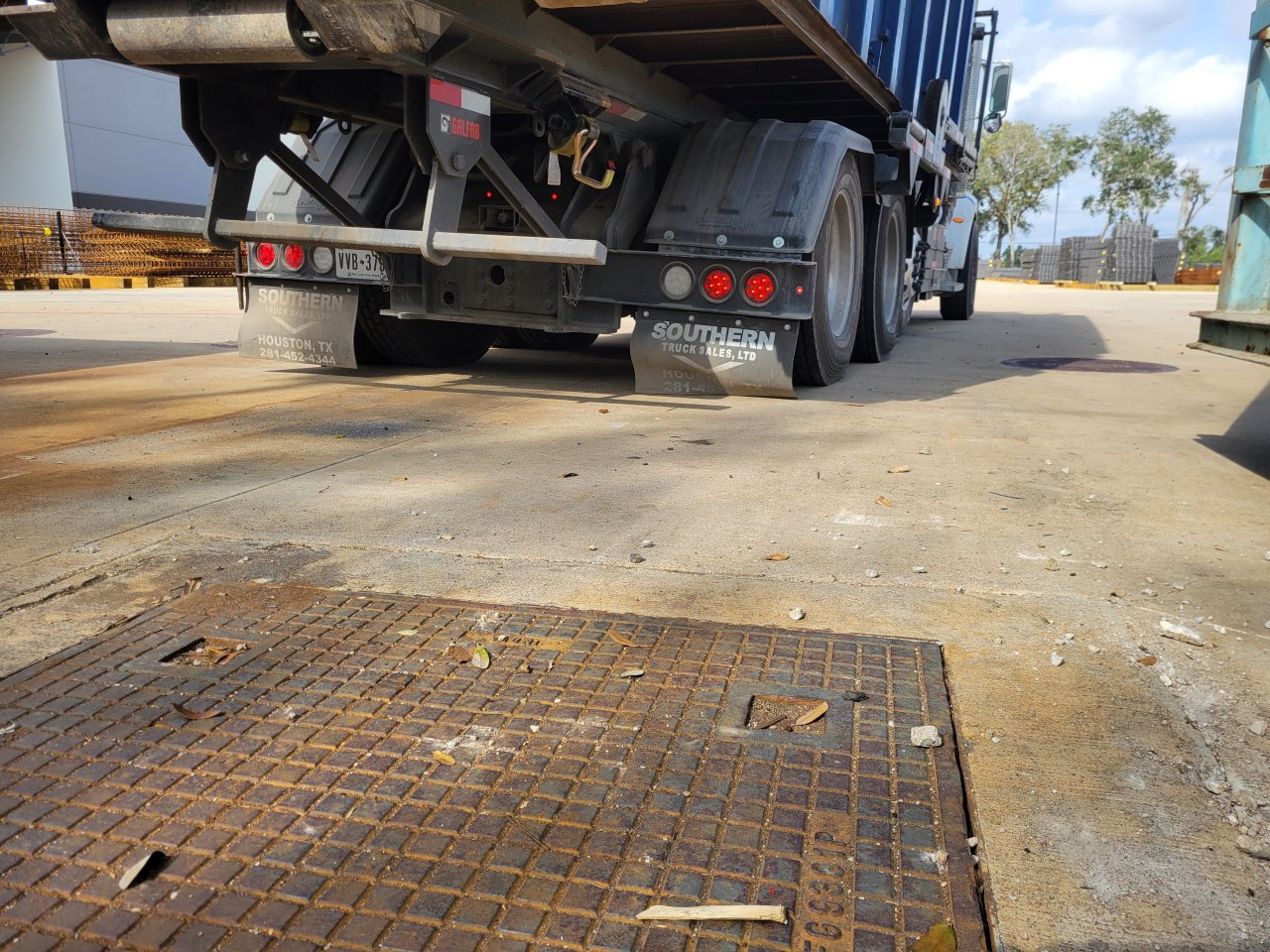

    So I drive a roll-off truck and haul scrap metal. Sometimes the containers get loaded heavy on one side. When I had my solid suspension truck it didn't matter much. Now I have this air bag truck and it sucks. This is how the truck looked today. What can be done? I was reading some people use dual leveling valves. Will that help get me level? 20241127_132150.jpg

    Davis42200, Nov 27, 2024
    Davis42200, Nov 27, 2024
    #1
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Nov 28, 2024 #2
    Lazer

    Lazer Road Train Member

    1,673
    2,631
    Jan 22, 2017
    0
    What kind of scrap steel is it? All small ‘hand tossed’ scrap, or huge hunks of cast/iron? You may be to go up top and rearrange, or you may need to drop the bin back down on the ground and have the customer rearrange.

    Lazer, Nov 28, 2024
    Lazer, Nov 28, 2024
    #2
  4. Nov 28, 2024 #3
    Rideandrepair

    Rideandrepair Road Train Member

    17,019
    55,335
    Aug 8, 2015
    0
    Duals should work.

    Rideandrepair, Nov 28, 2024
    Rideandrepair, Nov 28, 2024
    #3
  5. Nov 28, 2024 #4
    Iamoverit

    Iamoverit Road Train Member

    1,168
    2,566
    Oct 31, 2023
    0
    Tell your employer it's not safe to drive like that and he needs to fix it.

    Iamoverit, Nov 28, 2024
    Iamoverit, Nov 28, 2024
    #4
  7. Nov 28, 2024 #5
    NightWind

    NightWind Road Train Member

    2,610
    18,528
    Nov 11, 2006
    Sunny South, AL
    0
    It looks like your leveling valve isn't working OR you could have a broken spring which I am leaning towards (no pun intended). I replace mine every year as I haul 88K everyday all day and those loader men are sometimes not the most gentle.

    NightWind, Nov 28, 2024
    NightWind, Nov 28, 2024
    #5
  8. Nov 28, 2024 #6
    Goodysnap

    Goodysnap Road Train Member

    3,657
    8,849
    Jul 12, 2017
    0
    Install dual leveling valves. RH and LH. Very common for vehicles that are not evenly loaded side to side. Fairly simple upgrade.

    Goodysnap, Nov 28, 2024
    Goodysnap, Nov 28, 2024
    #6
    kemosabi49 and Deere hunter Thank this.
  9. Nov 28, 2024 #7
    AModelCat

    AModelCat Road Train Member

    28,479
    150,651
    Jul 7, 2015
    Canuckistan
    0
    I'd go with dual valves. With a single valve all the bags are getting equal pressure. With dual valves you've split the system to left and right. If one side has more weight, the valve on that side will put more pressure to that side to keep everything level.

    AModelCat, Nov 28, 2024
    AModelCat, Nov 28, 2024
    #7
    W923, kemosabi49, NightWind and 2 others Thank this.
  10. Nov 29, 2024 #8
    OLDSKOOLERnWV

    OLDSKOOLERnWV Captain Redbeard

    17,291
    259,848
    Nov 29, 2011
    West Virginia
    0

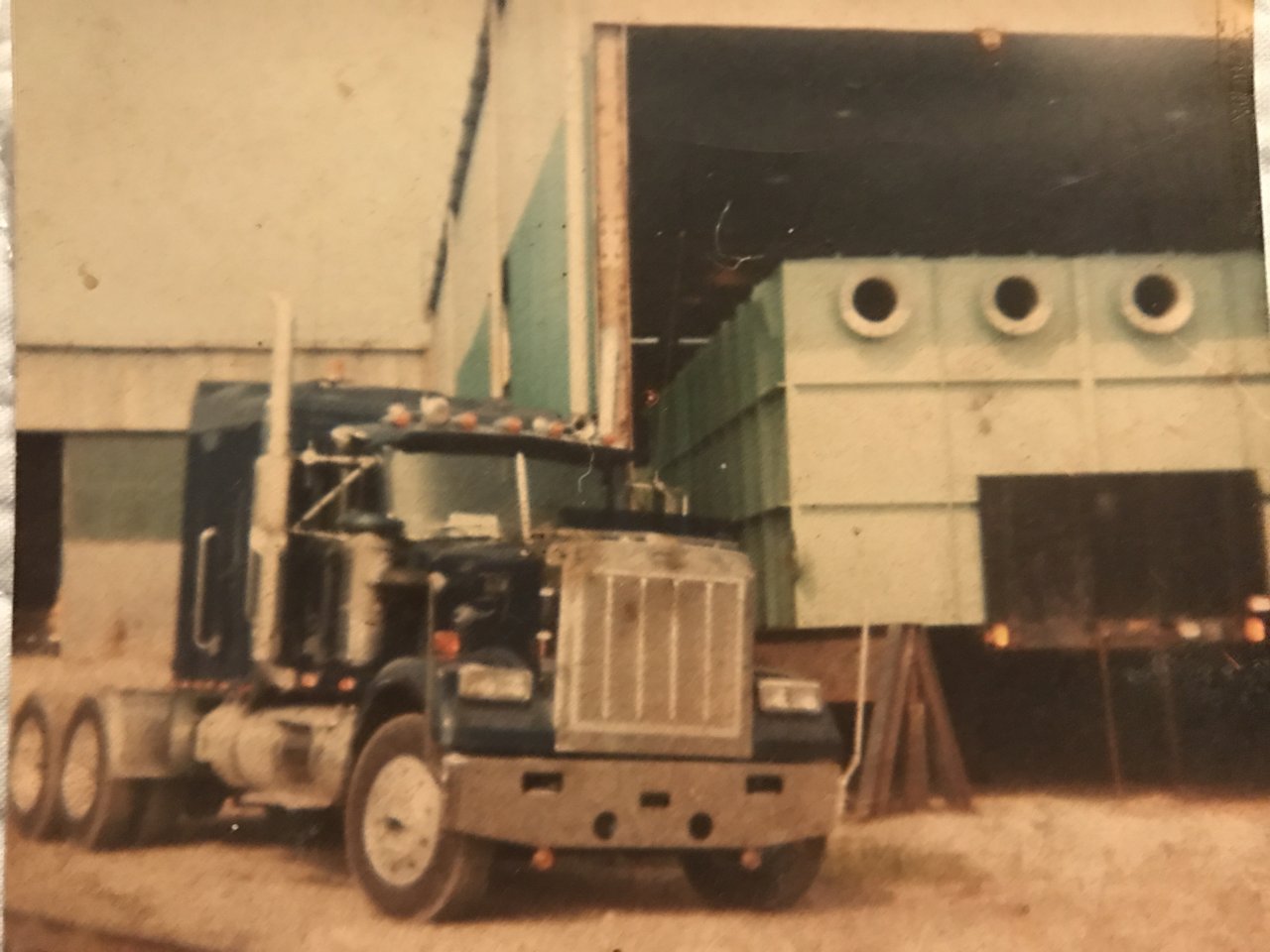

    This 1984 AT64F Autocar I use to drive years ago had 4 bag air ride with dual leveling valves. Did a decent job of keeping the load level….

    IMG_4409.jpeg IMG_6148.png

    OLDSKOOLERnWV, Nov 29, 2024
    OLDSKOOLERnWV, Nov 29, 2024
    #8
    W923 Thanks this.
