Anybody familiar with this tie down?

Discussion in 'Heavy Haul Trucking Forum' started by Old Man, May 24, 2020.

  1. May 24, 2020 #1
    Old Man

    Old Man Road Train Member

    4,597
    13,466
    Apr 3, 2009
    Oklahoma City, OK
    0
    Called round bar tie down, working with factory on new trailer. Deck will be 6” thick, flange will be to thick for chain slots, don’t want to loop chain around bar and back to itself, hard to get binder close to deck if needed, plus they come un hooked when trying to hook up.
    Maybe weld plate to beam then bent D ring?
    Looking for ideas to pass along to engineers designing trailer. Trailer will have a 10” ride height.

    Old Man, May 24, 2020
    Old Man, May 24, 2020
    #1
    D.Tibbitt and kylefitzy Thank this.
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. May 24, 2020 #2
    beastr123

    beastr123 Road Train Member

    2,634
    21,643
    Jan 2, 2014
    Moose Jaw SK CAN
    0
    Consider 7/16 grade 100 pull ups every 16 inches or every 2nd or 3rd crossmember boxed to outside rail and crossmember.
    You can also redirect from the roundbar to another pull up if needed.

    beastr123, May 24, 2020
    beastr123, May 24, 2020
    #2
    stwik, clausland, Darpen and 1 other person Thank this.
  4. May 24, 2020 #3
    RickyDickyDo

    RickyDickyDo Heavy Load Member

    852
    889
    Nov 22, 2010
    Loveland, Colorado
    0
    D rings diffently. Here is a idea i have tought of, recessed D rings, may require a little engineering.

    RickyDickyDo, May 24, 2020
    RickyDickyDo, May 24, 2020
    #3
  5. May 25, 2020 #4
    Landincoldfire

    Landincoldfire Heavy Load Member

    848
    4,431
    Sep 27, 2015
    New Holland, Pa
    0
    We have a Nelson rgn with a similar deck. We call it a mini deck because the deck height can get a low as 9 inches depending on shims. It's not good for anything heavy but I like it.

    The securement bar is handy but a bit of a PITA to feed hooks a chains through. Especially if the load overhangs the deck.

    Landincoldfire, May 25, 2020
    Landincoldfire, May 25, 2020
    #4
    TripleSix Thanks this.
  7. May 25, 2020 #5
    kylefitzy

    kylefitzy Road Train Member

    3,997
    16,446
    Aug 12, 2007
    Kansas city,Mo
    0
    I would get some good quality slip hooks with latches for one end of your chains. Maybe even a few for one end of your ratchet binders if you need to hook directly to the tiebar.

    kylefitzy, May 25, 2020
    kylefitzy, May 25, 2020
    #5
  8. May 25, 2020 #6
    Old Man

    Old Man Road Train Member

    4,597
    13,466
    Apr 3, 2009
    Oklahoma City, OK
    0
    want to sell it?

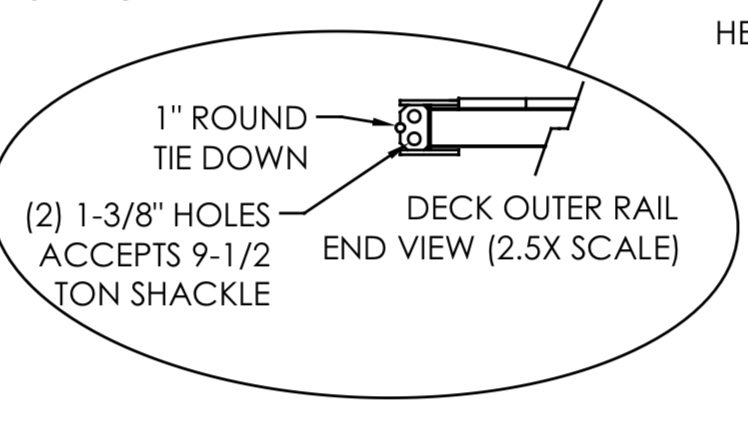

    Received this today, by putting holes in the gusset holding the round bar I could use a clevis if needed, but I would also like chain drops or d rings in the floor.


    The securement bar is handy but a bit of a PITA to feed hooks a chains through. Especially if the load overhangs the deck.

    Last edited by a moderator: Sep 6, 2020
    Reason for edit: fixed quote
    Old Man, May 25, 2020
    Old Man, May 25, 2020
    #6
  9. May 26, 2020 #7
    Landincoldfire

    Landincoldfire Heavy Load Member

    848
    4,431
    Sep 27, 2015
    New Holland, Pa
    0
    Hah... The way my boss is. He'd probably sell it but you wouldn't like the price. He's lucky like that. Making money on the crappiest if deals.

    Landincoldfire, May 26, 2020
    Landincoldfire, May 26, 2020
    #7
  10. Aug 30, 2020 #8
    HoneyBadger67

    HoneyBadger67 Road Train Member

    2,056
    4,509
    Dec 15, 2018
    Savannah, TN
    0
    Man...I don't care for the looks of that bar at all. Just my opinion, but it looks like your chains/binders are able to slide a little ways along it.

    HoneyBadger67, Aug 30, 2020
    HoneyBadger67, Aug 30, 2020
    #8
  11. Aug 31, 2020 #9
    kylefitzy

    kylefitzy Road Train Member

    3,997
    16,446
    Aug 12, 2007
    Kansas city,Mo
    0
    That’s not any different then hooking the top rail of the trailer. The binders can’t slide anywhere if they start off against a stoping point.

    kylefitzy, Aug 31, 2020
    kylefitzy, Aug 31, 2020
    #9
    MACK E-6, Tug Toy and shawnhhllc Thank this.
  12. Sep 4, 2020 #10
    Old Man

    Old Man Road Train Member

    4,597
    13,466
    Apr 3, 2009
    Oklahoma City, OK
    0
    Worked with engineering and will be able to put chain in the deck, it’s 3/4 inch plate but a 1/2 inch long link chain will work.

    Old Man, Sep 4, 2020
    Old Man, Sep 4, 2020
    #10
    RStewart, beastr123, kylefitzy and 1 other person Thank this.
