Broke down

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by Rideandrepair, Nov 18, 2018.

  1. Rideandrepair

    Rideandrepair Road Train Member

    16,522
    53,935
    Aug 8, 2015
    0
    Left out and 1 mile away Truck shut off . Turned key on no dash lights or buzzer all other headlights 4 ways etc still working. Checked ecu fuse ok left key in on position wiggled wires to ecm nothing . Went to check fuse panel and suddenly buzzer came on. Started went back to T/S Any ideas ? I don’t know where to start. Worried ecm is on way out. Could it be symptom? Everything working good now no new active codes trying to change bulb to get stored codes now Thanks any ideas at all

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. SAR

    SAR Road Train Member

    2,756
    36,652
    Nov 26, 2011
    ND
    0
    What model of truck and engine? Did you have any work done to your truck recently?

    I'd check the battery cables for any chaffing or a rub through coming out of the battery box. There could be a inline fuse going from the battery's to ecm loosing power.

    Rideandrepair Thanks this.
  4. SteerTire

    SteerTire Road Train Member

    1,414
    2,346
    Nov 5, 2018
    Behind the wheel
    0
    What kind of truck?

    Rideandrepair Thanks this.
  5. Dave_in_AZ

    Dave_in_AZ Road Train Member

    49,745
    314,920
    May 4, 2015
    0
  6. Rideandrepair

    Rideandrepair Road Train Member

    16,522
    53,935
    Aug 8, 2015
    0
    I just realized Sorry was in a panic 2000 Freightliner Classic 12.7 DDEC lV. Acts like ignition switch unplugged all lights working except dash. Only active code is 46 low ecm battery voltage has been there for years. Also trying to change dash bulb can’t get front cover off. Strange thing is abs light came on right before problem occurred and has done it again just now as Truck is running . Abs light flashed once only. Just replaced front abs harness and other sensors and wires. Have 1 possible bad wire on Power distribution module inside fuse box, don’t know what people is for honestly. Could bad ground on frame near starter/ spring hanger be for ecm only? And starter lights all still work but ignition and dash lights ( ecm ) not work? Thanks to all

  7. JohnC123

    JohnC123 Light Load Member

    135
    66
    Jan 25, 2018
    0
    Do you have a battery quick/disconnect shut-off switch?

    Rideandrepair Thanks this.
  8. BoxCarKidd

    BoxCarKidd Road Train Member

    4,186
    6,001
    Aug 26, 2014
    0
    Sounds like loosing power supply or possibly ground. I believe the the ABS cycles with the key. There are 4? large wires on the right side of the breaker panel. Are they all hot, key may have to be on. Does the blower motor also cut off at the same time? That is also an ignition on circuit nothing to do with the ECM.

    Rideandrepair Thanks this.
  9. Rideandrepair

    Rideandrepair Road Train Member

    16,522
    53,935
    Aug 8, 2015
    0
    No

  10. Rideandrepair

    Rideandrepair Road Train Member

    16,522
    53,935
    Aug 8, 2015
    0

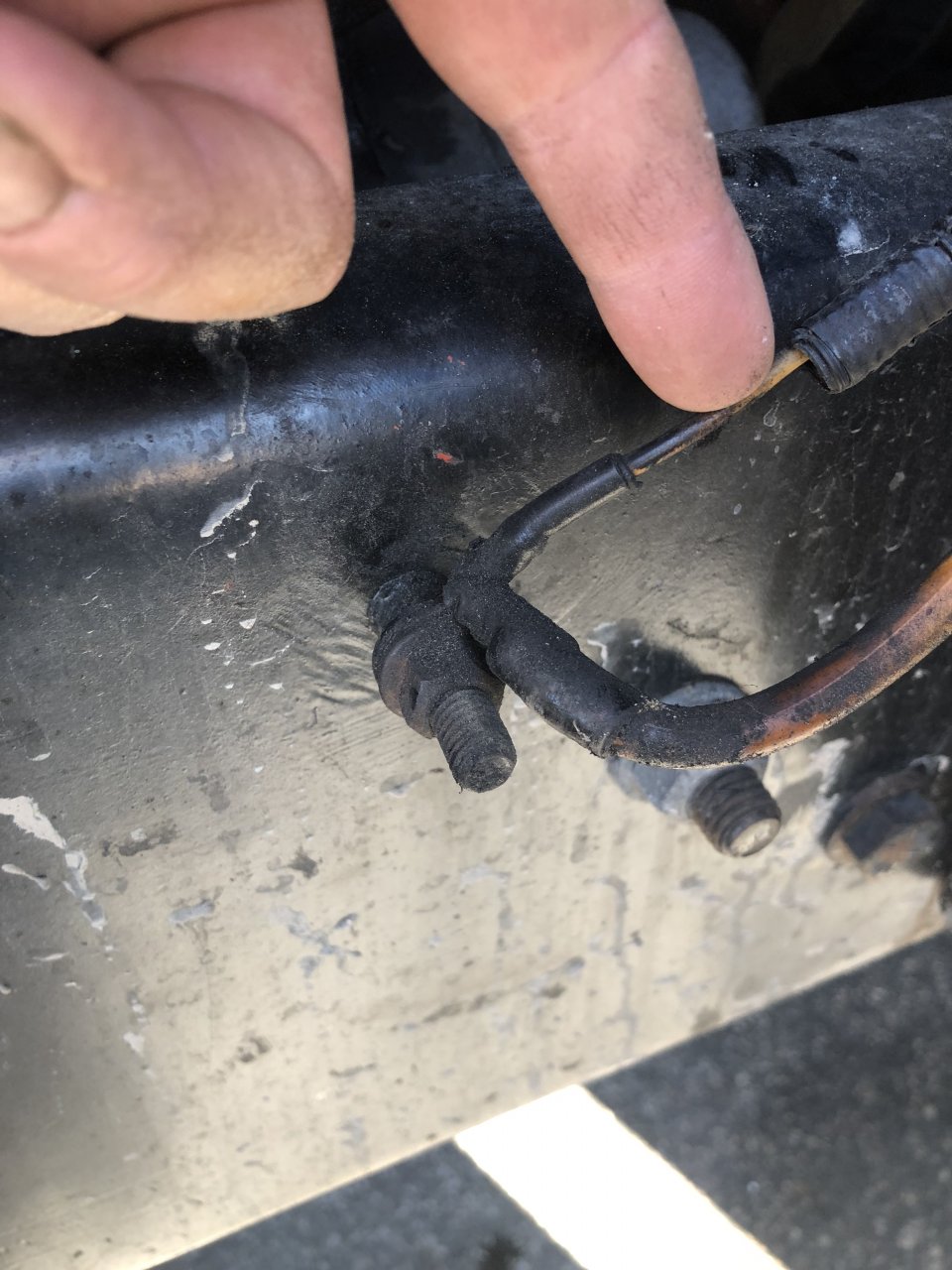

    Everything key on quit I’m not sure about blower motor. Truck is running this morning A/C won’t engage unrelated I’m guessing. Grounds look good wondering about 1 small ground being for ignition/ ecm it’s not loose I’m trying to wiggle ecm and battery wires to replicate E30BEB27-A4E0-4298-A9FB-87AC3340E482.jpeg

  11. baha

    baha Road Train Member

    4,137
    2,834
    Jul 25, 2013
    ga
    0
    Go ahead and take off all batt. conn to clean them with a wire brush watch the 2 small wires they go to ECM then ck it to see if its running like it should?

    Rideandrepair Thanks this.
