Budd/ hub pilot mixup

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by W923, Aug 3, 2022.

  1. SmallPackage

    SmallPackage Road Train Member

    3,533
    10,465
    Dec 20, 2019
    Marion Texas
    0
    Do not mix those two mounting systems and work them. They will come loose and fail. The new hub pilot system is hard to keep tight already and doesn’t need anymore help caused by a mismatch. Wheel-offs with the new system are a real thing.
    If it is a ultra low mileage hobby truck that has no chance of seeing high torque and high load to the rears then maybe ok. But I’d be checking them regularly and the only way i’d personally do it is if they were some rare wheel like the old 5 hole Alcoa’s or something like that. If they are just standard everyday 10 hole or steel wheels just Sell or Trade the stud pilots for the right hub pilot wheels. That way you have the piece of mind that they will not fall off.

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. spsauerland

    spsauerland Road Train Member

    4,282
    10,805
    May 31, 2010
    West Harrison, In
    0
    It can technically work as you seen. Later versions of ball and seat wheels used the 11.25" pattern and 8.72" center hole the same as hub piloted wheels. So the wheel centers up and rests on hub just like a hub piloted wheels. Your not supposed to do it, but it does work.

    Last edited: Aug 4, 2022
  4. mile marker 27

    mile marker 27 Medium Load Member

    617
    888
    Dec 4, 2019
    0
    But it won’t work at all, the other way around. Aren’t the hub centers different diameters?

    Last edited: Aug 4, 2022
  5. W923

    W923 Medium Load Member

    390
    1,403
    Feb 28, 2022
    0

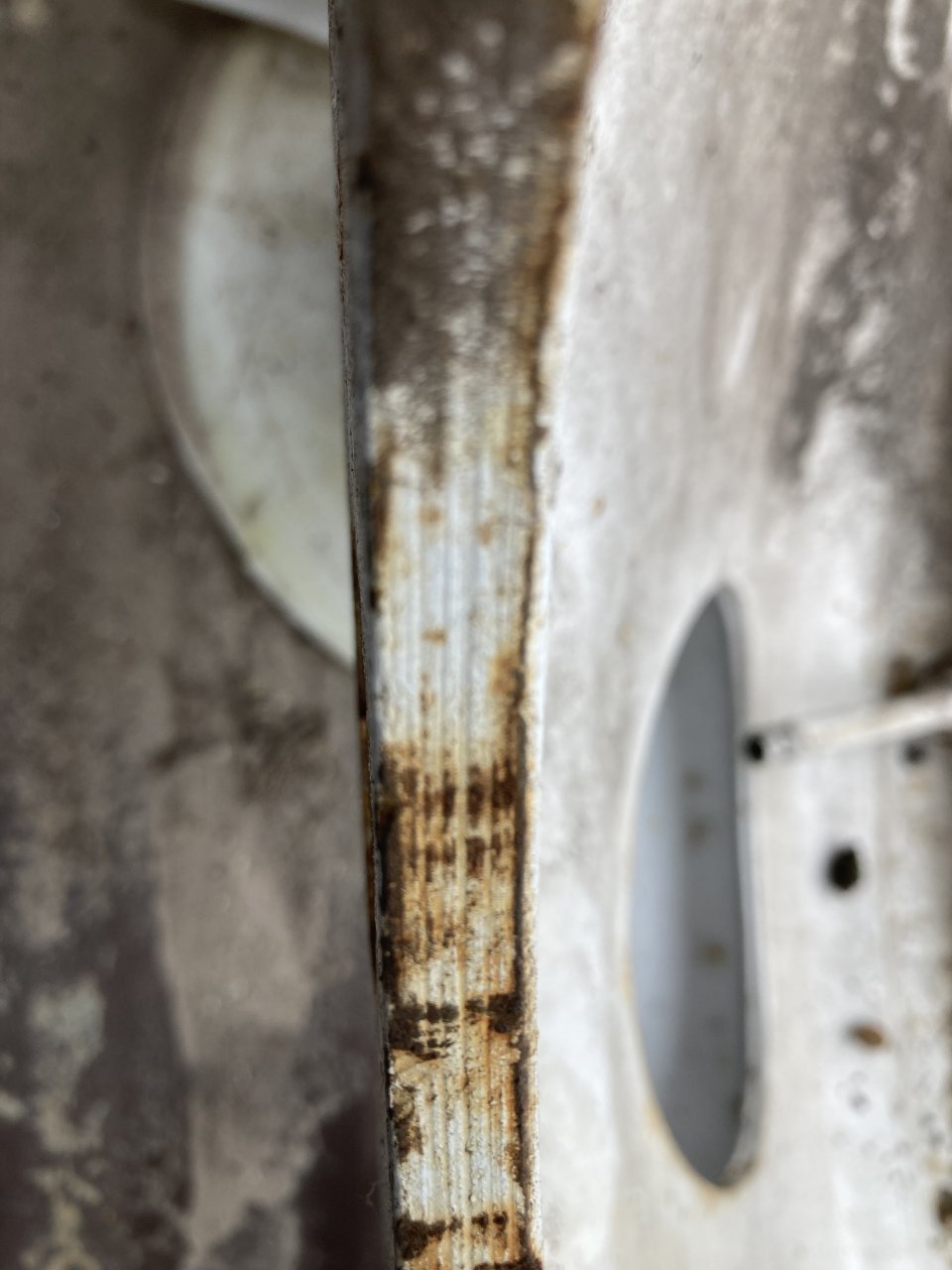

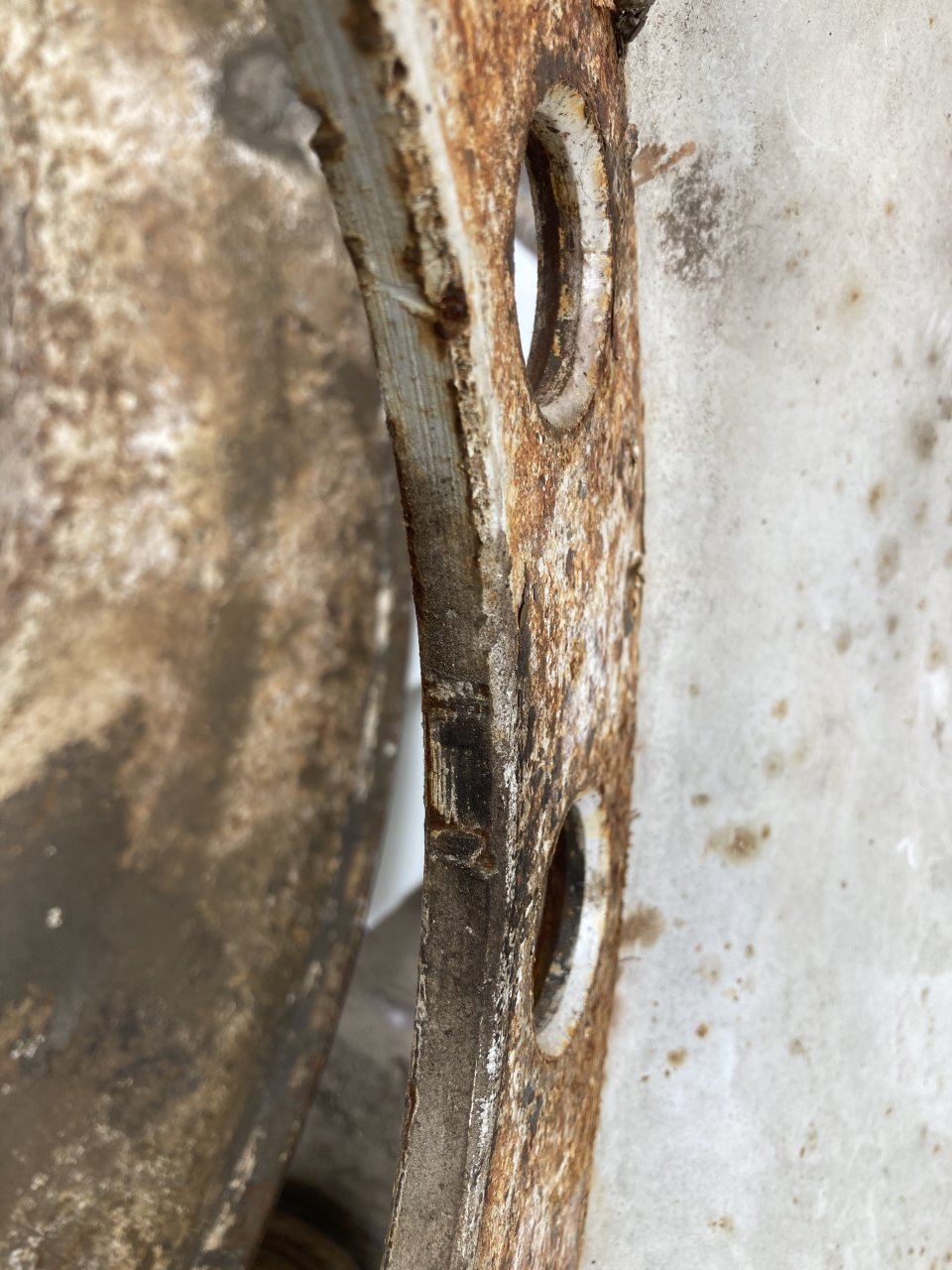

    Attached Files:

  6. spsauerland

    spsauerland Road Train Member

    4,282
    10,805
    May 31, 2010
    West Harrison, In
    0

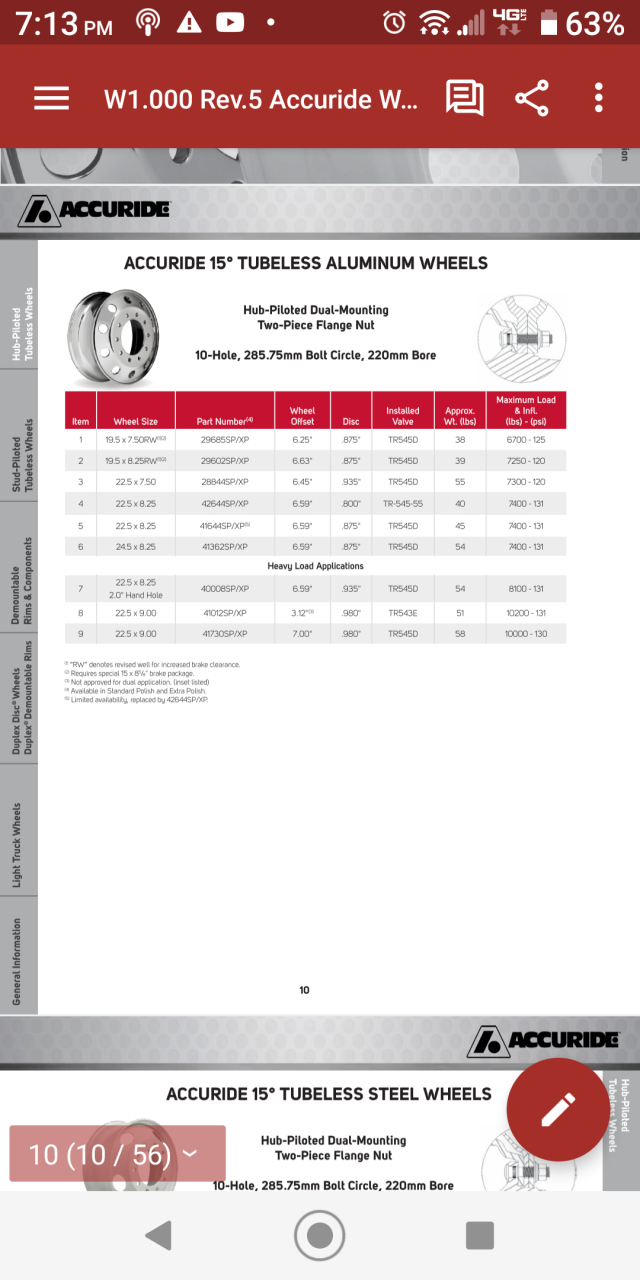

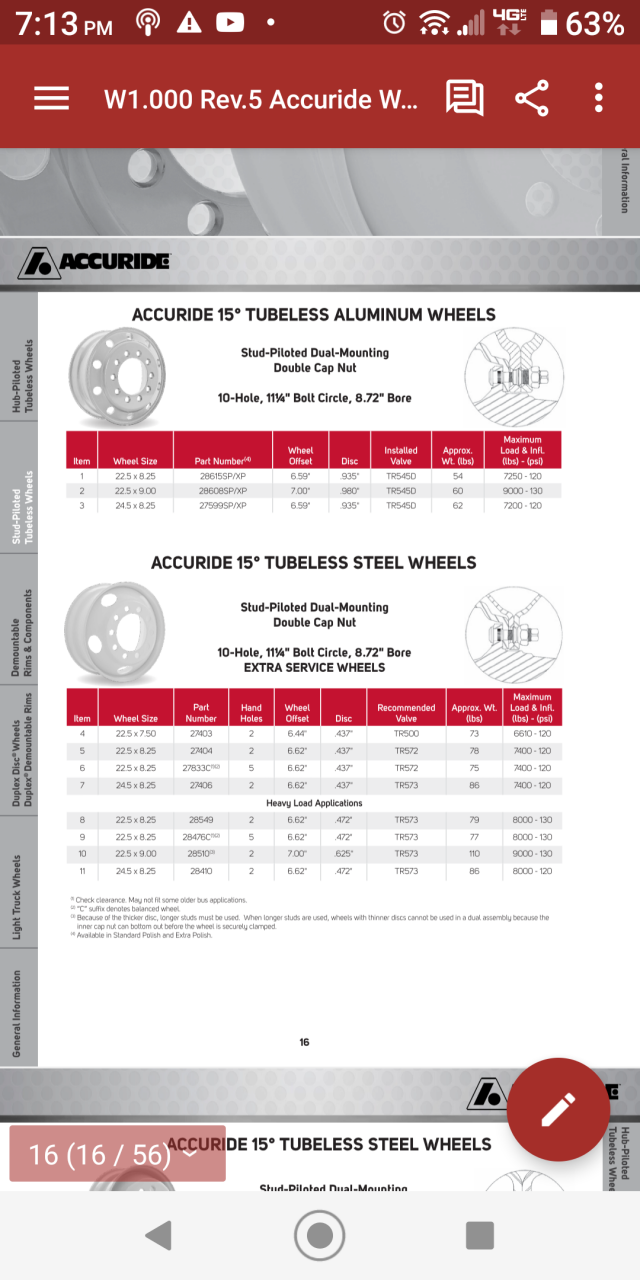

    Screenshot_20220804-191353.png Screenshot_20220804-191313.png
    Same measurements on bore 8.72"=220MM, bolt circle is same @ 11.25"=285.75MM. Alcoa is the same way. Sure it's cheaper to set die for forge for one bore size. Aftermarket pickup wheels are the same way.

  7. W923

    W923 Medium Load Member

    390
    1,403
    Feb 28, 2022
    0
    Thanks for the input everyone
    Wore out I was not trying to go against your advice just more stating other things I have observed. I do value your knowledge and I hate to admit this but your correct that I had already decided what to do and it wasn’t what you assumed. I just wanted someone to tell me that they had done what I saw and it worked great or it failed miserably.
    I had hp rims on hand but was more thinking about finishing the tires rather than dismount and remount mostly because it’s a busy time for dump trucks. It rained this morning and everything is honkeydorry the Budd rims are in the junk pile and the truck has all hp rims on it.

    Feedman, Hammer166, xsetra and 3 others Thank this.
  8. W923

    W923 Medium Load Member

    390
    1,403
    Feb 28, 2022
    0
    Currently, but I know some of the old budd wheels had rough punched center holes that were probably 11 5/16 or whatever they got when they punched them
    I bet this is what milemarker is thinking of based on his latest post

    mile marker 27 and spsauerland Thank this.
  9. spsauerland

    spsauerland Road Train Member

    4,282
    10,805
    May 31, 2010
    West Harrison, In
    0
    I have seen a guy machine spacers to put in the budds to make them "truer" hub-piloted wheels.

  10. Big Road Skateboard

    Big Road Skateboard Road Train Member

    2,149
    9,602
    May 2, 2021
    0
    Gotcha. Thought you were mentioning the hub, and thought the moving wheel may have made the marks mentioned. Glad you got em swapped

    Last edited: Aug 4, 2022
  11. jamespmack

    jamespmack Road Train Member

    17,459
    193,571
    Mar 25, 2014
    OH
    0

    Seems like a awful alot of work.
