Can’t find coolant leak!

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by roadrunner_PV, Feb 6, 2025.

  1. roadrunner_PV

    roadrunner_PV Bobtail Member

    4
    3
    Feb 6, 2025
    0

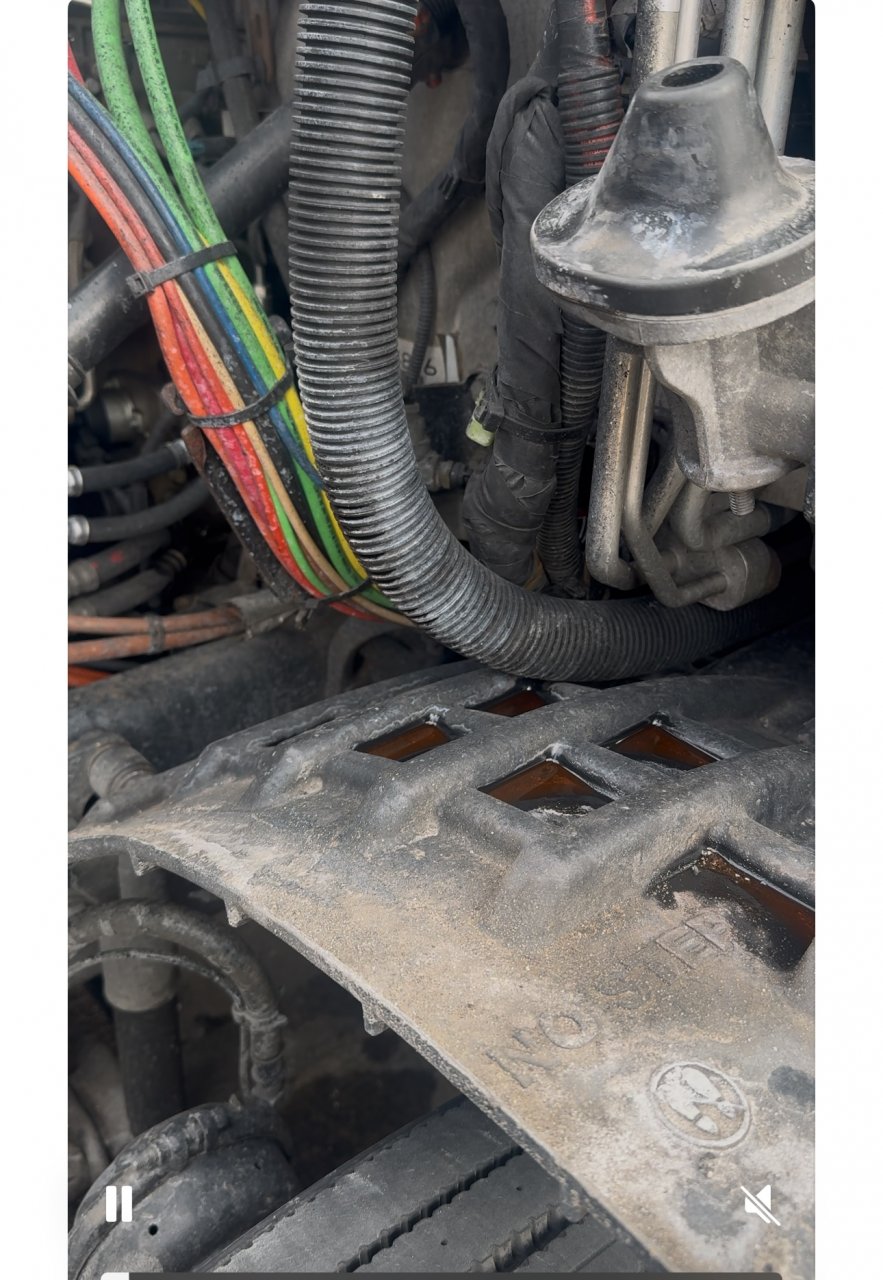

    Hello, was at shipper today and smelled sweet coolant smell. I look under hood and seen coolant by the driver side wheel weld or splash guard. Check every where. I checked heater core bunker lines everything is dry.


    Attached Files:

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. rollin coal

    rollin coal Road Train Member

    13,021
    25,603
    Mar 29, 2008
    TN
    0
    That's common on newer Cascadias. Tighten up all your coolant hose clamps. On the other side of the engine there's also a block of some sort above the valve cover that has coolant lines going into it hanging there up over the EGR and turbo. Those will leak too. Top it up, run it, check again.

  4. Big Road Skateboard

    Big Road Skateboard Road Train Member

    5,514
    28,154
    May 2, 2021
    0
    Look around the left front of engine. Look like a Cascadia, I'm figuring something around water pump blowing back

    Rideandrepair Thanks this.
  5. roadrunner_PV

    roadrunner_PV Bobtail Member

    4
    3
    Feb 6, 2025
    0
    Dry nothing leaking

    Rideandrepair Thanks this.
  6. Big Road Skateboard

    Big Road Skateboard Road Train Member

    5,514
    28,154
    May 2, 2021
    0
    You may not see wet antifreeze. Probably dry residue

    Rideandrepair Thanks this.
  7. roadrunner_PV

    roadrunner_PV Bobtail Member

    4
    3
    Feb 6, 2025
    0
    I just left out of snow truck is full of salt. I’m unsure if it is salt.

    Rideandrepair Thanks this.
  8. Rideandrepair

    Rideandrepair Road Train Member

    17,112
    55,573
    Aug 8, 2015
    0
    Take a bigger picture of the whole engine compartment, above, in front, and around the coolant. Post it for expert analysis. Lol

    JonJon78 Thanks this.
  9. rollin coal

    rollin coal Road Train Member

    13,021
    25,603
    Mar 29, 2008
    TN
    0
    We had a bunch of newer Cascadias where I'm at leaving puddles of coolant on top of the plastic wheel well guard driver's side just like that pic. Turned out to be loose hose clamps.

    Rideandrepair Thanks this.
  10. roadrunner_PV

    roadrunner_PV Bobtail Member

    4
    3
    Feb 6, 2025
    0
    Do you know what hose clamp it was? I kinda went through them but not all of them. Going to check a bit more in detail tomorrow.

    Rideandrepair Thanks this.
  11. rollin coal

    rollin coal Road Train Member

    13,021
    25,603
    Mar 29, 2008
    TN
    0
    Just go over all of them to make sure they're snug. There's probably tell-tale dried traces somewhere you're overlooking if no outright dampness/drips anywhere. Without looking at it in person though I just say try the easy first and see if your coolant loss stops. With the trucks we had it was brand new ones that came in doing exactly what your pic showed puddling on the wheel well. Mine (2 years old) was losing coolant but not puddling on the wheel well like that. Some clamps were loose was all it was both cases.

    Rideandrepair and roadrunner_PV Thank this.
