Compass is off.

Discussion in 'International Forum' started by 2013Maxx, Apr 29, 2021.

  1. 2013Maxx

    2013Maxx Light Load Member

    75
    17
    Jan 17, 2018
    0
    Does anyone know how to calibrate the compass in a 2013 ProStar?

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. tscottme

    tscottme Road Train Member

    6,737
    10,338
    Jul 25, 2008
    Nashville, TN
    0
    Is it possible you have a speaker, or other magnet-containing item near the compass?

    Is the compass error consistent no matter which way you are facing? For example, it seems to be about 30 deg in error? Or, it the compass pretty accurate when facing certain directions?

  4. Ridgeline

    Ridgeline Road Train Member

    17,731
    75,079
    Dec 18, 2011
    Michigan
    0
    The dealer will tell you how to calibrate it, I think there has to be facing specific directions and do something with one of the controls.

    2013Maxx Thanks this.
  5. Heavyd

    Heavyd Road Train Member

    7,227
    5,415
    Feb 4, 2009
    0

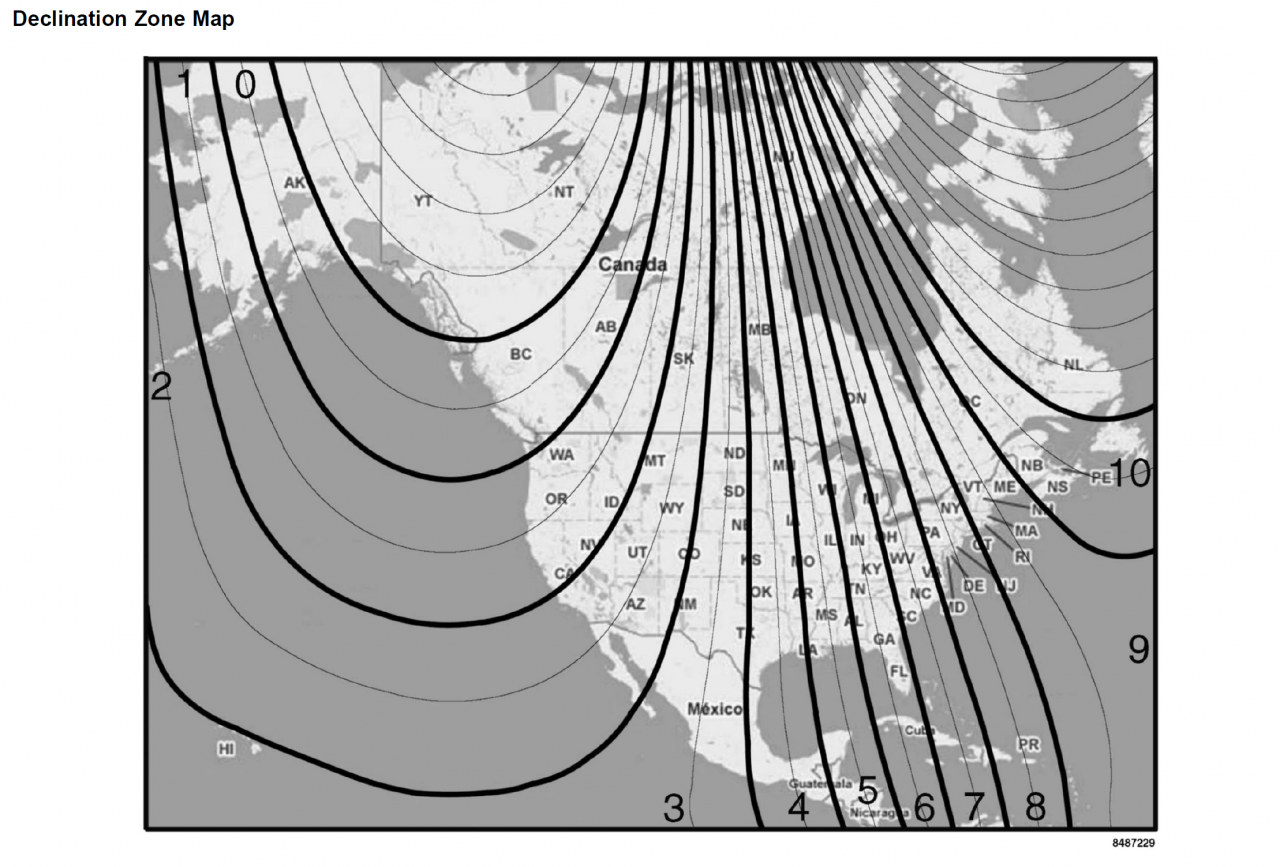

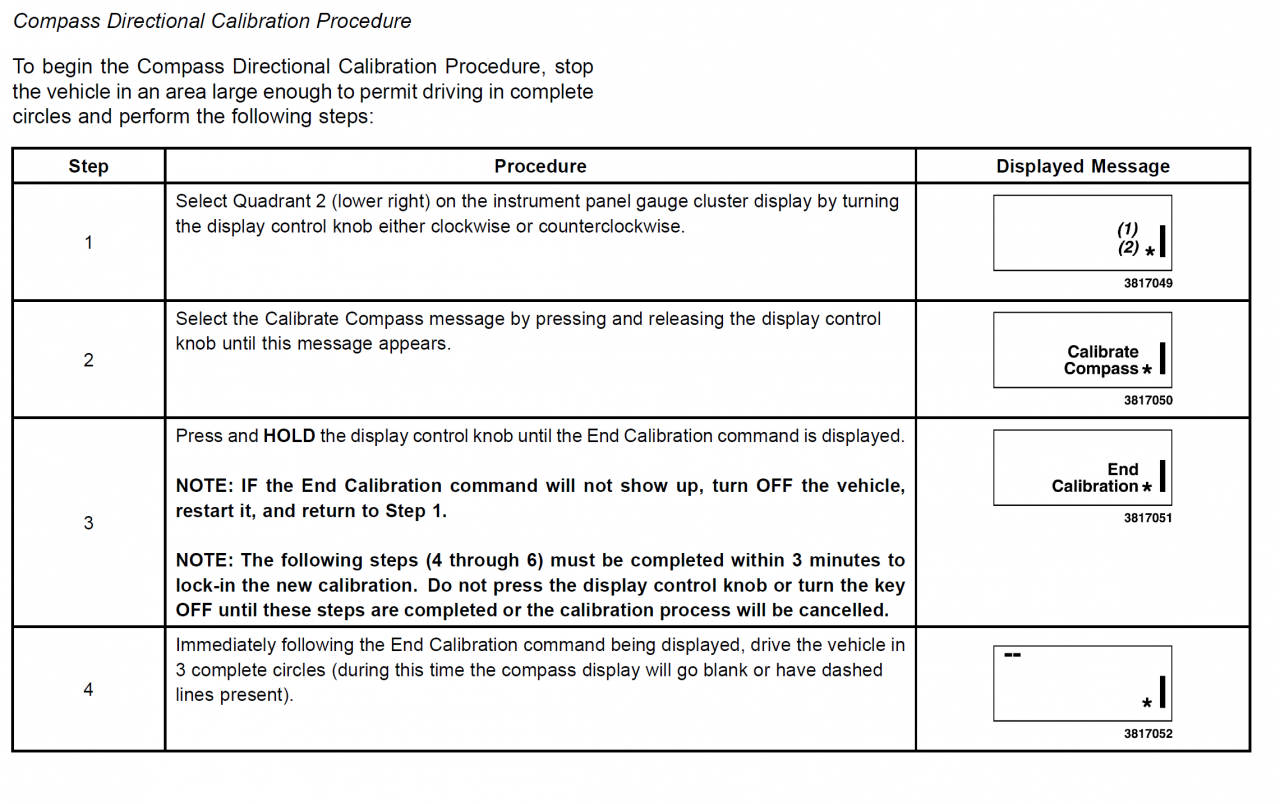

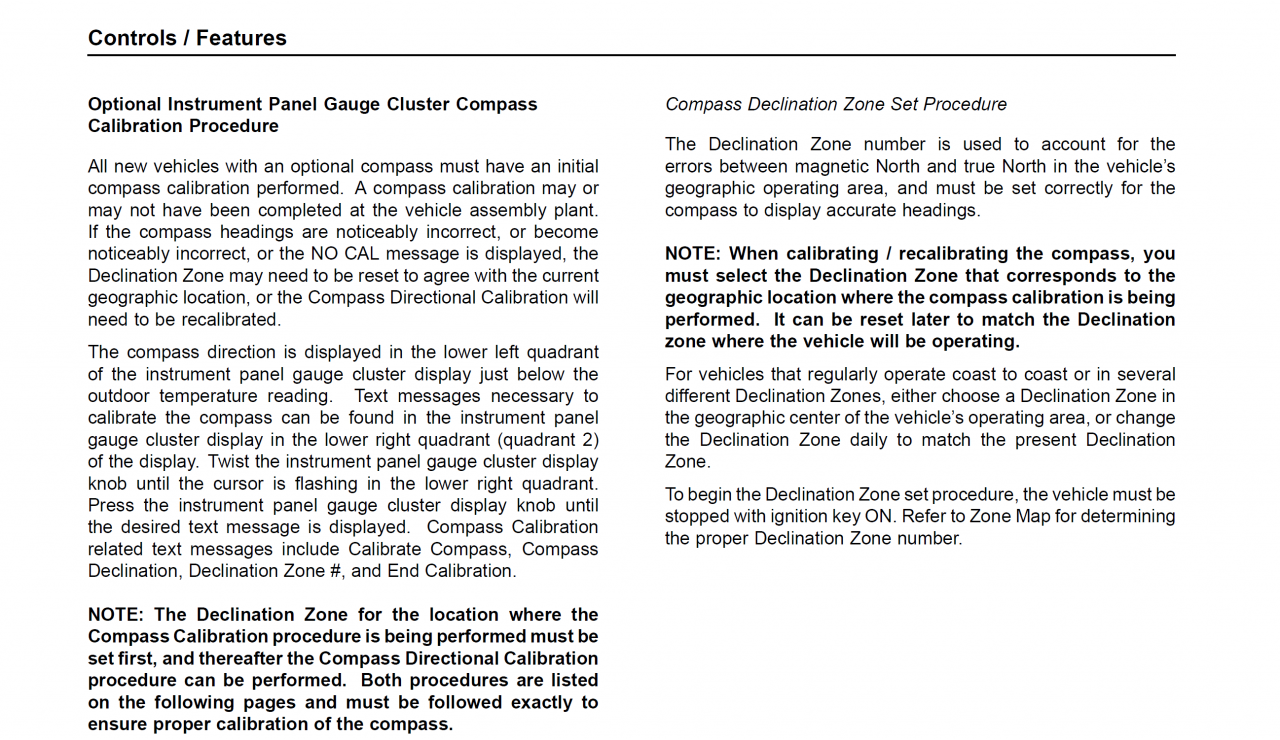

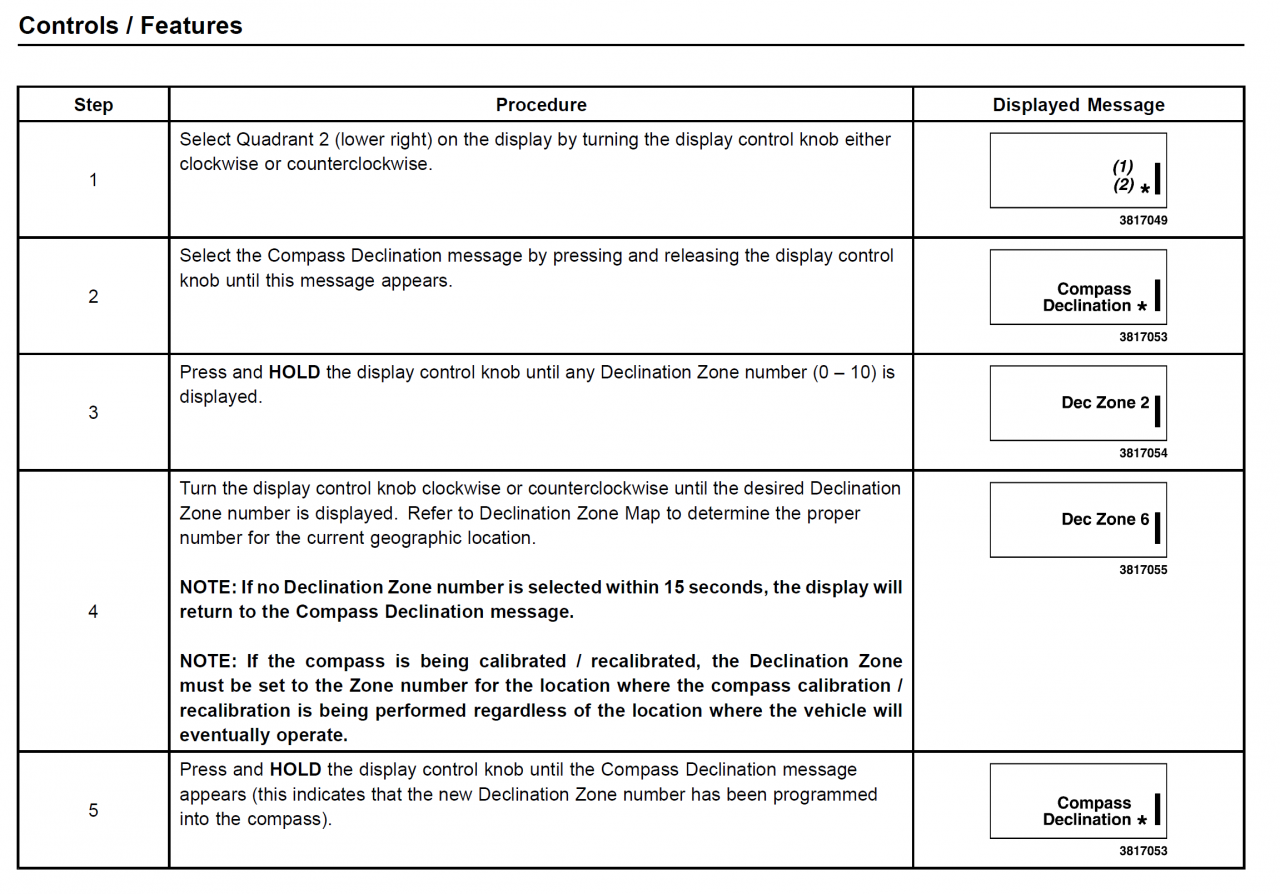

    This is from the owners manual.
    Compass 1.png Compass 2.png Compass 3.png Compass 4.png Compass 5.png

    2013Maxx Thanks this.
  6. ChuckMartel

    ChuckMartel Light Load Member

    119
    72
    Jan 22, 2021
    0
    Unless it’s been updated the Operators Manual is wrong, there’s an Iknow showing the correct method. I’ll get some pics.

    2013Maxx Thanks this.
  7. 2013Maxx

    2013Maxx Light Load Member

    75
    17
    Jan 17, 2018
    0
    Thanks fellas!! I’ll try it out this weekend

    Heavyd Thanks this.
  8. prostartom

    prostartom Bobtail Member

    19
    51
    Jun 20, 2014
    0
    Try driving around in circles in an open lot, that's how you used to calibrate them. I know it sounds crazy.

    2013Maxx and QUALITYTRUCK Thank this.
  9. QUALITYTRUCK

    QUALITYTRUCK Road Train Member

    1,603
    1,477
    Jun 14, 2009
    romulus,mi
    0
    You may be crazy, but not because of this answer! LOL. That is how you calibrate with cars, might be the same with trucks.

    2013Maxx Thanks this.
  10. 2013Maxx

    2013Maxx Light Load Member

    75
    17
    Jan 17, 2018
    0
    Yup, that did the trick. I followed the directions then drove in a circle lol

    Heavyd, prostartom and Wasted Thyme Thank this.
