Cottrell C7512 help

Discussion in 'Car Hauler and Auto Carrier Trucking Forum' started by peanut 21, Sep 26, 2020.

  1. peanut 21

    peanut 21 Light Load Member

    71
    5
    Oct 16, 2013
    0
    Do anybody have any experience with loading this trailer im new to this trailer and its kinda difficult to load any help is appreciated

    truckdriver31 Thanks this.
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. truckdriver31

    truckdriver31 Road Train Member

    5,460
    6,003
    Sep 18, 2013
    0
    lots of utube videos

  4. peanut 21

    peanut 21 Light Load Member

    71
    5
    Oct 16, 2013
    0
    Thats a high rail I have a stinger

    truckdriver31 Thanks this.
  5. peanut 21

    peanut 21 Light Load Member

    71
    5
    Oct 16, 2013
    0
    This my rig


    Attached Files:

    truckdriver31 Thanks this.
  6. truckdriver31

    truckdriver31 Road Train Member

    5,460
    6,003
    Sep 18, 2013
    0
    all im saying is watch some videos

  7. Tropsnart

    Tropsnart Heavy Load Member

    814
    1,399
    Jun 8, 2015
    Pavilion New York
    0
    Load the tractor to give yourself as much turning room as possible. In your photo I would back the second Tacoma on if it has to be loaded there. Ideally you should load that where the length can just be overhang and not interference. When I ran that 7512 I always tried to put the cars on the tractor all the way forward and the cars on the trailer as far back as possible.
    On the trailer forget about hauling 7 unless they are tiny or you can run pretty high. To haul 6 on it, back the first top on the solo deck, leave the middle car as far back as you can drive it on, drive the back top on. Then load the bottom front as far forward as possible, back 2nd bottom as far forward as possible (this will help get the height down). Drive or back the back bottom and drop it down as far as possible.
    I sure don't miss loading that trailer.

    Doealex Thanks this.
  8. Banker

    Banker Road Train Member

    2,247
    4,717
    Aug 19, 2012
    0

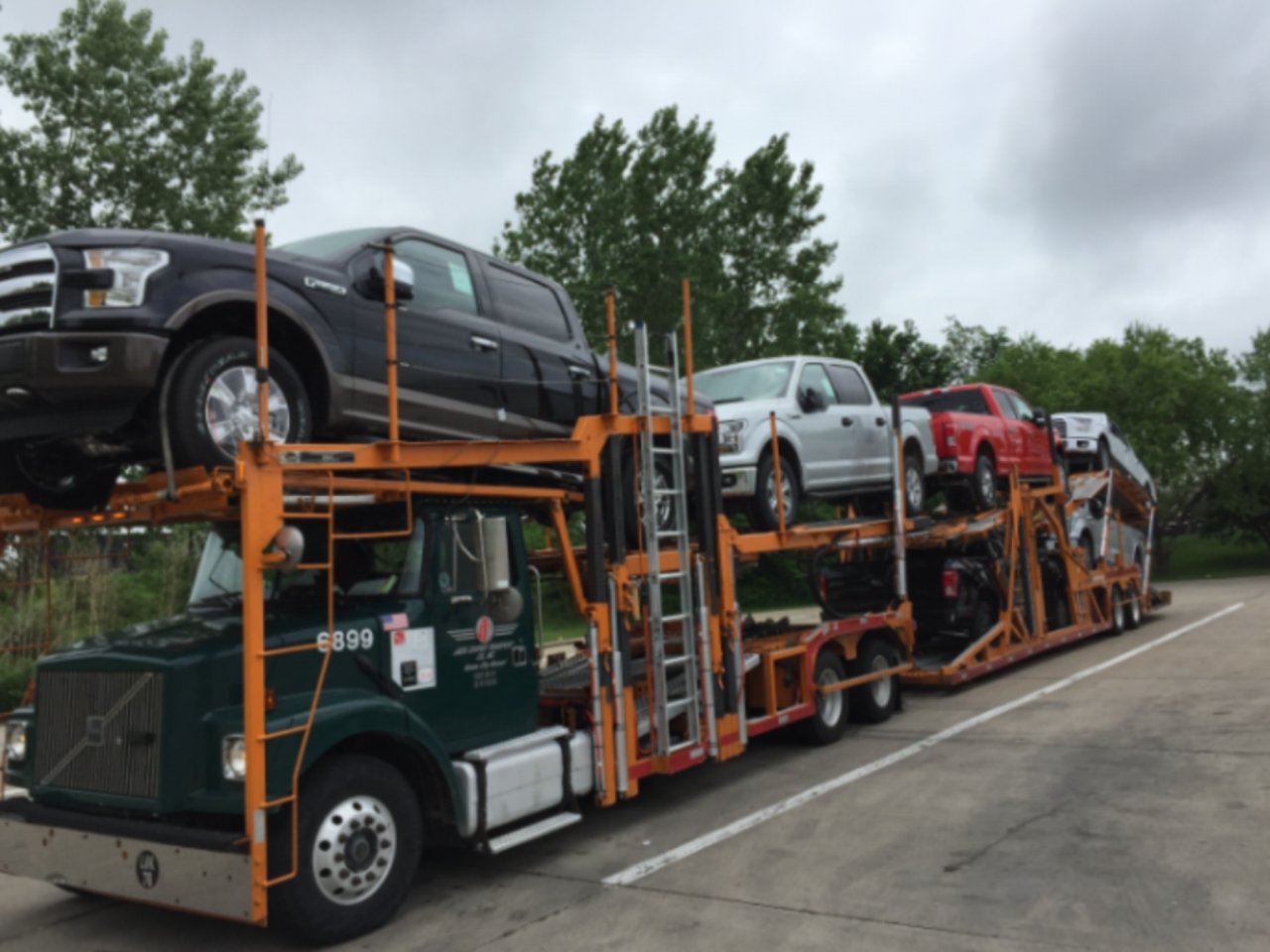

    I don’t remember the model number of the one I drove, but I think other than a daycab this is similar to load the trailer. Backing a pickup on the top front of the trailer was safer on mine. 012E3587-AE8A-4BA6-BE8C-CE768A8A8109.png 87C7F026-D9F8-42C5-8B21-8BECB50014B4.png

  9. peanut 21

    peanut 21 Light Load Member

    71
    5
    Oct 16, 2013
    0
    What is the purpose of this


    Attached Files:

  10. Banker

    Banker Road Train Member

    2,247
    4,717
    Aug 19, 2012
    0
    Height is lower than with them facing the same direction in this position.

  11. Kawinige01

    Kawinige01 Heavy Load Member

    753
    888
    May 30, 2016
    South Fla
    0
    They company who got that as a new unit. Modified the hell out of there trailers. I think it may bend the deck to lower the height on taller units. But I’ve never seen anyone use them so I could be wrong. Slide that back bottom car out and drop it down you’re allowed 6 feet of overhang sometimes you need all 6 to get your height down
