Cracked/Rusted trailer c-channel

Discussion in 'Ask An Owner Operator' started by Intnav, Nov 20, 2019.

  1. Intnav

    Intnav Bobtail Member

    1
    1
    Nov 20, 2019
    0

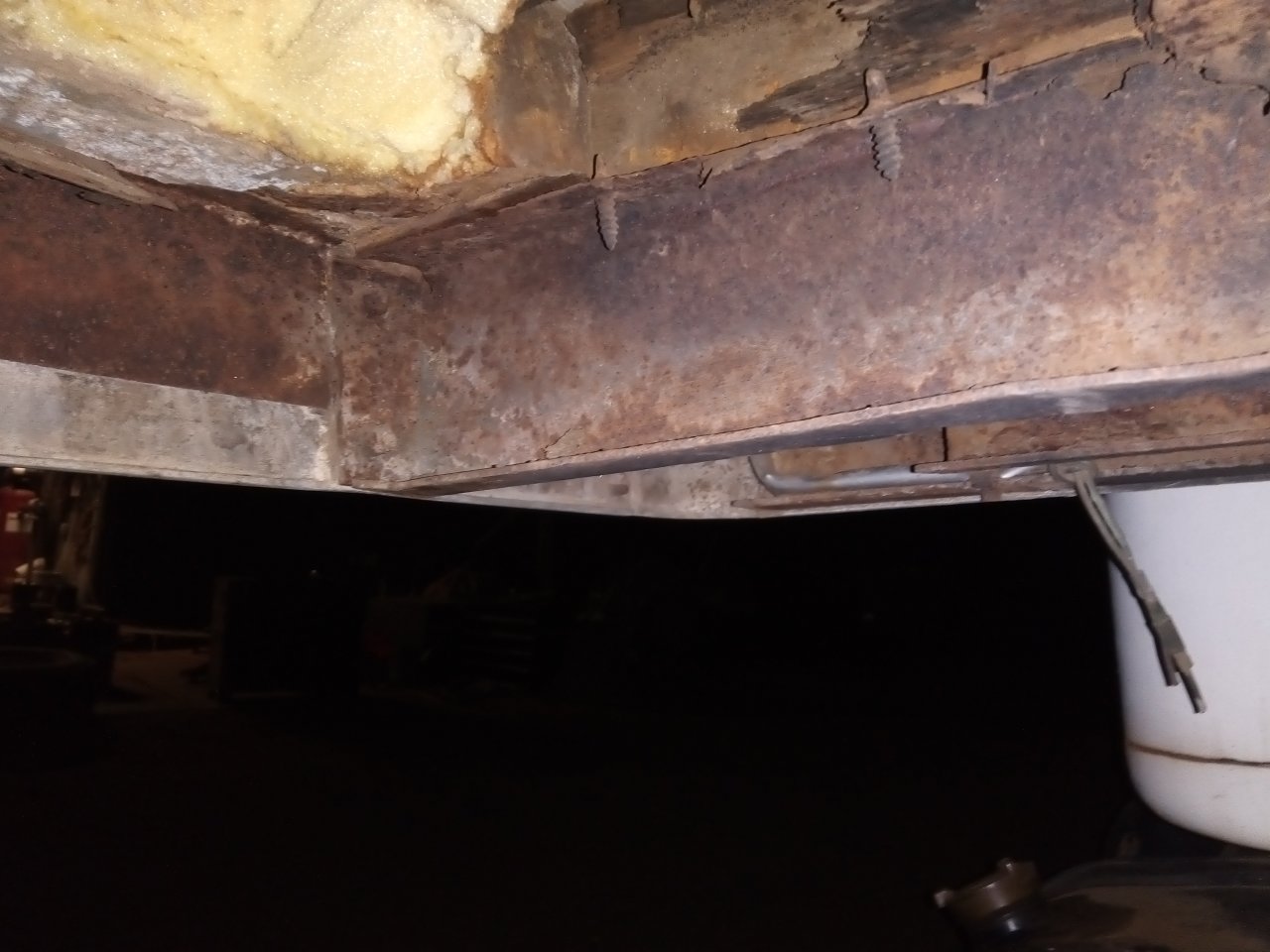

    I have an 87' International bobtail, basically a full resto. Converting to a dry box, used to be a reefer truck. ANYBODY know the legal way to repair damaged, cracked, and or rotted trailer c- channels.
    Do I have to replace each C-channel, or can I butt weld/add plate (what size, any specific weld type) to some of the more corroded ones? Any proper suggestions will help, THANKS!
    (Will post more pics very soon!)


    Attached Files:

    SimpleTrucker Thanks this.
  2. snowwy

    snowwy Road Train Member

    16,708
    8,480
    Jul 6, 2009
    0
    Not the same truck. But I drove a w900 once for a construction company.
    It had a crack in the frame by the steering box. Supposedly it was a common problem. I don't remember what year the truck was. I wanna say 99.

    The shop welded the crack. And bolted a plate on both sides of the frame. A splint. 1/4" plating.

    It never held.

    Don't know what they ended up doing with the truck.

    Something to think about on your quest for repairs.

    Intnav Thanks this.
  3. DaytonTD

    DaytonTD Bobtail Member

    2
    2
    Jul 14, 2019
    0
    Here in Canada the I-beams rot in the centers from the salt, instead of cutting the end rail off and unscrewing all of the deck to replace the I beam they take 1/8" flat plate and stitch weld a piece on both sides in between the top and bottom lip. Either 2' sections on the ends or a 4' section in the center, whichever is rotted. Not sure about the top itself being rotted, I'd think that the entire section would have to be replaced but I could be wrong.

    Intnav Thanks this.
  4. xsetra

    xsetra Road Train Member

    3,441
    3,165
    Aug 21, 2011
    0
    The best way is to remove the entire "C" channel, cross member.

    I replaced a few in my drop deck trailer that way.

    I bought a trailer that someone just ground off the deck bolts and put another channel inside the rotted section. Then welded that in place.

    What ever works, I guess.
    I don't know if one is better than the other. Both ways work.

    Good luck
