Cracking rubber air lines... is there a way to fix?

Discussion in 'Trucks [ Eighteen Wheelers ]' started by HopeOverMope, Jun 4, 2020.

  1. HopeOverMope

    HopeOverMope Road Train Member

    1,800
    2,968
    Feb 25, 2016
    I-20 LOUISIANA
    0

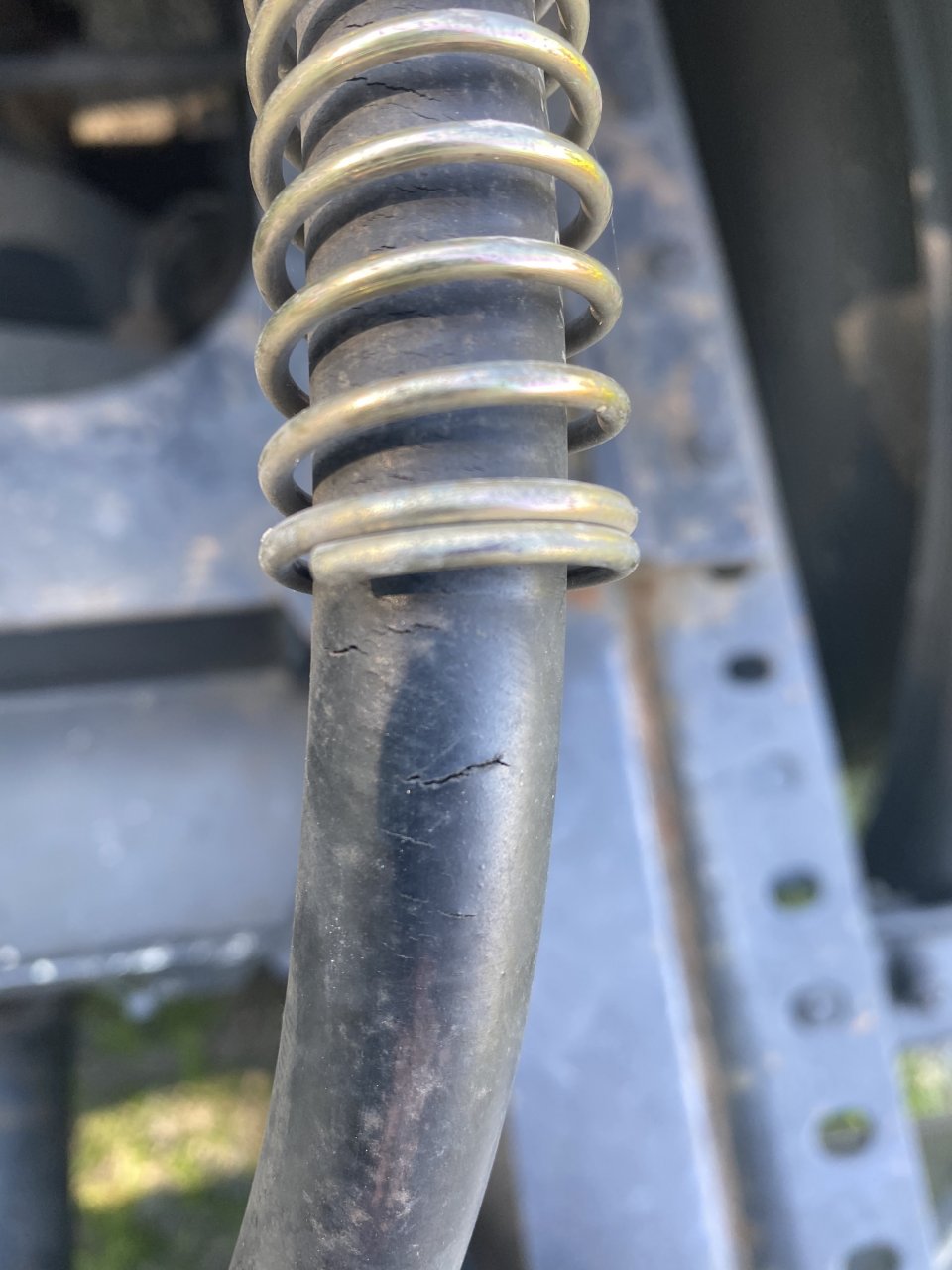

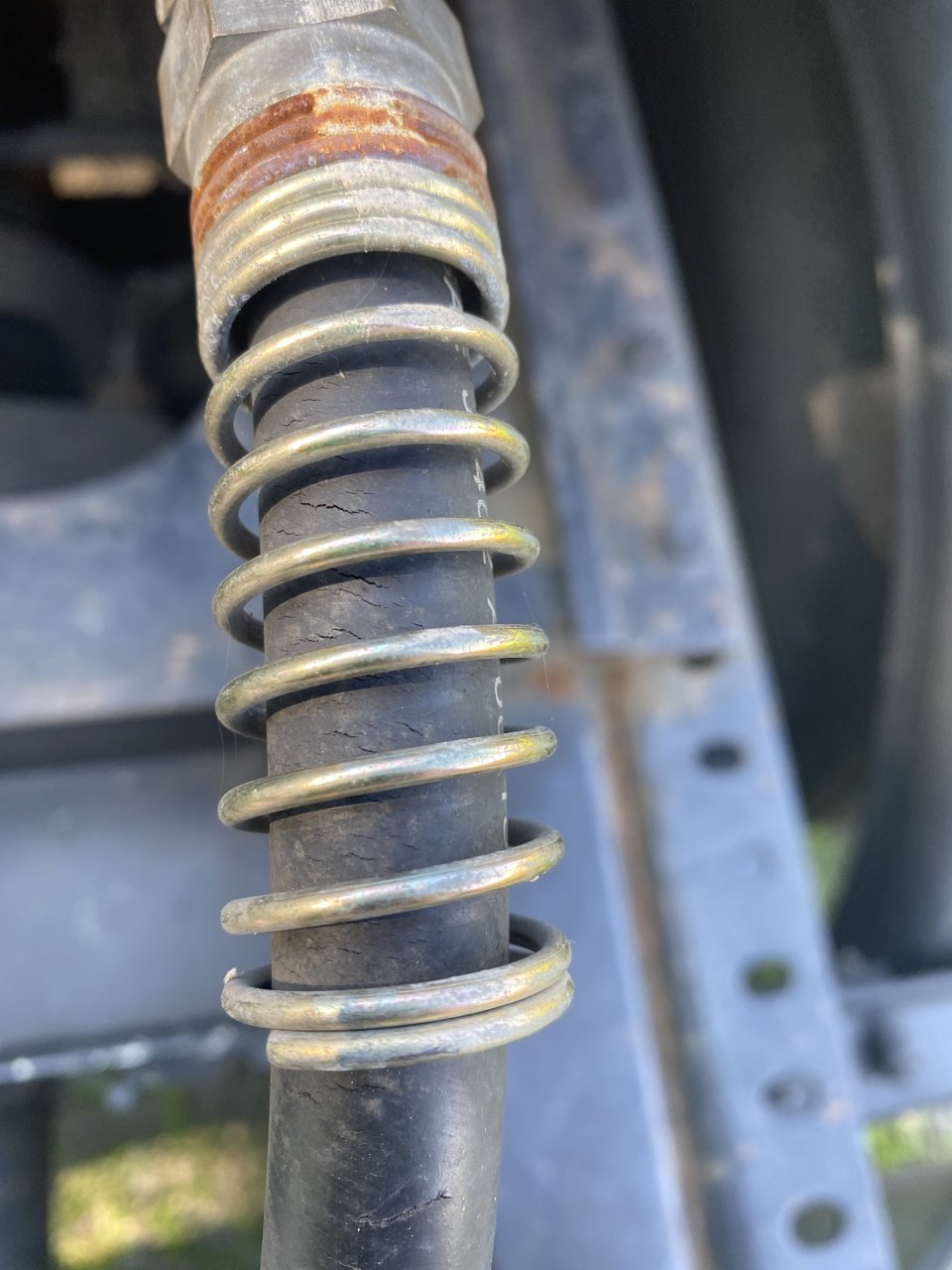

    As you can see below, I got some cracks occurring on my air line. This is the cab to trailer red side air supply going to the trailer. This is the part right before the gladhand. It’s the velvac brand and I only bought them about 2 years ago tops... for about $200 for the 3 in one bundle.

    Anybody know of a way to fix this? Can you fix this with a hose splitter/coupler kit? Or are those only for plastic? You can see there’s only one crack just past the springs that’s a little iffy. Or do I just buy a whole new set and do the install again.

    PS I think the weight is causing these cracks? I got the lines held up with 2 springs where I won’t touch the catwalk. So must of the pressure of weight is relieved, but there’s some still on it too of course.

    Thanks 84945DEF-C0AB-4AF6-9B90-0853885C0B4F.jpeg A6AB3F93-B64B-495F-B054-A173D3689F8D.jpeg

    truckdriver31 Thanks this.
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. okiedokie

    okiedokie Road Train Member

    4,121
    6,661
    Jun 13, 2011
    PNWET
    0
    If it's cracked there it's probably cracked or will crack other places. Replacement.

    tommymonza, magoo68, Tb0n3 and 4 others Thank this.
  4. Doealex

    Doealex Medium Load Member

    403
    711
    Feb 21, 2018
    0
  5. clausland

    clausland Road Train Member

    1,116
    3,369
    Dec 5, 2014
    North Woods
    0
    I don't think the weight is causing them to crack, more likely UV rays, they're real tough on rubber. You'll likely need to replace them before the man sees them, sucks I know. There's various UV protectant sprays that'll help prevent this, or at least prolong their life...
    [​IMG]

  6. blairandgretchen

    blairandgretchen Road Train Member

    8,549
    36,809
    Dec 9, 2011
    South west Missouri
    0
    I’d just replace them.

  7. Doealex

    Doealex Medium Load Member

    403
    711
    Feb 21, 2018
    0
    That’s why I use cheaper plastic coils. They will get discolored before they crack. But I agree, rubber ones look neater.

    HopeOverMope and truckdriver31 Thank this.
  8. truckdriver31

    truckdriver31 Road Train Member

    5,109
    5,551
    Sep 18, 2013
    0

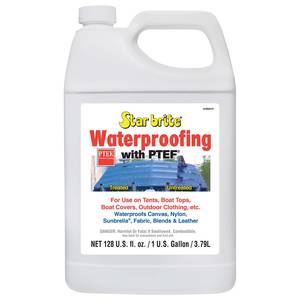

    i get this on amazon for $41 a gallon 1F249FCB-A3B1-4A4C-8643-6CB7448C5E5F.jpeg

    HopeOverMope Thanks this.
  9. truckdriver31

    truckdriver31 Road Train Member

    5,109
    5,551
    Sep 18, 2013
    0
    you can get hose fittings made at napa

    Last edited: Jun 4, 2020
    Dino soar and HopeOverMope Thank this.
  10. baha

    baha Road Train Member

    3,400
    1,912
    Jul 25, 2013
    ga
    0
    Its best to replace them but if the hoses are long enough you can cut off the cracked end and take the pinch inside the end of hose and slide it on the cut off end then tighten it up?

    HopeOverMope Thanks this.
  11. Rideandrepair

    Rideandrepair Road Train Member

    6,708
    10,147
    Aug 8, 2015
    0
    All you have to do, is take the fitting apart, cut the dry cracked part off, and re install, using a new compression Ferrell. Keep a couple extras, in case it ever happens again.

    Dino soar, HopeOverMope and Doealex Thank this.
