Drill 1 hole, bad?

Discussion in 'Experienced Truckers' Advice' started by RepoweredRookie, Mar 17, 2023.

Page 1 of 2
  1. Mar 17, 2023 #1
    RepoweredRookie

    RepoweredRookie Light Load Member

    81
    60
    Apr 16, 2019
    0
    6C9D5E4D-AE68-44C8-BB11-32DFD453B991.jpeg Hey Guys,

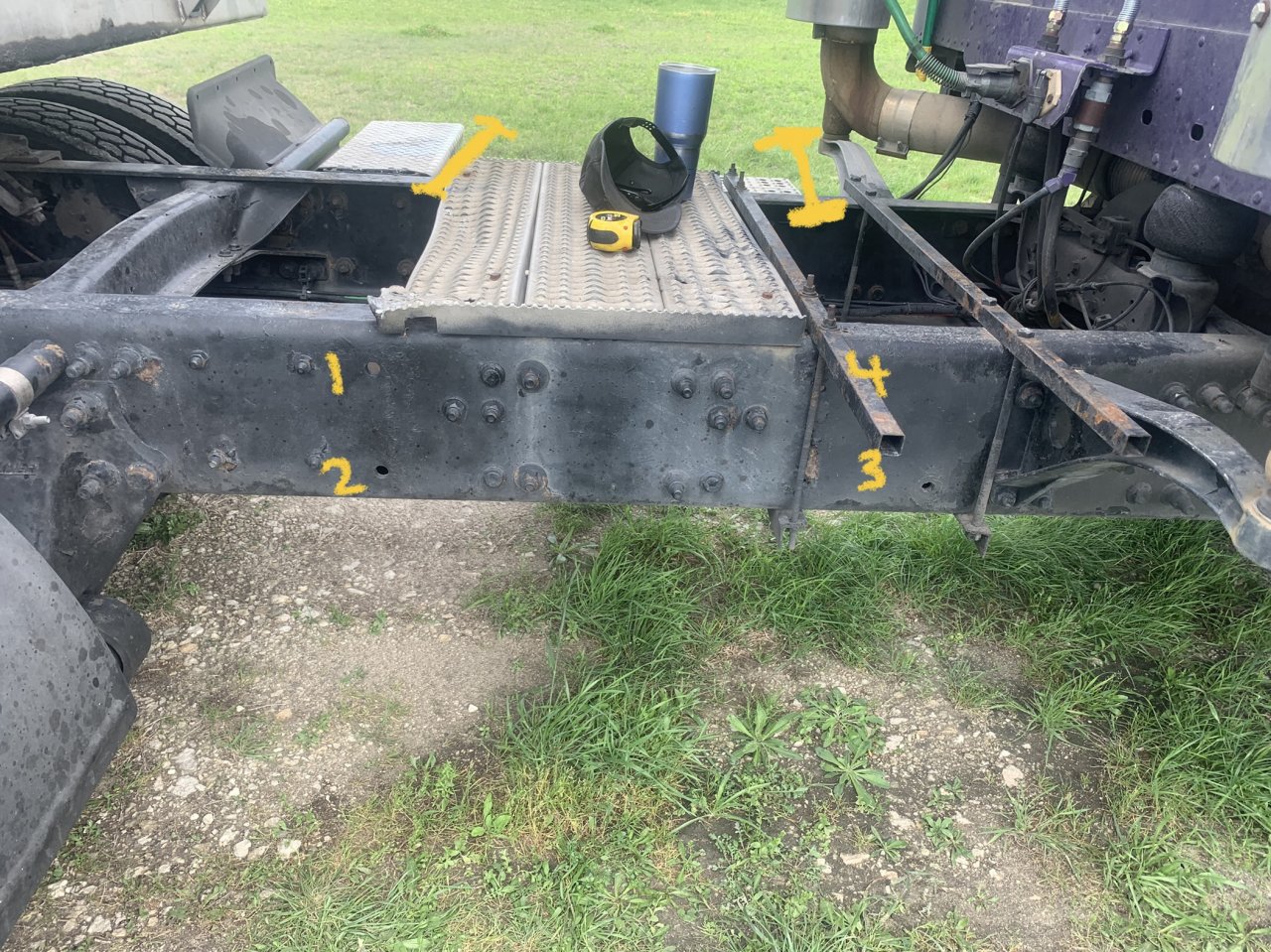

    1999 Freightliner Century, with average rust on the frame. I would like to hang a box on the passenger side, but will need to drill 1 hole in the side of the frame. Is this risky with the truck being so old, and somewhat rusty? Pic attached, #4 is where I need to drill. Yellow marks above coffee cup shows box already mounted same exact spot, opposite side of truck. Thanks!

    RepoweredRookie, Mar 17, 2023
    RepoweredRookie, Mar 17, 2023
    #1 + Quote Reply
    jamespmack Thanks this.
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Mar 17, 2023 #2
    lester

    lester Midwest's #1 Feed Hauler

    2,546
    6,537
    Jan 2, 2012
    NW, Iowa
    0
    Not gonna hurt a thing.

    lester, Mar 17, 2023
    lester, Mar 17, 2023
    #2 + Quote Reply
    Bean Jr., God prefers Diesels, YardMule89 and 2 others Thank this.
  4. Mar 17, 2023 #3
    SmallPackage

    SmallPackage Road Train Member

    3,933
    11,674
    Dec 20, 2019
    Marion Texas
    0
    That rust is only on the surface. You will discover real quick just how solid that frame still is once you try to get a bit to go through it.

    SmallPackage, Mar 17, 2023
    SmallPackage, Mar 17, 2023
    #3 + Quote Reply
    Bean Jr., dunchues, God prefers Diesels and 4 others Thank this.
  5. Mar 17, 2023 #4
    jamespmack

    jamespmack Road Train Member

    18,414
    200,996
    Mar 25, 2014
    OH
    0

    Will not hurt anything. But word of advise, do not drill above or below current bolts going towards flange. That's were it's heat treated, you will have a really hard time.

    Heat treat is in flanges, not center of web.

    jamespmack, Mar 17, 2023
    jamespmack, Mar 17, 2023
    #4 + Quote Reply
    Bean Jr., bzinger, God prefers Diesels and 2 others Thank this.
  7. Mar 17, 2023 #5
    Long FLD

    Long FLD Road Train Member

    8,167
    31,040
    Mar 4, 2015
    0
    If you have one or if there’s a tool rental place close that has one…..using a mag drill will make it a lot easier on yourself.

    Long FLD, Mar 17, 2023
    Long FLD, Mar 17, 2023
    #5 + Quote Reply
    Bean Jr., Diesel Dave, D.Tibbitt and 3 others Thank this.
  8. Mar 17, 2023 #6
    jamespmack

    jamespmack Road Train Member

    18,414
    200,996
    Mar 25, 2014
    OH
    0

    You can, 4 holes you can do with a cordless drill. Just know if your big bit, is high speed, or low speed. You really wanna zip holes buy a a fluted reamer bit. Drill a pilot hole, and a good 1/2 cordless will walk right thru it. If your moving axles or changing mounts, the mag drill is your best friend.

    jamespmack, Mar 17, 2023
    jamespmack, Mar 17, 2023
    #6 + Quote Reply
    Bean Jr., D.Tibbitt, God prefers Diesels and 3 others Thank this.
  9. Mar 17, 2023 #7
    Long FLD

    Long FLD Road Train Member

    8,167
    31,040
    Mar 4, 2015
    0
    The only holes I’ve drilled were for mounting a lift axle. And renting a mag drill for a day was the choice I made. Lol

    Long FLD, Mar 17, 2023
    Long FLD, Mar 17, 2023
    #7 + Quote Reply
    Bean Jr., wore out, Diesel Dave and 4 others Thank this.
  10. Mar 17, 2023 #8
    jamespmack

    jamespmack Road Train Member

    18,414
    200,996
    Mar 25, 2014
    OH
    0

    I once did frame inserts and swapped from reyco, to KW 8 bag. Shop boss was kinda a prick. Company owner seen this and told us to stop. He would get a mag drill and we can resume when it shows up.

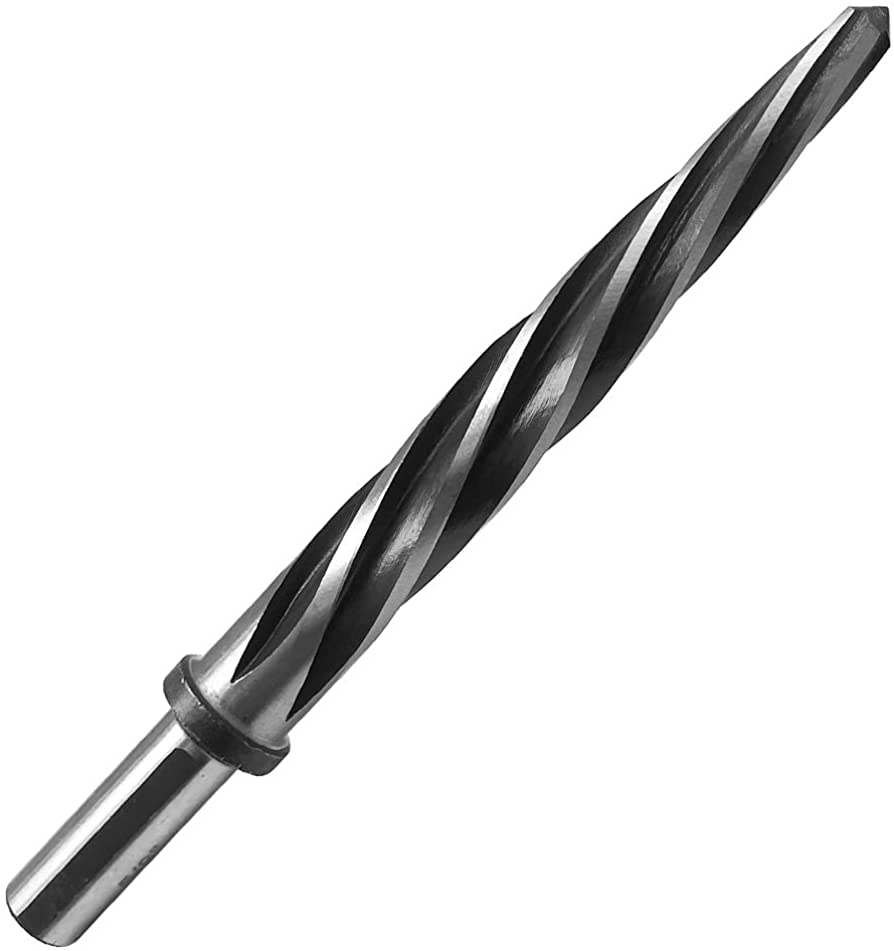

    This is just for a picture. I have no idea the specific brand quality. This will get it done. Now put this in a mag drill and it's like slicing butter.


    jamespmack, Mar 17, 2023
    jamespmack, Mar 17, 2023
    #8 + Quote Reply
    Bean Jr., God prefers Diesels, RepoweredRookie and 2 others Thank this.
  11. Mar 17, 2023 #9
    RepoweredRookie

    RepoweredRookie Light Load Member

    81
    60
    Apr 16, 2019
    0
    Guys, thank you for all the great advice! Been considering this for a while but didn’t want to make more problems for myself. Tried researching this on the internet, but nothing as good as truckers that “been there, done that”. Thanks again, really appreciate the responces!

    RepoweredRookie, Mar 17, 2023
    RepoweredRookie, Mar 17, 2023
    #9 + Quote Reply
    jamespmack Thanks this.
  12. Mar 17, 2023 #10
    Ridgeline

    Ridgeline Road Train Member

    19,470
    92,457
    Dec 18, 2011
    Michigan
    0
    Magnetic drill and use an annular cutter not a drill bit.

    Ridgeline, Mar 17, 2023
    Ridgeline, Mar 17, 2023
    #10 + Quote Reply
    Diesel Dave and AModelCat Thank this.
