Dyno result

Discussion in 'Ask An Owner Operator' started by Newbieboy, Nov 23, 2020.

  1. Newbieboy

    Newbieboy Light Load Member

    91
    25
    Apr 3, 2019
    0
    Can anyone please read me this dyno result please. Share your thoughts on the report

    i think rpm is high.. i can be wrong.. please advise thanks


    Attached Files:

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. AModelCat

    AModelCat Road Train Member

    19,424
    86,118
    Jul 7, 2015
    Canuckistan
    0
    What do you mean RPM is high?

    If that's power to the ground, I would say its fine. We dyno'd a new 500 hp Series 60 many years ago and saw 411 to the ground.

  4. magoo68

    magoo68 Road Train Member

    3,337
    5,104
    Jun 11, 2011
    st malo mb canada
    0
    84% of rated power to the ground is good. Most common reason to do a dyno is to measure blowby and hp to the ground. Just measuring hp seems a waste.

    Bean Jr., alds and Newbieboy Thank this.
  5. Ridgeline

    Ridgeline Road Train Member

    16,549
    68,466
    Dec 18, 2011
    Michigan
    0
    Where is the blowby, the most important number. But because it is above 75% of rated power, it looks good.

  6. Newbieboy

    Newbieboy Light Load Member

    91
    25
    Apr 3, 2019
    0

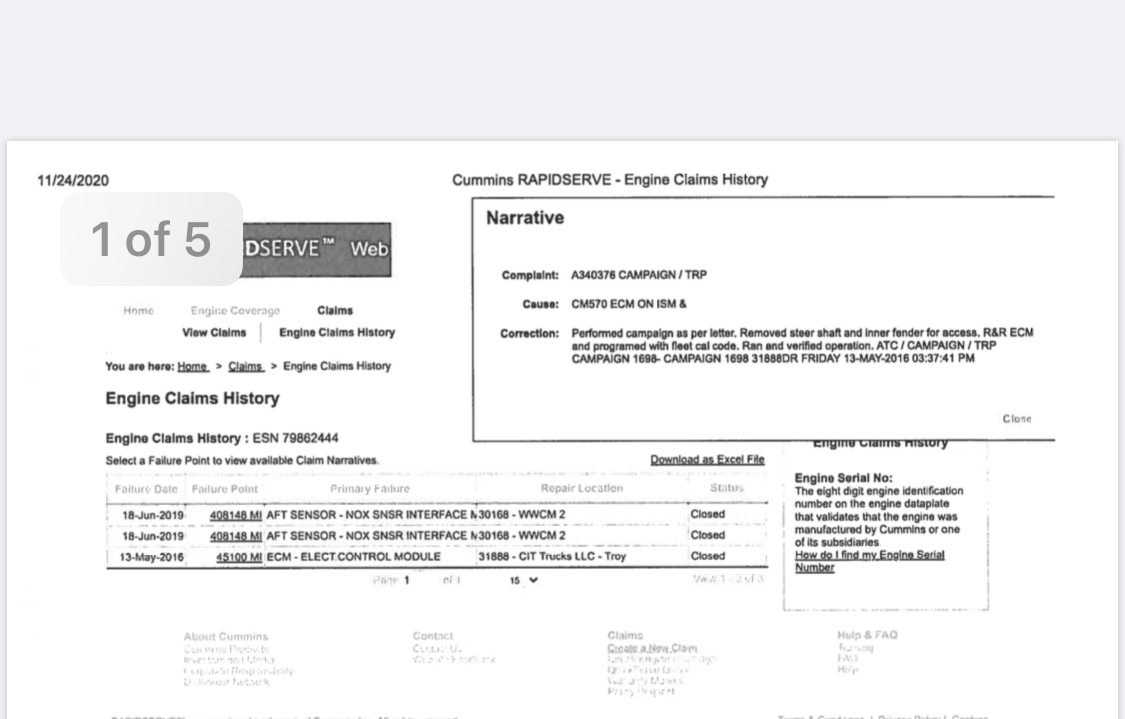

    I am buying truck from CSM KENWORTH WISCONSIN.. just now i got this repair detail from CSM. Currently truck have 428k miles on the dash. Ecm is replaced back in 2016.

    should i go for this truck or not?


    Attached Files:

  7. Newbieboy

    Newbieboy Light Load Member

    91
    25
    Apr 3, 2019
    0
    Currently truck have 428k miles back in 2019 June truck had 408148 miles. You guys think odometer is tempered? @Chinatown

  8. Newbieboy

    Newbieboy Light Load Member

    91
    25
    Apr 3, 2019
    0
    this is what i got reply from CSM KENWORTH...they are not allowing me to take truck to another shop...

    (There is no way to measure blow by on the newer dynos. We have not measured blow by for years.)

    Last edited: Nov 24, 2020
  9. dirthaller

    dirthaller Heavy Load Member

    700
    7,093
    Sep 22, 2011
    Coloratah
    0

    I did this on my 2014 ISX
    ETA: No, this isn’t me. I went to Lowes and bought the stuff to do it just like the video.

    Newbieboy and 650cat425 Thank this.
  10. AModelCat

    AModelCat Road Train Member

    19,424
    86,118
    Jul 7, 2015
    Canuckistan
    0
    Honestly its making good power I wouldn't even worry about checking blowby.

    spindrift and Newbieboy Thank this.
  11. Newbieboy

    Newbieboy Light Load Member

    91
    25
    Apr 3, 2019
    0
    What do you think about ECM replaced? 2016 to 2019 june truck put 408148? We are in Nov 2020 Truck have 428k miles on the dash. Getting kinda weird feeling.
