Eaton won't go into gear.

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by Bugsy1108, Jan 23, 2022.

  1. Bugsy1108

    Bugsy1108 Light Load Member

    52
    10
    Mar 20, 2019
    0
    2018 International LT
    X15 Cummins
    Eaton Fuller automated.

    Won't go into gear.
    Display flashes between F and N
    Occasionally stops and shows 27
    Fault codes are sa 3 spn 522 fmi 7

    Just had this serviced and never had troubles before. 590k

    Also makes a clunk sound, similar to shifting noise when the system starts up.

    Last edited: Jan 23, 2022
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. goga

    goga Medium Load Member

    699
    1,206
    Nov 11, 2021
    Earth..
    0
    Into what gear? Can't start moving? If so, clutch.

    Speedy356 Thanks this.
  4. Animosus

    Animosus Medium Load Member

    389
    629
    Dec 7, 2015
    SE Wyoming
    0
  5. Bugsy1108

    Bugsy1108 Light Load Member

    52
    10
    Mar 20, 2019
    0
    It doesn't go to any gear at all. We never had any problems or signs of problems and then we stopped at a fuel island and when we went to start the truck again... here's where we are.
    When you turn it to shift, it gives the same alert beeping you get if the engine is off and it's not in neutral.

    And now that you mention clutch I will say that for a long time this thing is real jerky when you're trying to be gentle backing up. Not having more experience with automatic transmissions I'd heard a lot of people say that they're just like, but I know in a standard, a clutch could cause that.

  6. goga

    goga Medium Load Member

    699
    1,206
    Nov 11, 2021
    Earth..
    0

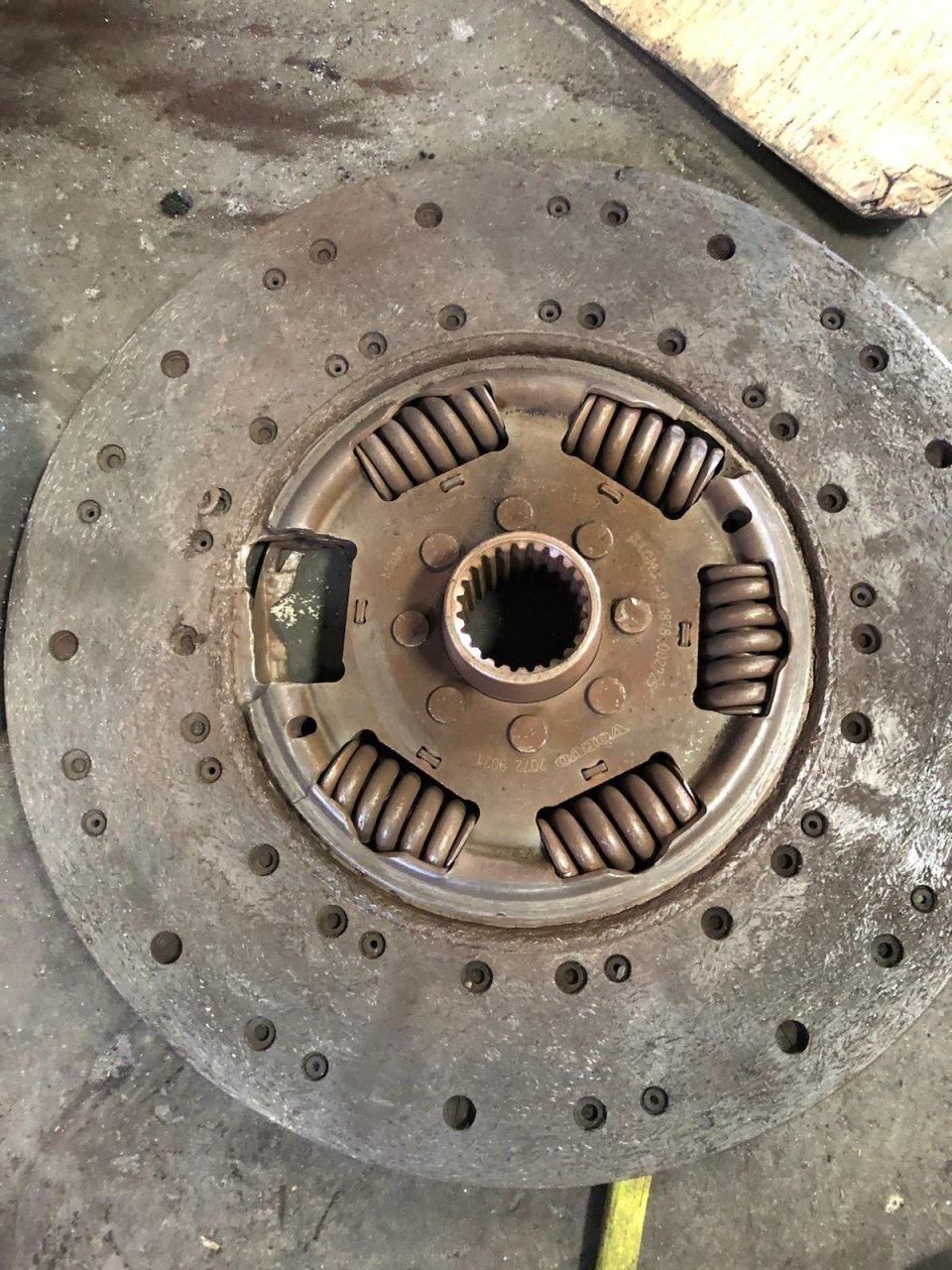

    I had to "pull start" one of the company's Volvo with IShift from MO to WA once (both full load) with the issue like that with a chain from trailer, won't start moving. Once it starts moving, it goes. After pulling transmission off there was one of the springs on the disk broken and stuck.


    Attached Files:

  7. Goodysnap

    Goodysnap Road Train Member

    2,894
    6,724
    Jul 12, 2017
    0
    Probably new clutch time, but needs troubleshot.

    Clutch failed to release

  8. Bugsy1108

    Bugsy1108 Light Load Member

    52
    10
    Mar 20, 2019
    0
    Just started working again. Gotta finish this run and head for a shop. Not doing this again.

  9. AModelCat

    AModelCat Road Train Member

    24,112
    120,156
    Jul 7, 2015
    Canuckistan
    0
    Just an FYI all the fault codes these days are standardized. There are lists you can find online. May be worth downloading them for future reference if you run into issues. At least gives you an idea of where to start searching.

    Roger McG and Bugsy1108 Thank this.
  10. Lazer

    Lazer Heavy Load Member

    869
    1,257
    Jan 22, 2017
    0
    Just wait till this happens at a RR crossing!
    Fun times had by all, not.

  11. Bugsy1108

    Bugsy1108 Light Load Member

    52
    10
    Mar 20, 2019
    0
    So now it's in the shop in Amarillo.
    On Monday, they said Wednesday.
    On Tuesday, they said Thursday.
    On Wednesday they said probably Friday... of next week.
    Time to fly home.
