Electric hook up for a lift axle solenoid control valve

Discussion in 'Trucks [ Eighteen Wheelers ]' started by Shawn19, Dec 5, 2024.

  1. Shawn19

    Shawn19 Light Load Member

    115
    34
    Apr 20, 2019
    0
    I have a dump truck with life axle I have to replace the solenoid control valve this valve send air to pickup or drop the axle the original one on there i can't find so have to get aftermarket my question is about the electric hook up can I just run a on/off toggle switch to this solenoid? I upload a picture of the solenoid


    Attached Files:

    Oxbow Thanks this.
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Ridgeline

    Ridgeline Road Train Member

    21,787
    110,509
    Dec 18, 2011
    Michigan
    0
    That may work but it is not intended for trucks.

    I would give airman products a call and they can set you up with the right one and tell you where to get it at.

    (248) 960-1354

    Oxbow Thanks this.
  4. Oxbow

    Oxbow Road Train Member

    11,817
    119,826
    Nov 24, 2015
    Idaho
    0
    Ridgeline may be correct, but what you show there looks similar to what I have. I have a manual toggle air switch outside of the cab to lift it as well. They can be temperamental when it is real cold, but other than that no problems.

  5. Shawn19

    Shawn19 Light Load Member

    115
    34
    Apr 20, 2019
    0
    I got a different one that made for truck but the hook up is the same I just want to know if the electric hook up i am doing it right.

    Oxbow Thanks this.
  6. Oxbow

    Oxbow Road Train Member

    11,817
    119,826
    Nov 24, 2015
    Idaho
    0
    That's how mine is, switched power off and axle is down, on is lifted.

    OLDSKOOLERnWV Thanks this.
  7. Shawn19

    Shawn19 Light Load Member

    115
    34
    Apr 20, 2019
    0
    That what I figure but was not sure i will try it an see what happens hopefully it work.

    OLDSKOOLERnWV and Oxbow Thank this.
  8. Shawn19

    Shawn19 Light Load Member

    115
    34
    Apr 20, 2019
    0

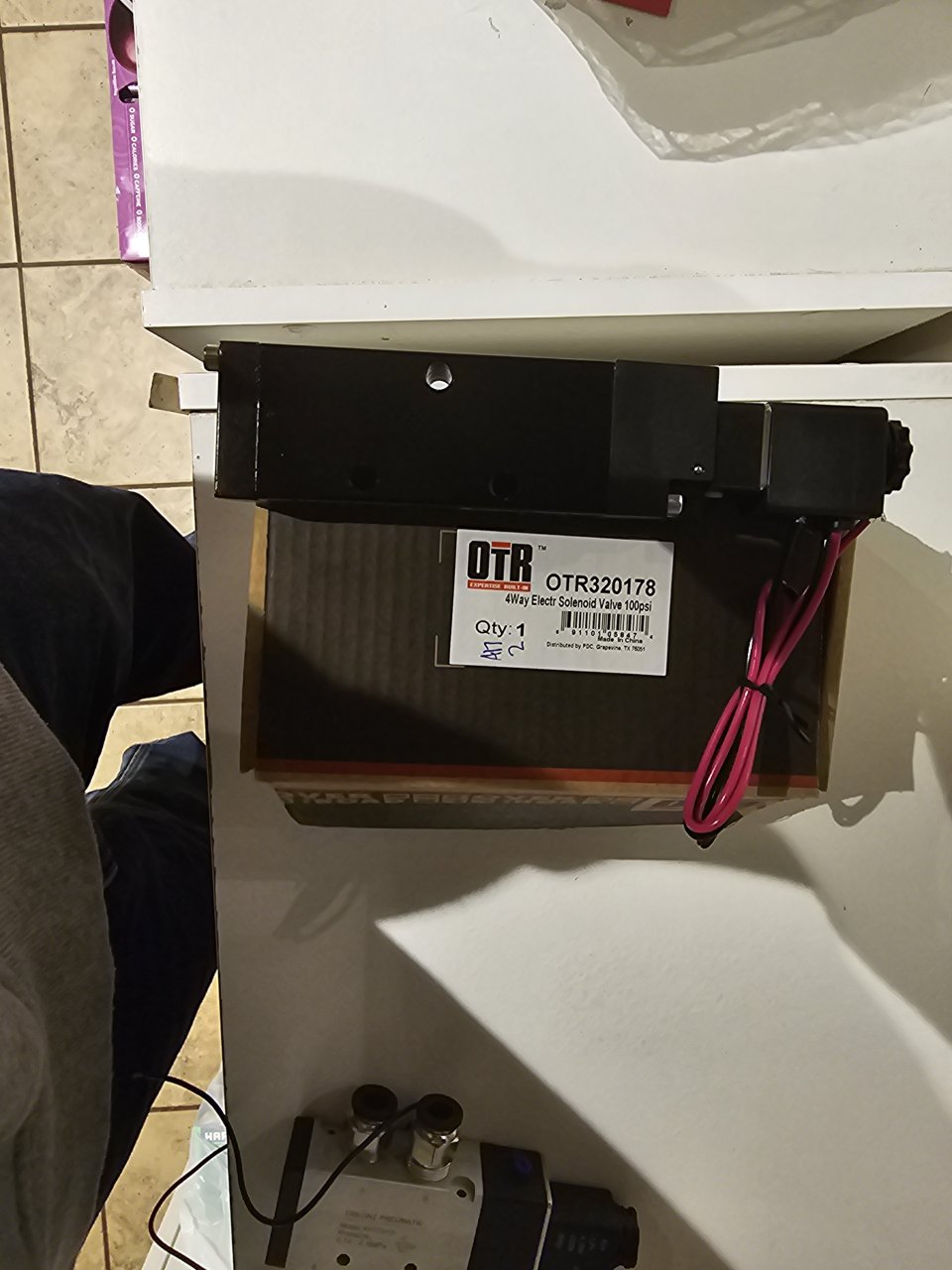

    My new solenoid that meant for truck.


    Attached Files:

    Oxbow Thanks this.
  9. Oxbow

    Oxbow Road Train Member

    11,817
    119,826
    Nov 24, 2015
    Idaho
    0
    You should be able to plumb the output either way according to your preference.

  10. Shawn19

    Shawn19 Light Load Member

    115
    34
    Apr 20, 2019
    0
    I got two output and 1 supply

  11. Shawn19

    Shawn19 Light Load Member

    115
    34
    Apr 20, 2019
    0
    This is how my original ones look but they are $984 for just the solenoid control valve and I got 3 of them.


    Attached Files:
