Engine continues to run

Discussion in 'Freightliner Forum' started by Rigelake, Jun 20, 2022.

  1. Rigelake

    Rigelake Bobtail Member

    6
    1
    Jun 20, 2022
    0
    Hi
    1994 FL80, cummings 8.3 e-One firetruck. Do not have manuals nor fuse panel diagram.

    Turn key to off engine keeps running. Fuel solenoid is good. With key in off position red wire on solenoid receiving 5.5 volts. Suspect ignition relay, but not sure where it is.

    tried to trace fuel solenoid wire back to find right spot on fuse panel, but every port i connected with gave me continuity with red wire on solenoid.

    engine starts and runs normal. To shut down must turn battery switch to off and turn key to on.

    i’ll welcome suggestion on where to look.. if someone has fuse panel diagram i’ll gladly accept.

    thanks
    John
    CCPVFD

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. RocketyMan

    RocketyMan Medium Load Member

    485
    284
    Jun 5, 2015
    0
    Welcome to the forum.
    A '94 FL80...I might be able to look up some wiring for that truck. I would need the last 6 of vin to do so.

    nikmirbre Thanks this.
  4. Rigelake

    Rigelake Bobtail Member

    6
    1
    Jun 20, 2022
    0
    here is Vin 1FV6JLVC1SL65912

  5. Rigelake

    Rigelake Bobtail Member

    6
    1
    Jun 20, 2022
    0

  6. RocketyMan

    RocketyMan Medium Load Member

    485
    284
    Jun 5, 2015
    0
    Last 6 would've been sufficient: L65912

    Alrighty...lets see what I can find for your IGN circuit.

  7. RocketyMan

    RocketyMan Medium Load Member

    485
    284
    Jun 5, 2015
    0

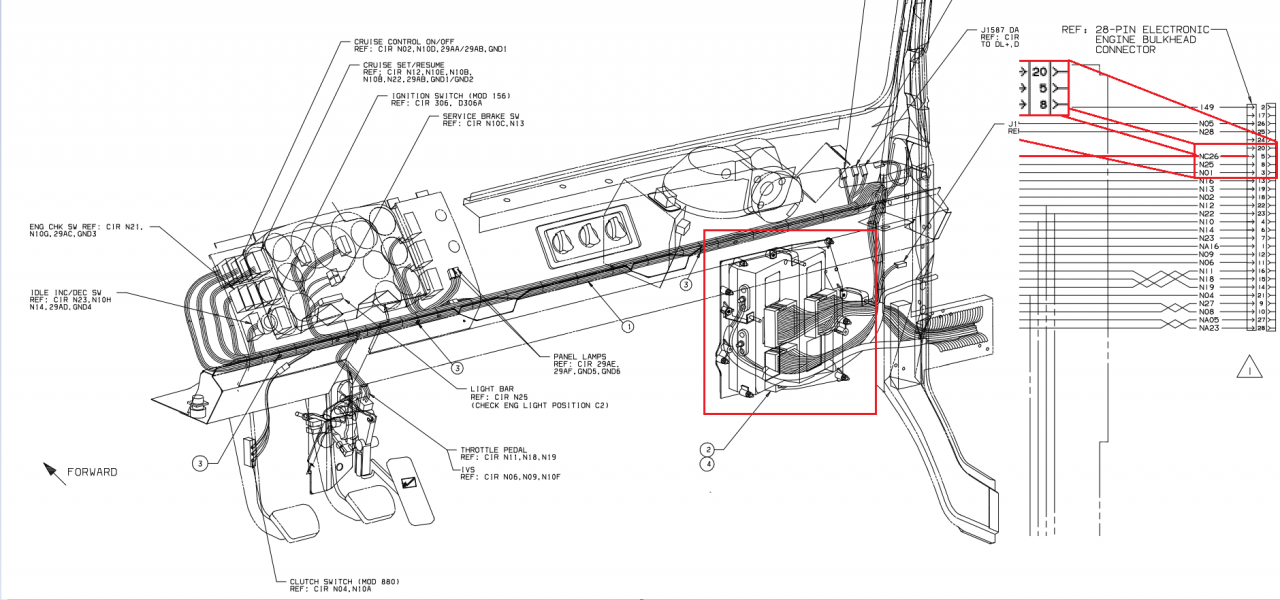

    Here is your ign switch:

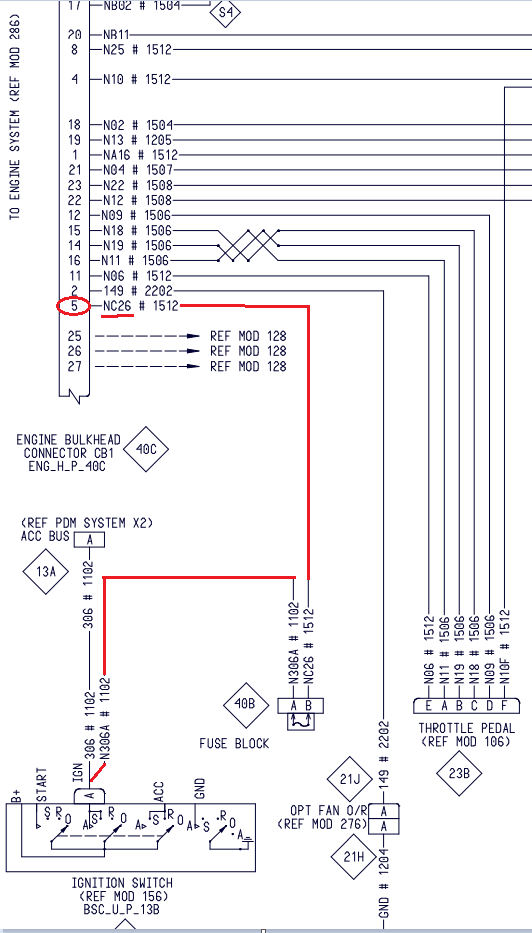

    It goes to the "fuse block" and then to the BULKHEAD connector -- 28 pin. We are wanting to check IGN circuit 1512 that goes to pin 5 on the BH connector.

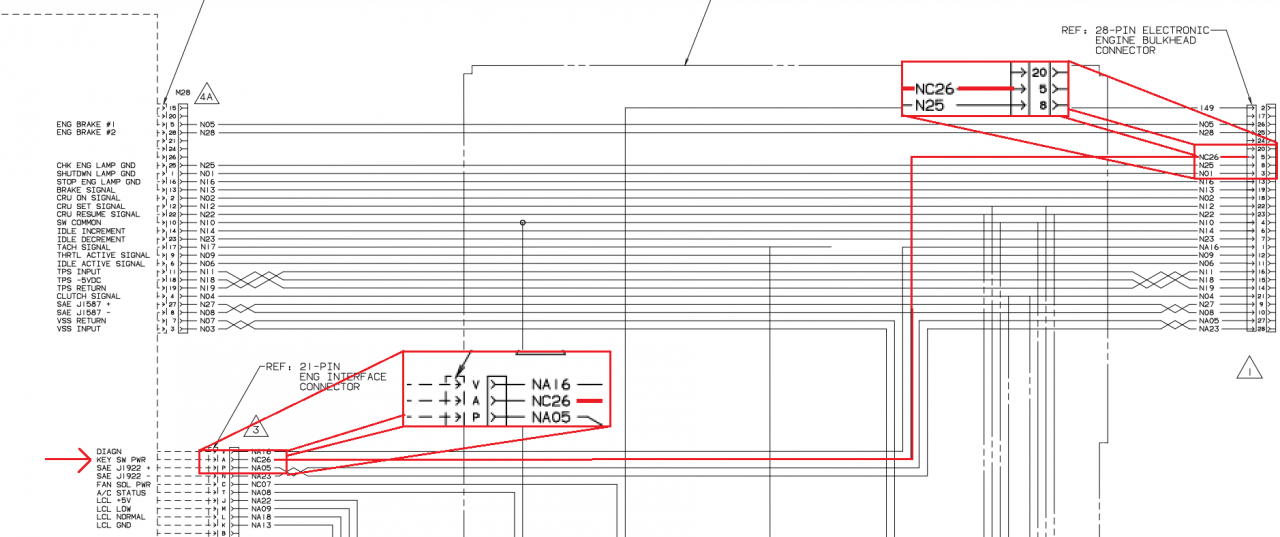

    Pin "A" on the ECM connector goes to pin "5" on the bulkhead connector.

    I would check what pin 5 is reading at the bulkhead connector--this would be the easier to check. Check over in the passenger firewall area under the hood.




    BTW, what "solenoid" are you talking about? Anyway...report back what you find.


    Attached Files:

    God prefers Diesels Thanks this.
  8. Rigelake

    Rigelake Bobtail Member

    6
    1
    Jun 20, 2022
    0

  9. Rigelake

    Rigelake Bobtail Member

    6
    1
    Jun 20, 2022
    0
    Much Appreciated.

    i’ll let you know how it goes. I am on the road next couple of weeks but, ill be sure to post when i fix it.

    RocketyMan Thanks this.
  10. RocketyMan

    RocketyMan Medium Load Member

    485
    284
    Jun 5, 2015
    0
    Sounds good! Good luck!

    blairandgretchen Thanks this.
  11. Rigelake

    Rigelake Bobtail Member

    6
    1
    Jun 20, 2022
    0
    Well, turned out the short was in the alternator. So new alternator and all good.
    Thank you for the assist. Learned a lot about the wiring is this truck.
