Fan clutch airline leaking

Discussion in 'Freightliner Forum' started by 2hot2handle, Nov 22, 2019.

  1. 2hot2handle

    2hot2handle Light Load Member

    65
    34
    Aug 25, 2015
    0

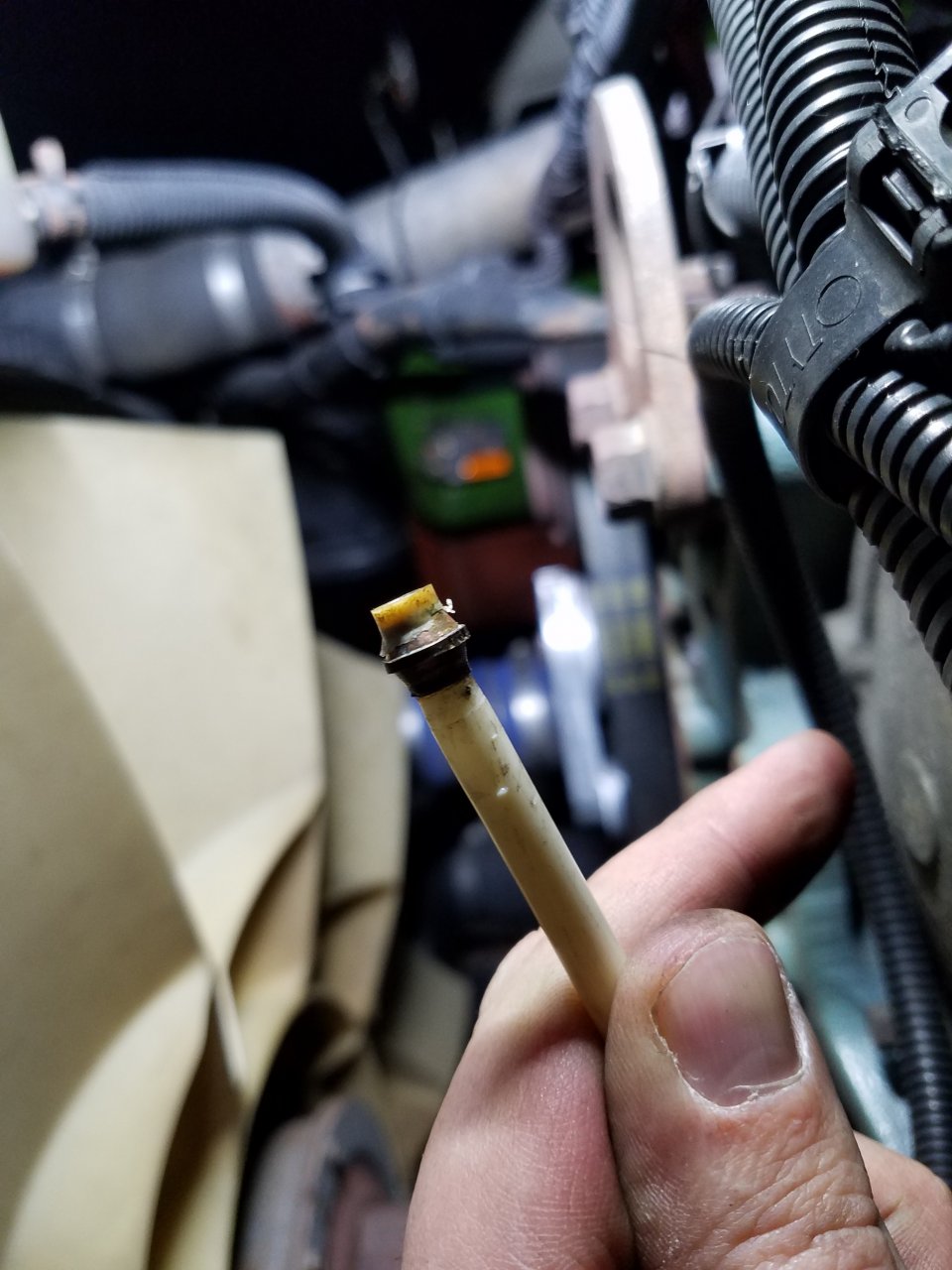

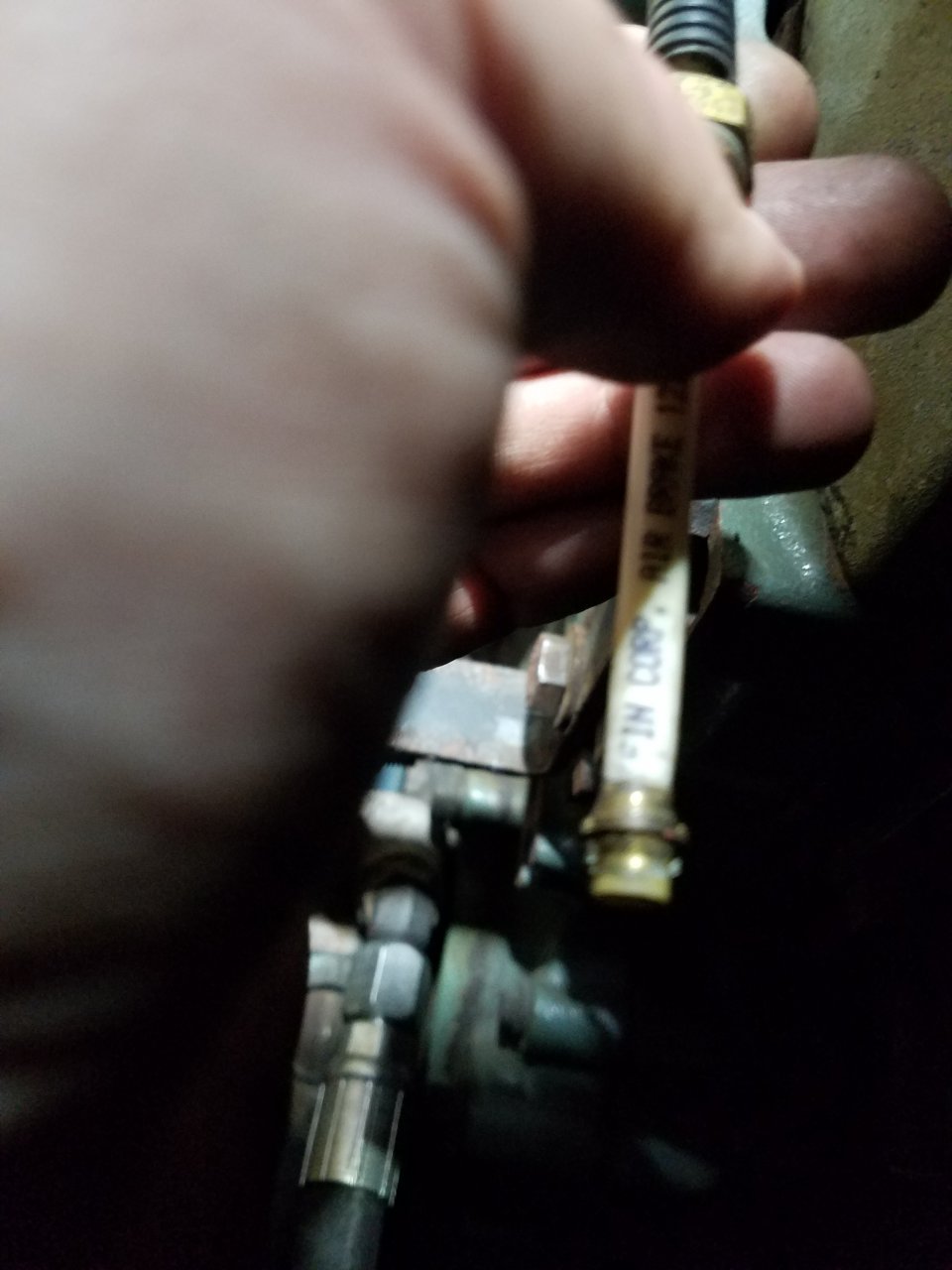

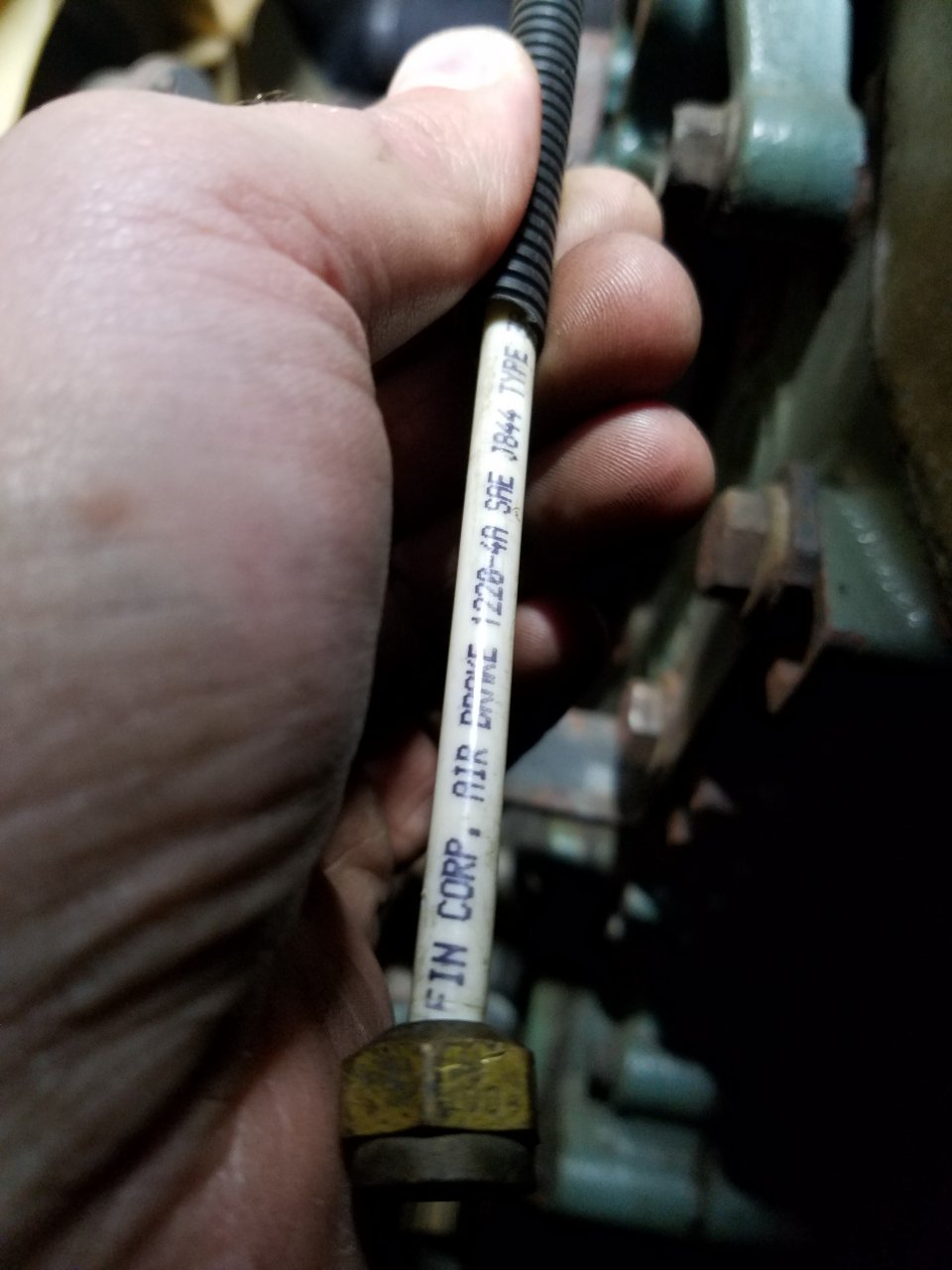

    Am I correct in assuming that this brass fitting can be replaced on a newer section of the line?
    I'm going to need to cut it because the line is welded in there.
    What's the best place to buy that fitting?

    20191119_224909.jpg 20191119_224926.jpg 20191119_224944.jpg

    truckdriver31 Thanks this.
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. truckdriver31

    truckdriver31 Road Train Member

    6,988
    8,343
    Sep 18, 2013
    0
    yes you have to cut it clean. get new brass fitting. its a crush sleeve. once you apply pressure it crushes it on the hose. wheres is the fan leaking and what type or color fan.

    2hot2handle Thanks this.
  4. 2hot2handle

    2hot2handle Light Load Member

    65
    34
    Aug 25, 2015
    0
    Leaking at the fitting. Fan blade is yellow housing green

    truckdriver31 Thanks this.
  5. truckdriver31

    truckdriver31 Road Train Member

    6,988
    8,343
    Sep 18, 2013
    0
    if the fan clutch is blowing air out the front. then you have to replace or rebuild the clutch. hortons can be locked into place with a set screw. kiser will have to be rebuilt or replace on the spot

    2hot2handle Thanks this.
  6. truckdriver31

    truckdriver31 Road Train Member

    6,988
    8,343
    Sep 18, 2013
    0
    then cut clean and replace the brass. its more likely cut at the brass crush sleeve

    2hot2handle Thanks this.
  7. 2hot2handle

    2hot2handle Light Load Member

    65
    34
    Aug 25, 2015
    0
    Nope leaking from the top of fitting and line. Unusually quite night at the yard and could hear it. Confirmed with soapy water.
    Best place to buy fitting?
    How do I know which clutch I have?
    Thanks for your help and quick response.
    Got this all done while unloading :D

    truckdriver31 Thanks this.
  8. MGE Dawn

    MGE Dawn Road Train Member

    1,074
    2,261
    May 19, 2019
    Vancouver, WA
    0
    Find a shop at a travel stop. You can buy new brass for like a buck a fitting. Speaking from experience

    Last edited: Nov 23, 2019
    truckdriver31 Thanks this.
  9. AModelCat

    AModelCat Road Train Member

    27,734
    145,350
    Jul 7, 2015
    Canuckistan
    0
    Every driver should have a kit with spare fittings and such.

    You can buy new fittings pretty much anywhere. Truck dealers/shops, industrial supply stores, truck parts stores like Napa/Traction etc.

    truckdriver31 and jinxutoo Thank this.
  10. 2hot2handle

    2hot2handle Light Load Member

    65
    34
    Aug 25, 2015
    0
  11. King Michael

    King Michael Light Load Member

    89
    72
    Nov 20, 2018
    0
    Buy it at an auto parts store.
    Why get robbed at a truck shop travel center truck stop or anywhere else like that.

    That "crush" fitting has a ferrel in it. You cannot reuse it.
    New fitting will come with it.
    Auto parts store .. About 5 pieces for a buck

    truckdriver31 Thanks this.
