Hello guys!
I bought this 2011 Freightliner Columbia glider kit, changed all the lines on the AC because they were all rusted, replaced the AC drier, flushed, and recharged the system but I only get ground and no power to the AC Compressor.
After tracing the wires found out that AC Relay has 14 volt power at pin #87 but only 1 volt at pin #98 (it will change quickly to different numbers then stays at 1), If I jump pin #98 which I believe is A/C clutch request the system works perfectly.
Any help/ideas will be much appreciated
Freightliner Columbia Glider Kit 2011. No power to AC Compressor
Discussion in 'Freightliner Forum' started by F1EXPRESS, May 21, 2023.
-
Trucking Jobs in 30 seconds
Every month 400 people find a job with the help of TruckersReport.
-
-
Good.

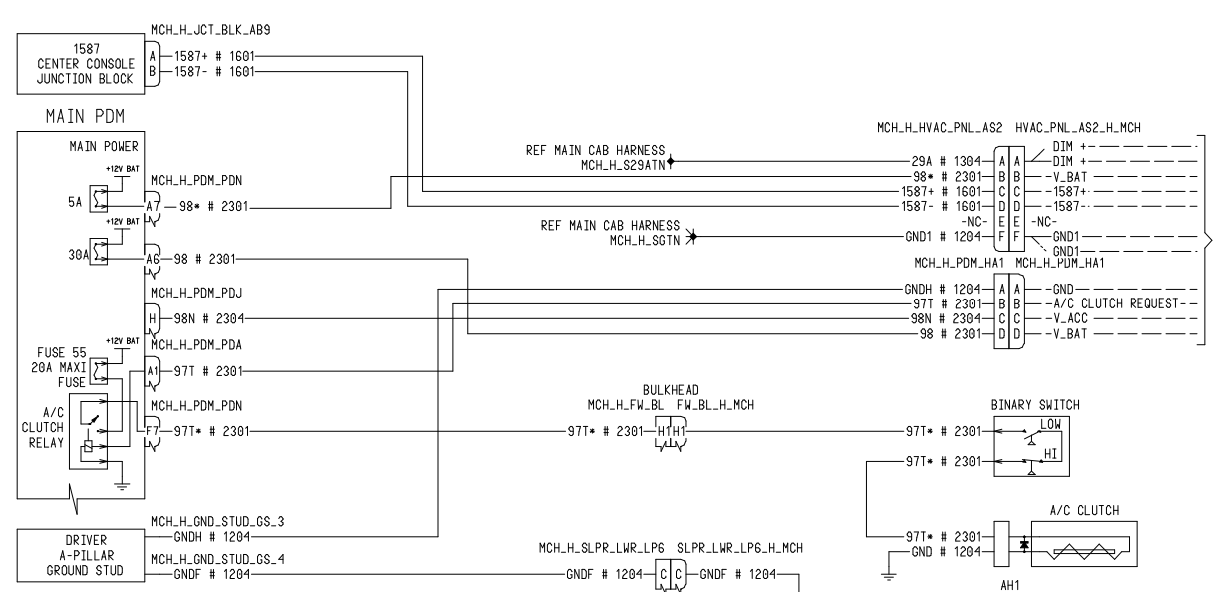

CIRC 97T is the one going to the relay for the AC clutch request.

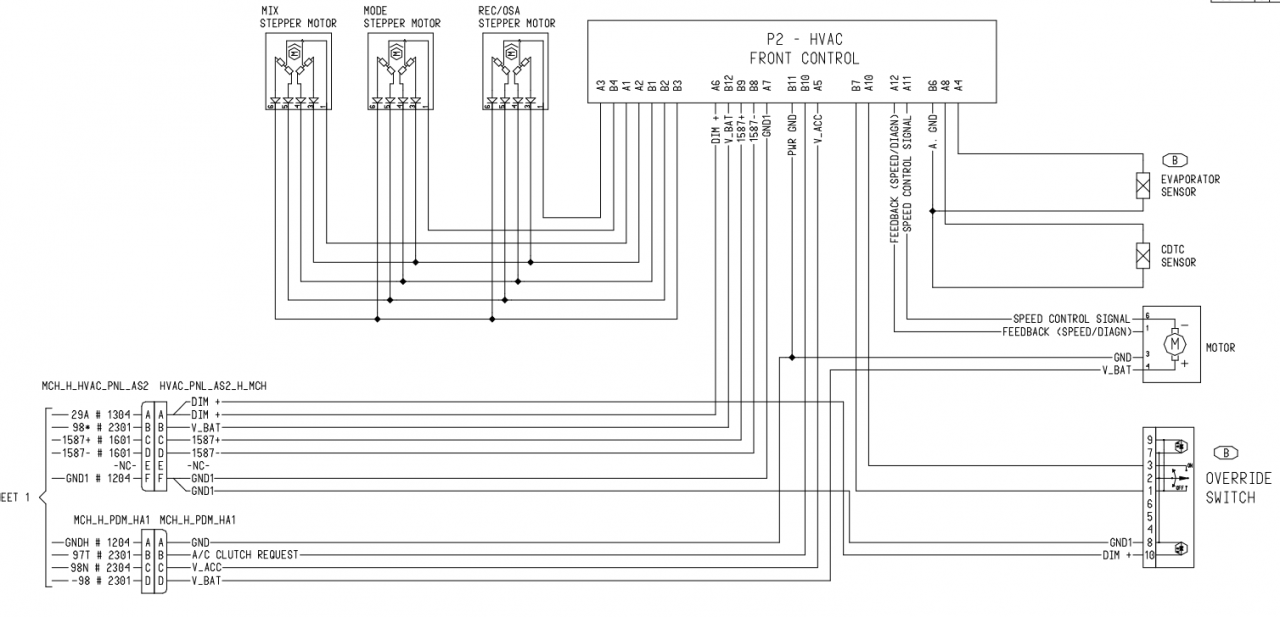

Now you need to verify the 97T to your controller for the request.
Verify continuity of the circuit to the controller. There are several connectors to inspect if there is any issue. You might need a new HVAC controller.
Please report back your findings.Attached Files:
Forever237, QUALITYTRUCK and F1EXPRESS Thank this. -
