Freightliner FL112 Brake lights/Turn signal wiring

Discussion in 'Freightliner Forum' started by MIg25, Aug 17, 2020.

  1. MIg25

    MIg25 Light Load Member

    65
    17
    Apr 10, 2020
    Fort Lauderdale - Florida
    0
    Hello Folks,
    Need you help on this wiring issue I am facing on my 2003 FL112.
    I bought new LED lights as the old ones were all bad.
    Trying to wire it back together, but I can get it to work properly.
    The issue I see is how to wire the turn signals and brake lights so they can work properly.
    I found out brake lights turn signal comes out on the same wire. This is messing me up big time.
    Picture below:

    • Two green wires together is driving lights. No problem here.
    • White one with black tape is reverse and reverse alarm, no issues here.
    • Green one - Right turn signal and brake lights.
    • Yellow one - Left turn signal
    • The other white one is for the left reverse light- no issues here.
    • The truck also has a white wire not shown here. This white wire has no output regardless, I think it might be ground.
    How would I wire these brake and turn signals?

    [​IMG]

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. joey8686

    joey8686 Light Load Member

    131
    154
    Jul 1, 2014
    0
    You just need a stop,tail,turn 3 prong led light, white(not the reverse white) to ground,joined green to marker light, then light green or yellow to last wire for stop hazard and turn signal if it’s all on the same wire

    MIg25 Thanks this.
  4. MIg25

    MIg25 Light Load Member

    65
    17
    Apr 10, 2020
    Fort Lauderdale - Florida
    0
    I thought ground is already applied as the lights are bolted to the chassis. If I join the white ground wouldn't it short it out?

  5. joey8686

    joey8686 Light Load Member

    131
    154
    Jul 1, 2014
    0
    on A stop,tail,turn such as grote or trux brand there is a ground wire,on my truck it has grote lights and the white wire is to ground, red to signal and black to tail lights I believe. The brake light will be brighter than the taillights when you put power to it

  6. RocketyMan

    RocketyMan Medium Load Member

    527
    309
    Jun 5, 2015
    0
    Easy...Need last 6 of vin to look up the factory wiring.

  7. MIg25

    MIg25 Light Load Member

    65
    17
    Apr 10, 2020
    Fort Lauderdale - Florida
    0
    Last six of my VIN are K89 566

  8. RocketyMan

    RocketyMan Medium Load Member

    527
    309
    Jun 5, 2015
    0

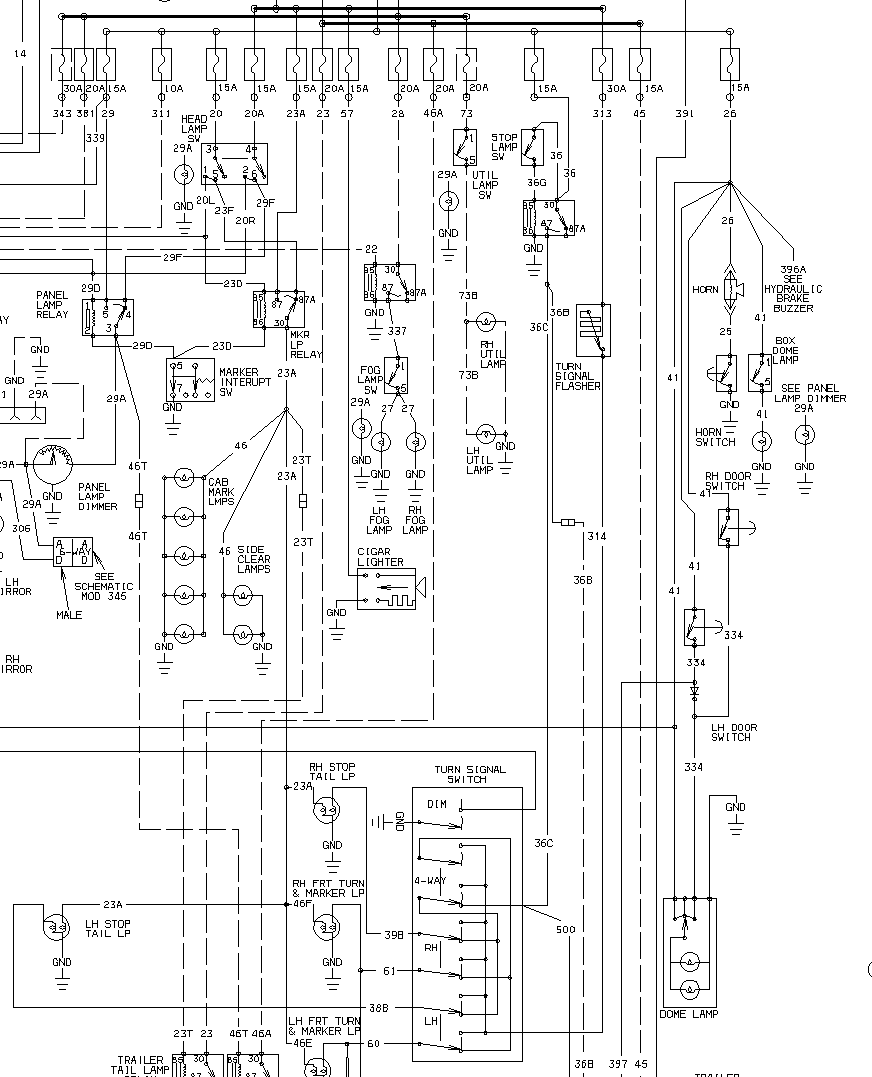

    Here is your schematic:


    I would do some continuity tests to verify which wire you are after. CIRC 23A for stops, the 38B and 39B for your turns.

    MIg25 Thanks this.
