Fuel tank mounting orientation

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by skallagrime, Jan 17, 2022.

  1. skallagrime

    skallagrime Road Train Member

    2,295
    5,314
    Apr 10, 2012
    Indiana
    0
    Which goes straight up? See pic attached.

    Fuel pull/return/sender

    Vent cap

    Or 50% between those?


    dennisrosemond Thanks this.
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Goodysnap

    Goodysnap Road Train Member

    2,896
    6,730
    Jul 12, 2017
    0
    I would put the fuel draw and return at center top.

  4. skallagrime

    skallagrime Road Train Member

    2,295
    5,314
    Apr 10, 2012
    Indiana
    0
    Appreciate it, had old tanks oriented for the vent, wonder if thats what caused em to always read 3/4 full at max fill

    Any advice on how long to cut the fill/return necks? Its a 24.5 tank, they gave me 28 inch tubes

  5. Goodysnap

    Goodysnap Road Train Member

    2,896
    6,730
    Jul 12, 2017
    0
    Could be.....if the float has a metal arm you can tweek the float to adjust the gauge to full/empty to dial in the accuracy.

  6. skallagrime

    skallagrime Road Train Member

    2,295
    5,314
    Apr 10, 2012
    Indiana
    0

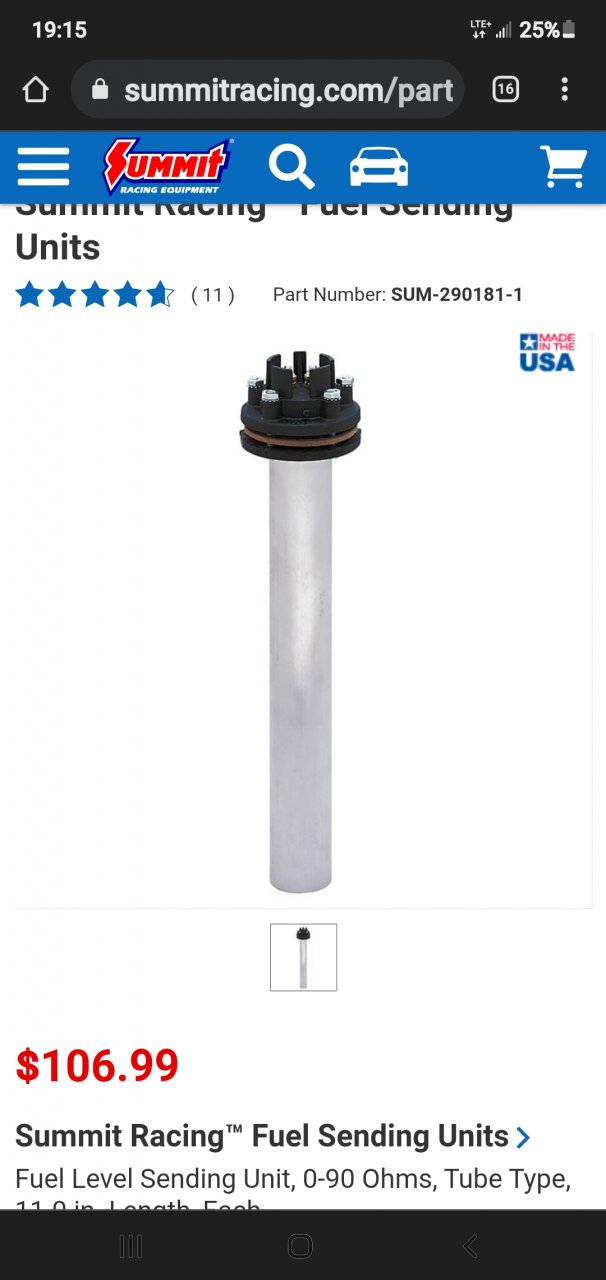

    Was this style, no arm, which i cant find for a 24.5 tank, so maybe its actually a 22inch... eh, inaccurate fuel gauge wont kill me (and personally i dont like the arm style sending units)


    Rideandrepair Thanks this.
  7. lester

    lester Road Train Member

    2,117
    5,041
    Jan 2, 2012
    NW, Iowa
    0
    Personally I would set it up so it reads empty long before it is empty. Put the draw tube as close to the bottom as possible.

  8. AModelCat

    AModelCat Road Train Member

    24,126
    120,258
    Jul 7, 2015
    Canuckistan
    0
    I'd put the draw tube 1/2" or so off the bottom, just to keep it from drawing in any water or sediment that may have settled out in the bottom.

  9. skallagrime

    skallagrime Road Train Member

    2,295
    5,314
    Apr 10, 2012
    Indiana
    0
    Any thoughts on adding a screen or just leave it a bare tube?

    Rideandrepair Thanks this.
  10. AModelCat

    AModelCat Road Train Member

    24,126
    120,258
    Jul 7, 2015
    Canuckistan
    0
    I'd just leave it bare. The filters will pick up the bad stuff and filters are easier to change vs removing the tube.

  11. skallagrime

    skallagrime Road Train Member

    2,295
    5,314
    Apr 10, 2012
    Indiana
    0
    Ty

    Just gonna ride this question alongside since enough people that know stuff are already here :p

    In pic, 2/0 cable goes to one each of the start batteries

    Theres a few knicks in both positive wires due to terrible placement, better to just wrap those parts with tube and replace with 2/0 or use the new 1/0 i have on hand?

    Runs are about 6'

    (Also alternator hot wire is relatively stiff from vibration/heat and only 1/0, when replacing that i assume that deffinitely should be replaced with a 2/0 since its almost 15 feet?)


    Goodysnap Thanks this.
