Installing scuff plates in reefer

Discussion in 'Refrigerated Trucking Forum' started by slow.rider, Jun 30, 2021.

  1. John E.

    John E. Light Load Member

    203
    741
    Apr 4, 2021
    New Brunswick
    0
    You have much better patience than I have slow.rider. All I'm sayin.

    Jarhed1964 and slow.rider Thank this.
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. wichris

    wichris Road Train Member

    2,738
    3,593
    Jan 17, 2011
    0
    Do you have aluminum scuff plate and how high? Scuff guard is like GD's puncture guard. It's pretty tuff. A lot of different brand names for it.

  4. slow.rider

    slow.rider Road Train Member

    2,005
    4,660
    Apr 4, 2017
    NYC
    0

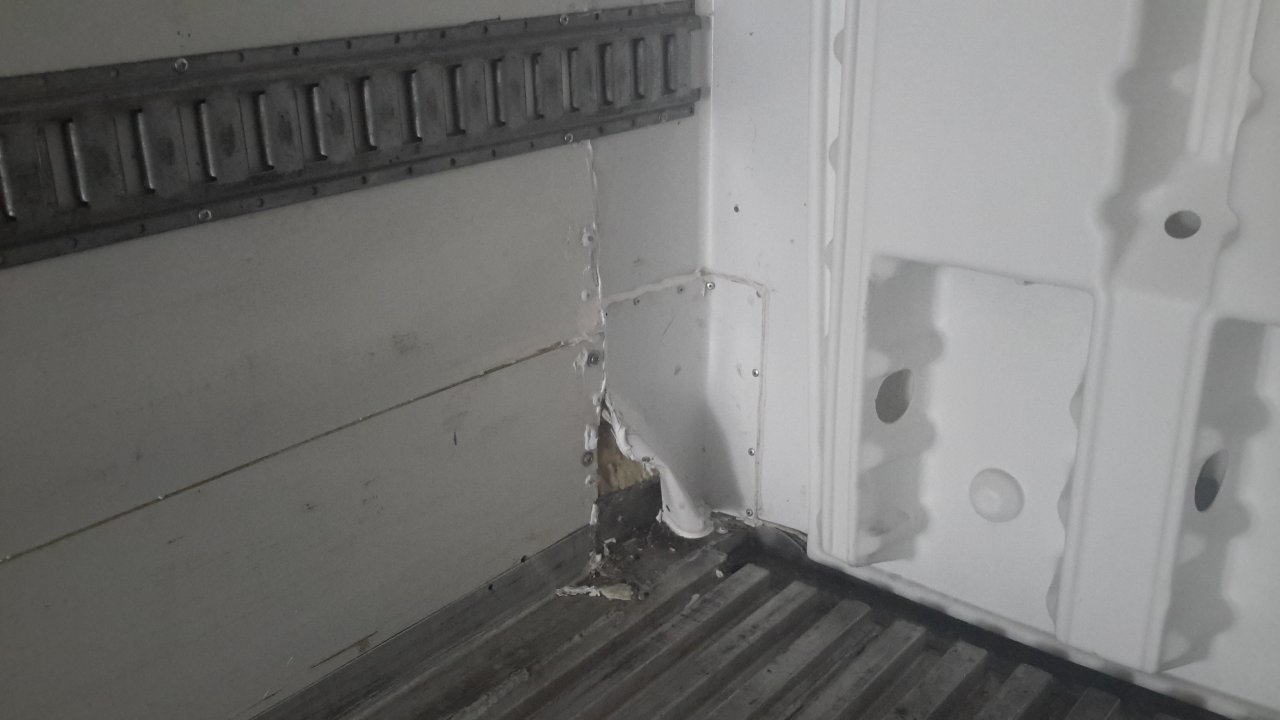

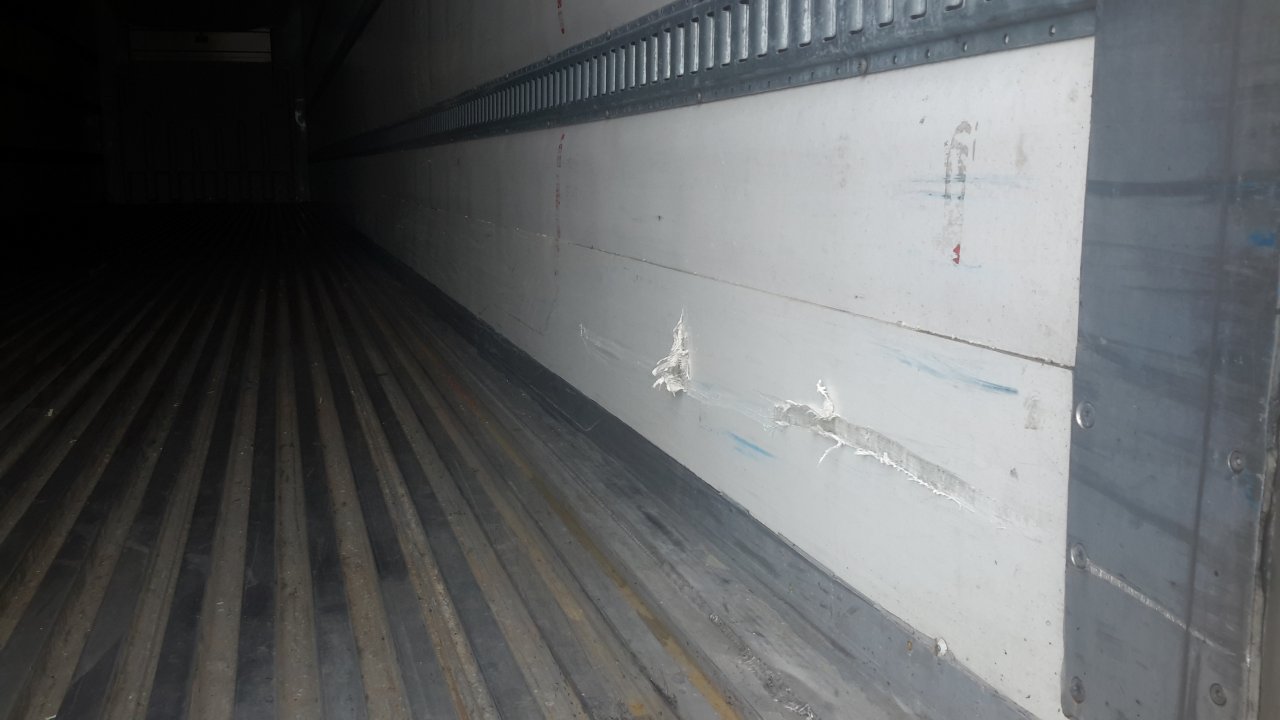

    Comment #4 contains pics of my trailer.

    Farmerbob1 Thanks this.
  5. wichris

    wichris Road Train Member

    2,738
    3,593
    Jan 17, 2011
    0
    Went back and looked at your pic's. Never seen a plate that small. You're talking a lot of money to put a 24" aluminum scuff plate in. You would need to cut the old one out and weld the new one in. 106' of welding is not cheap. I guess you could bond a 24" high scuff guard from the floor up, would lose around 3/8" width on the floor.

    Farmerbob1 and slow.rider Thank this.
  6. wichris

    wichris Road Train Member

    2,738
    3,593
    Jan 17, 2011
    0
    Can't tell from the pic, is that plate flush with the kemlite or is there a ridge there? If there is a ridge you could just bond scuff guard from there up.

    slow.rider Thanks this.
  7. slow.rider

    slow.rider Road Train Member

    2,005
    4,660
    Apr 4, 2017
    NYC
    0
    There's a small ridge. Can you find a photo of the scuff guard you're talking about? Or a link?

  8. wichris

    wichris Road Train Member

    2,738
    3,593
    Jan 17, 2011
    0
    I'll just use GD's brand name. Measure how high you need to go, call the dealer and ask how much for (2) 53' X ? rolls of puncture guard and bonding agent.
    Lay it right over the top of the kemlite,2X4's to spread the pressure and a lot of load locks. Still will need 4-5 people to help tip it up into place until you get the load locks in. Not near as hard as trying to get it into the groove of a scuff plate. A weekend job, one side sat the other sun. Don't give out the beer until you're done.

    Farmerbob1, BoxCarKidd and slow.rider Thank this.
  9. Jarhed1964

    Jarhed1964 Road Train Member

    2,819
    1,541
    Jun 22, 2007
    Charlotte, NC
    0
    Farmerbob1 and slow.rider Thank this.
  10. jason6541

    jason6541 Road Train Member

    1,930
    3,643
    Mar 5, 2012
    Omaha, NE
    0
    I need to find out what camera system a friend of mine is a trailer shop foreman for a small fleet. They have wireless cameras in the trailers. They see when forklift drivers damage trailers also if they are ####ing around loading freight. That’s for vans though, not sure how an electronic camera would hold up to the temp fluctuations in a reefer also the humidity.

    Farmerbob1, Jarhed1964 and slow.rider Thank this.
  11. trailerguymatt

    trailerguymatt Bobtail Member

    4
    9
    Apr 8, 2021
    0
    Buy some of that black fiberglass scuff. It comes in big rolls and its just tall enough to push in any Kemlite bulging you may get in an older trailer. It helps prevent that as well. Its thicker than the aluminum, obviously, but it holds up really well and is a cheaper install you can do yourself if you are handy at all.

    Farmerbob1 and slow.rider Thank this.
