Kentucky Trailer - Lubricating Door Hinges

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by JeremyTourville, Jun 15, 2025.

  1. JeremyTourville

    JeremyTourville Bobtail Member

    25
    27
    May 5, 2025
    0

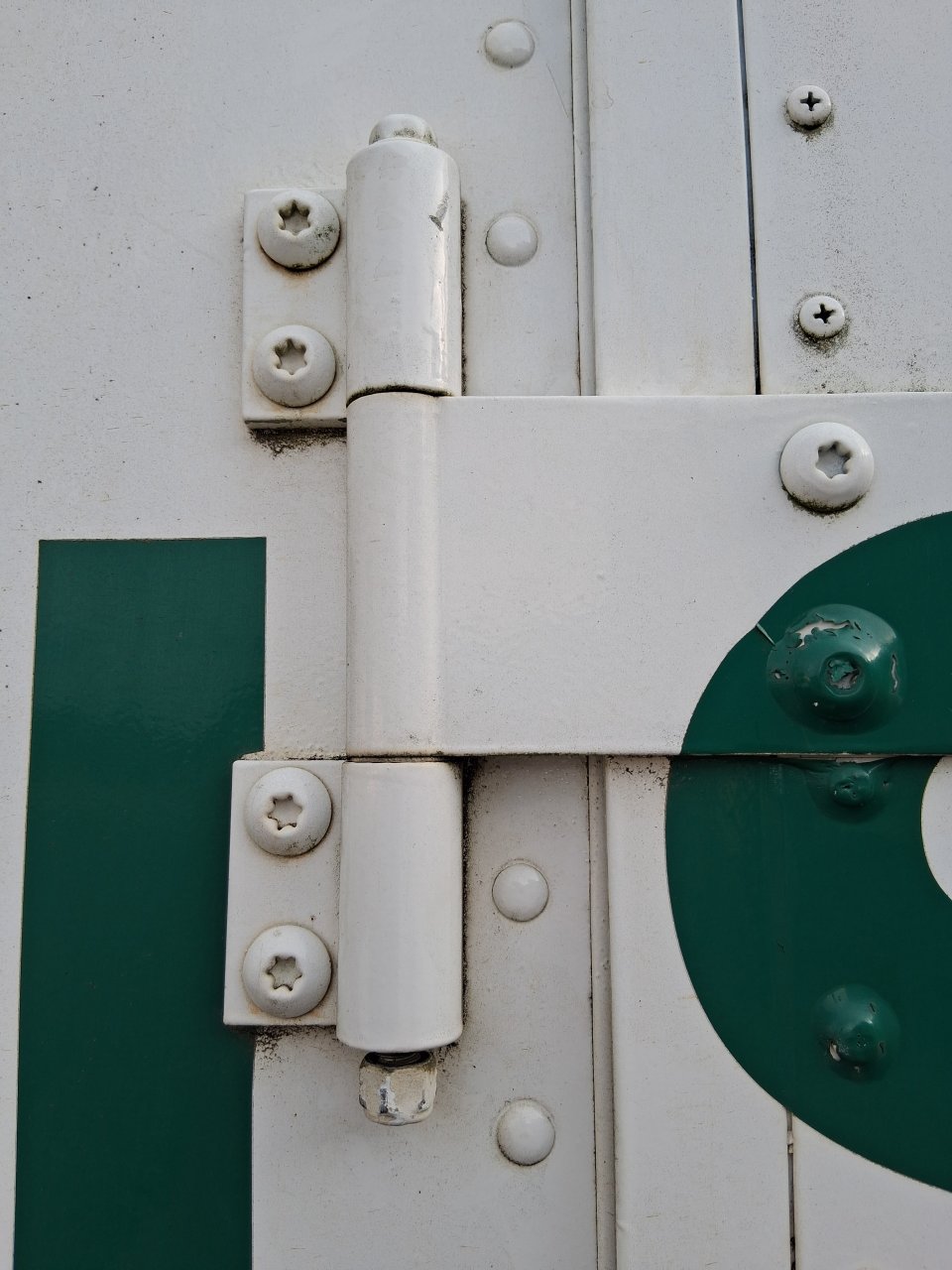

    I have a trailer that needs a little love. Several of the doors have hinges that are very sticky and harder to open than they should be. The hinges are simple enough. They have a long bolt through them with a nut on the bottom. I have loosened the nut slightly and tried to beat the bolt upward with hammer and brass drift. They won't budge. There's very limited space to get any PB Blaster down in there, though I did try.

    I think my trick of last resort is an air hammer. Hopefully some percussive therapy would get them to free up.
    Can anyone suggest other ways to free these up?

    Last, any suggestions on the most appropriate lubricant? I understand that a dry lube is good so that it doesn't attract dirt. Also, a white lithium may be acceptable. Any other thoughts? Thanks!


    Attached Files:

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. 062

    062 Road Train Member

    6,196
    33,394
    Oct 20, 2013
    0
  4. AModelCat

    AModelCat Road Train Member

    29,138
    158,298
    Jul 7, 2015
    Canuckistan
    0
    Either replace the hinges or remove the bolts to properly clean out the rust and crud built up in there.

  5. JeremyTourville

    JeremyTourville Bobtail Member

    25
    27
    May 5, 2025
    0
    That's a lot of hinges! This moving van has 2 rear doors, 3 curbside doors (where 2 doors are split style and open down the middle of the door opening) and 2 large "barn" doors on the street side.

    We do agree on using a good dry lube though.

    Yes, that is the intent of my question. I am trying to recondition the existing hinges. I am wanting to see if anyone has alternate suggestions to help free up the bolts. I think if I can get the bolts out, I can clean up the hinges. That is my primary focus. Which lubricant to use is secondary.

  6. 062

    062 Road Train Member

    6,196
    33,394
    Oct 20, 2013
    0
    If you’re in a hurry,then a air hammer would be the quickest way.
    Have you tried spinning the bolt head since you have the nut loose? You can try to hammer them down and then try to drive them out.

  7. JeremyTourville

    JeremyTourville Bobtail Member

    25
    27
    May 5, 2025
    0
    Roger that.

    I have tried spinning the bolt head and I can't get many of them to budge. If I go too hard I'll end up rounding over the head. I know the picture doesn't show it, but the head on the bolt has a flared bottom. The only way I can drive the bolt is up. Basically, I wanted to see if anyone had tips and tricks for dealing with this.

  8. Hammer166

    Hammer166 Crusty Information Officer

    7,452
    26,973
    Aug 18, 2007
    ~8600+' and loving it!
    0
    Jack those doors slightly to unload those hinges. They'll still be a chore, but at least they'll not be bound by the weight of the door.

    Ruthless Thanks this.
  9. JeremyTourville

    JeremyTourville Bobtail Member

    25
    27
    May 5, 2025
    0
    That's a good point. Give them a little boost. (Just don't go too hard)

    Hammer166 Thanks this.
  10. JB7

    JB7 Heavy Load Member

    750
    1,149
    Dec 13, 2022
    Laurel, MD
    0
    If an air hammer or jacking does not work I would remove the hinges. Then spray penetrant between the bolt and hinge, and turn it upside down to do the other side. Another option would be to buy a gallon of PB Blaster ($40 - $50) and drop a couple of hinges in a small bucket and soak them.

    Ruthless Thanks this.
  11. 062

    062 Road Train Member

    6,196
    33,394
    Oct 20, 2013
    0
    You’re not trying to drive it through,just looking to gain any sort of movement.
    Sometimes when you have a seized nut or bolt it’s better to try tightening it.

    Ruthless Thanks this.
