Let's talk turbos

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by Catmando, Jun 21, 2021.

  1. Oxbow

    Oxbow Road Train Member

    6,607
    76,887
    Nov 24, 2015
    Idaho
    0
    ####.

    I don't know about heat/fuel causing that.It seems like something else might be going on there. Did you bend the oil return tube to fit or use an E model flexible hose?

    Was that BW or a knock off? Sucks either way.

    I have no recommendations.

    spsauerland Thanks this.
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Catmando

    Catmando Medium Load Member

    532
    1,332
    Mar 15, 2021
    Iowa
    0
    It's the real deal straight from BW.. I put a new E model return line on it when I put it on .. There's a Diesel shop about 20 miles from me called Excel Enginerring.. that test Diesel Engines of every type up to 4000 hp .. and that 's their job is to make them fail (they know their s@$%! ) I went through them when I got it... alot of the tractor pullers in the midwest have them get turbos... they don't have a answer for it either.. other than fuel & heat cause this.. or thats what their telling me anyhow

    Oxbow Thanks this.
  4. Oxbow

    Oxbow Road Train Member

    6,607
    76,887
    Nov 24, 2015
    Idaho
    0

  5. Oxbow

    Oxbow Road Train Member

    6,607
    76,887
    Nov 24, 2015
    Idaho
    0
    That just sucks. Do they have any recommendations?

  6. Catmando

    Catmando Medium Load Member

    532
    1,332
    Mar 15, 2021
    Iowa
    0
    I was in there yesterday afternoon They are gonna call their turbo outlet and see about having a turbo built....
    Here's the full disclosure on this truck.. I bought this truck with a bad turbo it had a A/R .95 ACD turbo on it that the bearings were shot .. the tard I bought it from was a blow hard that I didn't belive 80% of what rolled out of his pie hole.. But is a straight corrosion & rust free truck that has the right components to build what I what.. anyhow he kept blowing about how strong this motor was ..figured he was full of it .. I did samples of all the fluids everything came back good.so I threw this BW 177148 on on it and pulled a couple loads this is the result .. I know nothing about whats been done to the pump just know it was OH by a Cat shop in Salt Lake in 16 and has 105k on the OH

    Last edited: Jul 15, 2021
    Oxbow Thanks this.
  7. LameMule

    LameMule Medium Load Member

    414
    2,122
    Jan 19, 2020
    Montana
    0
    I don't know much but one thing I have learned over the years is that whatever performance/upgrade parts you install need to match well with the rest of the build. A big turbo is useless without the fuel to match and high flowing nozzles are pointless without more air.

    Oxbow and Catmando Thank this.
  8. Gambino1994

    Gambino1994 Light Load Member

    171
    85
    Jan 22, 2009
    causing a situation
    0
    What egts and boost were running through that cracked up 177148

  9. Gambino1994

    Gambino1994 Light Load Member

    171
    85
    Jan 22, 2009
    causing a situation
    0
    I came across a speed shop ad on eBay for this turbo, I think they were in Iowa but I can’t find it now. It sounds like it takes up the space between a 177148 and the 1.32 stage one bw but would probably overspeed easily and I don’t know where they source their parts.


    oATTACH=full]377305[/ATTACH]


    Attached Files:

    Last edited: Jul 15, 2021
    Oxbow Thanks this.
  10. SmokinCAT

    SmokinCAT Road Train Member

    1,746
    1,422
    Oct 20, 2010
    Hillsboro, OH./ Adrian, MI
    0

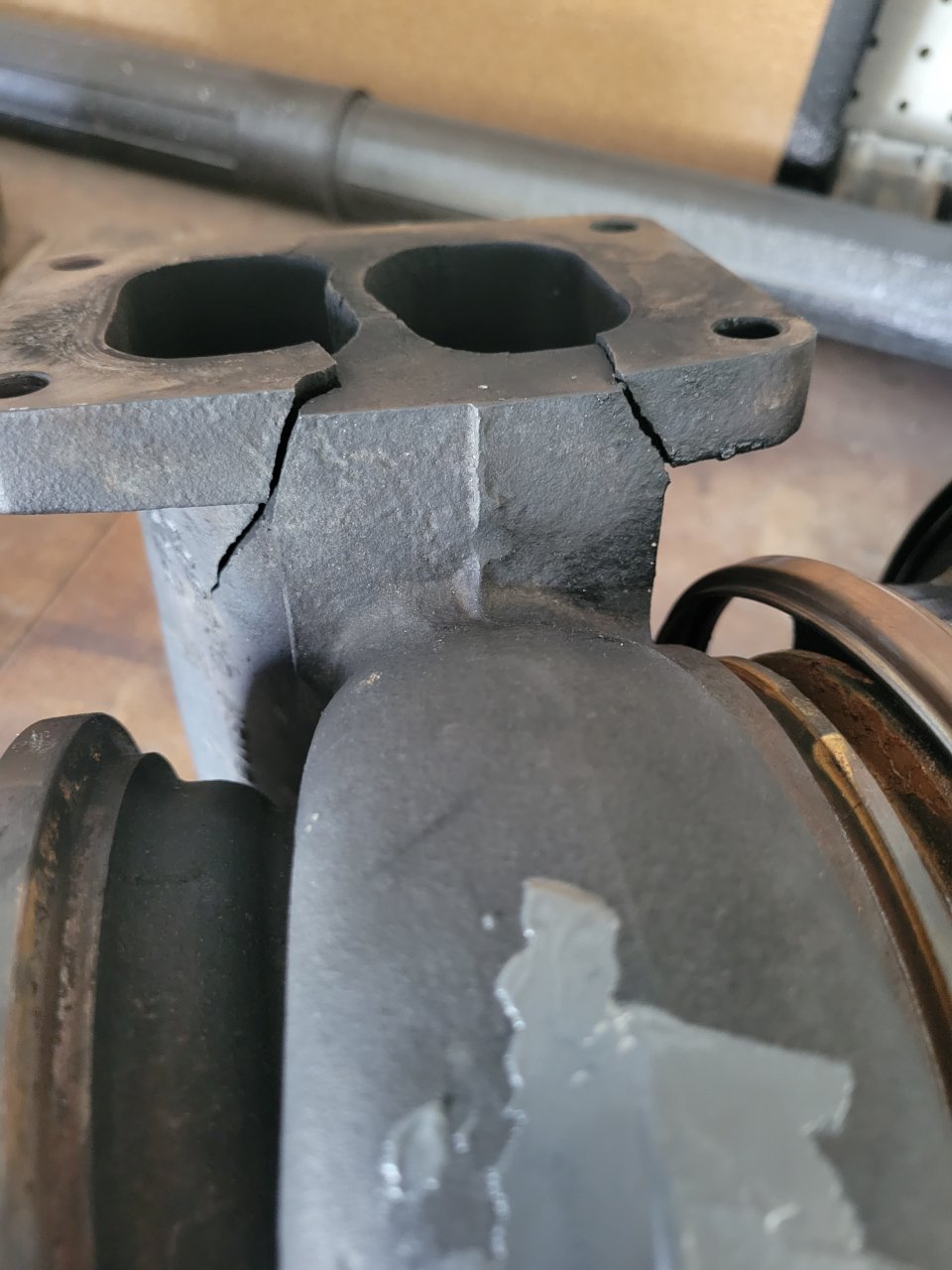

    Fuel did not cause that unless your tune up is way off, if the cast was hot enough to deform there would also be material removal from the exhaust flowing past it.

    It takes sustained 1300*+ to start to make cast glow.

    Borg likely wouldn’t cover it no matter the charger though, the are on par with most OEMs with trying to get out of warranty.

    Who did you purchase that thru?

  11. SmokinCAT

    SmokinCAT Road Train Member

    1,746
    1,422
    Oct 20, 2010
    Hillsboro, OH./ Adrian, MI
    0
    Have any pictures of the side of that turbine housing where the numbers would be?
