Looking for - air gauge "sensor" for air pressure - in the instrument panel.

Discussion in 'Volvo Forum' started by JerryD13, Mar 30, 2017.

  1. JerryD13

    JerryD13 Light Load Member

    169
    126
    Oct 17, 2016
    0
    can someone tell us where the - air gauge sensor's are for air pressure -
    in the dash - all the tests work indicating the gauge works - also drained tanks.

    would love to know where the sensor is for the Air Gauge in the instrument panel.

    Truck is a Volvo 2012 - 670 VNL

    Thanks in advance !!!

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Snailexpress

    Snailexpress Road Train Member

    2,653
    6,034
    Apr 28, 2014
    Rocky
    0
    The sensors are under left leg kick panel.

    JerryD13 Thanks this.
  4. Socal Xpress

    Socal Xpress Road Train Member

    1,855
    1,957
    Dec 6, 2014
    Los Angeles, Ca
    0
    41z1r326-1L._SY400_.jpg It will be plugged into this.

    JerryD13 Thanks this.
  5. Pedigreed Bulldog

    Pedigreed Bulldog Road Train Member

    7,740
    14,412
    May 7, 2011
    0
    Air gauges have gone electronic now? Those are the only mechanical gauges I have on my truck...always figured it was a safety thing, so that even if everything else on the dash quit working, you'd know how much air you had in the system. Not sure I like the idea of those being electronic...but then I've never really been a fan of the whole fly-by-wire thing, either.

    x1Heavy, KB3MMX and JerryD13 Thank this.
  6. Snailexpress

    Snailexpress Road Train Member

    2,653
    6,034
    Apr 28, 2014
    Rocky
    0
    Everything is fly by wire.
    Donno about D13 in my Cummins if pressure falls below 80 psi engine got derate.

    x1Heavy and KB3MMX Thank this.
  7. Newto Trucking

    Newto Trucking Medium Load Member

    359
    225
    Dec 26, 2013
    NE Illinois
    0

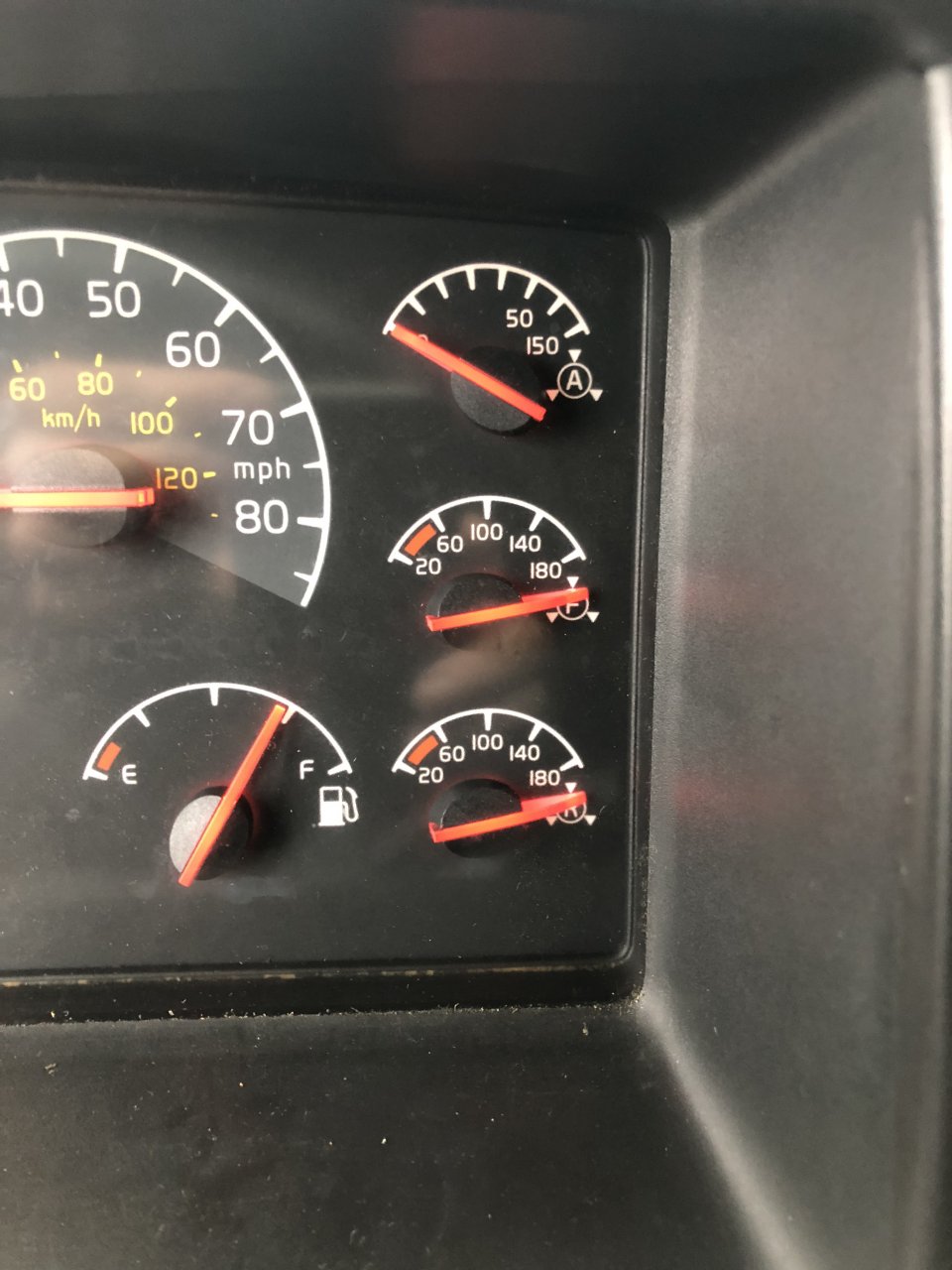

    F640B9F2-B1FA-44EF-A068-D97E1337CCDF.jpeg I woke up today to this. Is this the cluster issue or the sensor is short???

  8. x1Heavy

    x1Heavy Road Train Member

    34,017
    42,098
    Mar 5, 2016
    White County, Arkansas
    0
    Open your tanks drain and see. Stand back though 200 PSI will cut your fingers off.

    Newto Trucking Thanks this.
  9. Snailexpress

    Snailexpress Road Train Member

    2,653
    6,034
    Apr 28, 2014
    Rocky
    0
    If truck was idling all night could be faulty governor. If you just turned ignition on probably sensors circuit or dash. You can run dash test in driver menu Sweep Instruments to check

    Newto Trucking and Socal Xpress Thank this.
  10. Newto Trucking

    Newto Trucking Medium Load Member

    359
    225
    Dec 26, 2013
    NE Illinois
    0
    This time it happened when it was idling over night and it’s first time they both did it at the same time. I’ve seen bottom gauge do this before while I was driving on a highway and usually on a bumpy road like in Indiana. After a couple engine start ups upper air gauge went to normal operation, but bottom one still was doing the same. So yesterday while waiting for loading I disconnect battery’s for like an hour, just after reconnecting them and on a start up it did reset the bottom one

  11. Snailexpress

    Snailexpress Road Train Member

    2,653
    6,034
    Apr 28, 2014
    Rocky
    0
    Did you run instrument panel diagnostic test?
