MX13 EPA10

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by steve092, Dec 7, 2020.

  1. steve092

    steve092 Light Load Member

    298
    79
    Dec 7, 2015
    0
    Hey guys truck has been sitting for almost 3 years.

    2013 Peterbilt 386 with a Paccar MX13 epa10.

    Got 2 engine codes that came on,

    Dpf fuel enable actuator
    Egr delta pressure


    Could this happen from water in the fuel? Winter fuel from 3 yrs ago

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. AModelCat

    AModelCat Road Train Member

    27,734
    145,347
    Jul 7, 2015
    Canuckistan
    0
    Doubt it. If its been sitting my money is on wiring. Rodents love to chew on wiring.

  4. steve092

    steve092 Light Load Member

    298
    79
    Dec 7, 2015
    0
    It was not on immediately, came on after 20 minutes on the highway and sometimes it does not even come on.

  5. steve092

    steve092 Light Load Member

    298
    79
    Dec 7, 2015
    0
  6. Goodysnap

    Goodysnap Road Train Member

    3,502
    8,384
    Jul 12, 2017
    0
    Aftertreatment Fuel doser or 7th injector is likely plugged. If driven with fault active EGR derate is enabled and must be shut off with Davie. Regular doser cleanings are needed on EPA 10 they plug over with carbon quite often, worse with high idle and light load.

    Also check BPV link and pivot freeze up often from setting at actuator yoke.

    spsauerland Thanks this.
  7. steve092

    steve092 Light Load Member

    298
    79
    Dec 7, 2015
    0
    It's creating a blue haze smoke from under the truck. I tried cleaning the 2 small tubes right after the egr sensor but lights came back on.

    Are both lights related to the doser or 7th injector?

  8. Goodysnap

    Goodysnap Road Train Member

    3,502
    8,384
    Jul 12, 2017
    0
    Hard to tell without actual fault codes

    The first is most most definitely related to DPF fuel dosing. What I have given you is most common issue.

    Second is EGR derate emposed, likely from above problem. Dont go crazy changing or checking EGR parts because it just needs the derate reset after the root cause is fixed.

  9. steve092

    steve092 Light Load Member

    298
    79
    Dec 7, 2015
    0

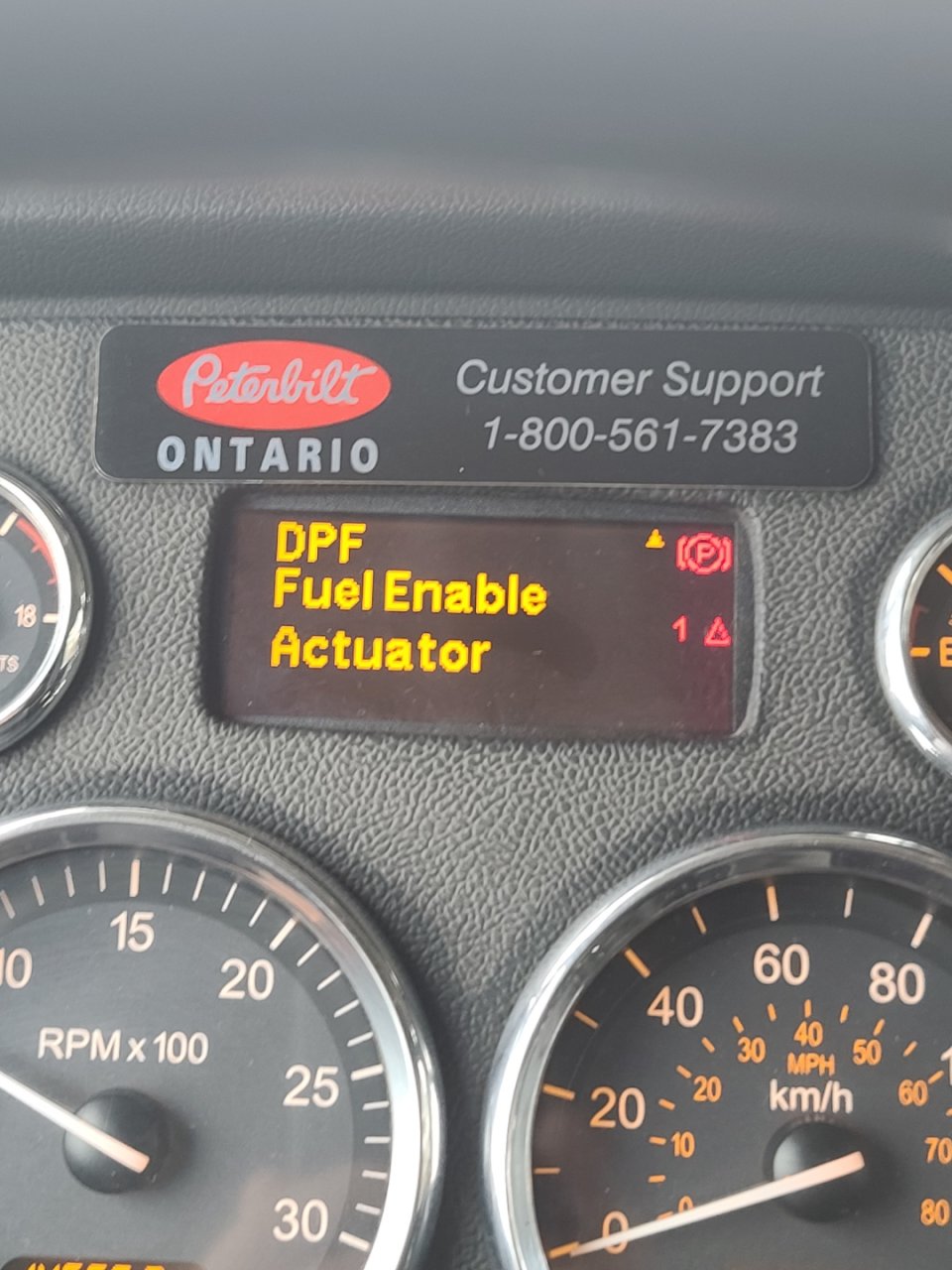

    Is cleaning both the doser and 7th simple to do? What should be used to clean them. Peterbilt couldn't even pull any engine codes out everything was inactive. This is what comes on after driving for a bit and goes away when you shut the engine off and on. Resized_20201222_101439.jpeg Resized_20201222_101432.jpeg Resized_20201222_101439.jpeg Resized_20201222_101432.jpeg

  10. Goodysnap

    Goodysnap Road Train Member

    3,502
    8,384
    Jul 12, 2017
    0
    Far from DIY. You need Davie to run the flow and leak text and also to reset the derate. Accessing the doser for cleaning on EPA10 is also a PITA. This is also considered to be routine maintenance along with DPF cleanings.

    Find a good shop that can TS and find the problem. Did pete log a regen and did it complete a stationary? This type of issue really should be straight forward for a dealer. If the faults come and go it may be a intermittent wiring issue. Again really need to see printouts for exact codes.

  11. steve092

    steve092 Light Load Member

    298
    79
    Dec 7, 2015
    0
    They did a forced regen and removed the derate that's all. He saw the blue haze smoke and said injector is leaking never specified which.

    The lights come on after driving for a bit they go away when you turn off engine and back on but come on shortly again. It did this for quite a while till the engine light for derate came on and would not go till dealer removed it.
