Need advice on frame

Discussion in 'Ask An Owner Operator' started by Tama Mai Hawaii Nei, Mar 21, 2019.

  1. Tama Mai Hawaii Nei

    Tama Mai Hawaii Nei Light Load Member

    221
    83
    Sep 6, 2013
    Florida
    0
    I wanted some advice from other owner-operators instead of a mechanic. I'm about done with dealing with know it all mechanics that can't properly diagnose or fix anything.

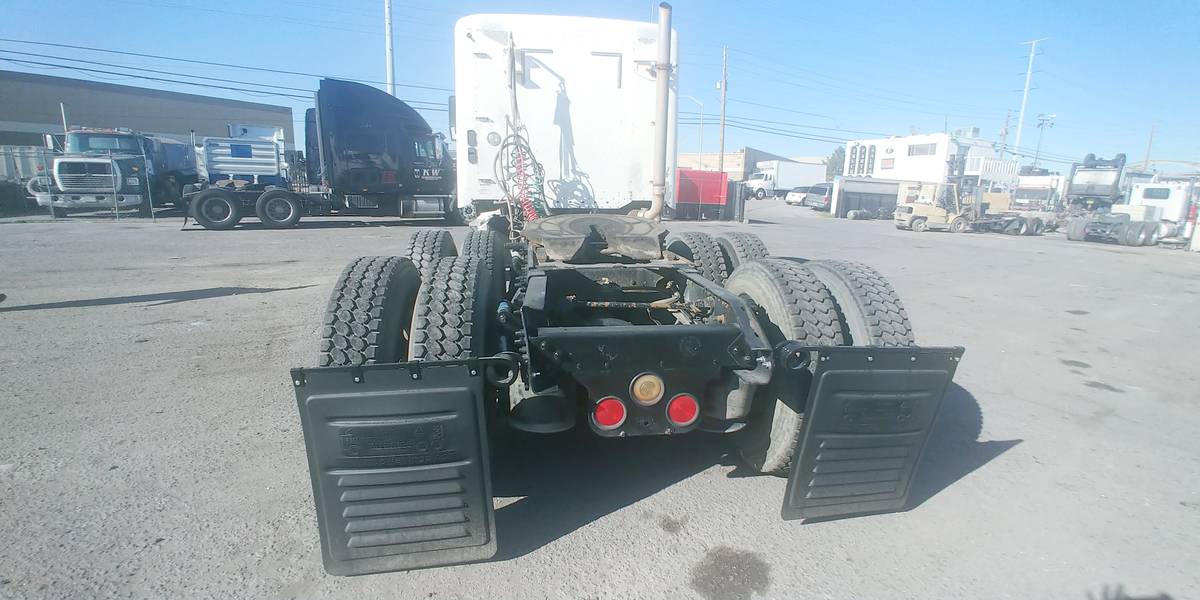

    Here is what I am dealing with. I jackknifed my truck in doing so the trailer caught the frame bent the driver's side. The frame is still straight past the bend but the frame is twisted where the trailer caught it.

    Can I just heat that portion and bend it back in place? Alignment is still good nothing past the end there is twisted or kinked. I was thinking I could bend it back into place and reweld a few pieces of metal back on. Freightliner 10.jpg

    Johny41 Thanks this.
  2. Bakerman

    Bakerman Road Train Member

    3,785
    5,898
    Jan 27, 2013
    Phoenix, AZ
    0
    That doesn’t look like a big deal, I would try using a come along and BFH

    Tama Mai Hawaii Nei Thanks this.
  3. Hulld

    Hulld Road Train Member

    1,751
    3,193
    Oct 19, 2015
    Upstate NY
    0

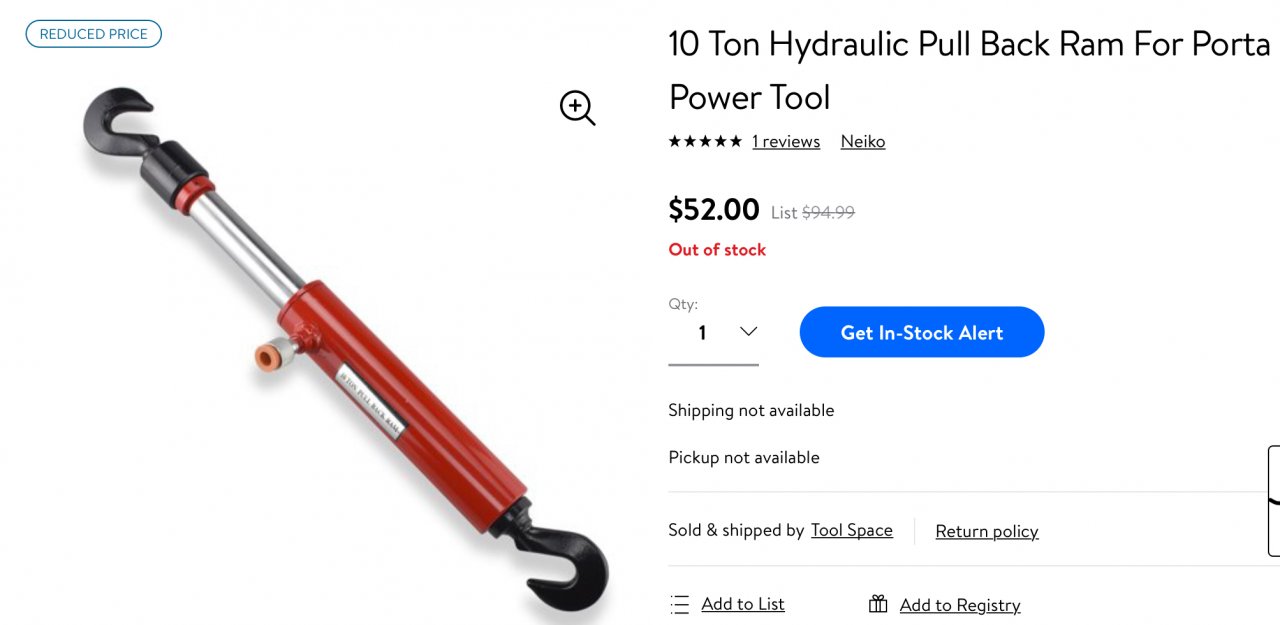

    Use a porta power pull cylinder like this.
    Doesn’t look like a big deal.

    Tama Mai Hawaii Nei Thanks this.
  4. cjb logistics

    cjb logistics Medium Load Member

    659
    466
    Aug 13, 2016
    Liberal Ks
    0
    Go to a professional, you cannot heat, weld, or drill on a frame rail, useless certified.

    Have I added a new tool box, blower, etc; yes, but talked with manufacture to see proper placement and spacing from flange of holes to be drilled.
    I don't even like to burn off huck bolts, rather split them with grinder then power chisel.

    Or use porta power like above op says.

    Tama Mai Hawaii Nei and Johny41 Thank this.
  5. Chebbydriver7195

    Chebbydriver7195 Light Load Member

    113
    116
    Feb 24, 2019
    0
    Go to a shop that specializes in frame work. They should be able to fix it and brace it if need be. You could bend it back but I wouldn't heat it and I'd be careful of cracks.
    I straightened the frame on an old truck with a torch, hammer and a home made press. It felt good until I plowed into a ditch while hunting and it folded in half.

    Tama Mai Hawaii Nei Thanks this.
  6. superhauler

    superhauler Super Crusty

    7,813
    52,462
    Jan 30, 2010
    0
    Any good frame shop can make that straight again. With out heat. Dont heat it you will take the temper out of the steel.

    Tama Mai Hawaii Nei and AModelCat Thank this.
  7. DL550CAT

    DL550CAT Road Train Member

    1,413
    1,449
    Oct 18, 2009
    Waynesburg, Pa
    0
    If it’s all behind the suspension then yes you can heat and beat. Be mindful of air and electric lines. The air bags as well.
    I’ve been told you should always disconnect the batteries before welding but I never do. I can’t see it doing anything other than isolating the batteries. Keep your ground clamp near to where you are working and make sure it has good contact.

    Tama Mai Hawaii Nei Thanks this.
  8. 6wheeler

    6wheeler Road Train Member

    2,139
    2,947
    Aug 30, 2009
    Charlottesville, VA
    0
    Sure you can. Remember when stretched cabovers were popular?

    Tama Mai Hawaii Nei Thanks this.
  9. Freightliner Classic

    Freightliner Classic Light Load Member

    86
    64
    Dec 17, 2018
    Rome GA
    0
    you can heat the frame and bend it but aslong as if isn't farther than a foot from the back dont worrie about it

    Tama Mai Hawaii Nei Thanks this.
