2004 Freightliner Classic XL
VIN- 4DM82101
I am in need of wire diagrams for the cab and engine. Alternatively a service manual or complete factory repair manual would suffice!!! If you know a way I may obtain these please let me know your recommendation and I greatly appreciate all help offered.
Need wiring schematics/diagrams.
Discussion in 'Freightliner Forum' started by KingsEmpires, Oct 29, 2024.
-
-
Trucking Jobs in 30 seconds
Every month 400 people find a job with the help of TruckersReport.
-
Couple of things to note:
1. What are you referring to exactly that you need wiring for? This will better help me get to the component.
2. Keep in mind this wiring is only for what the truck was built with--stock. So any modifications thereafter need to be considered on your behalf.
Here is an example of your S60 dash harness (inside bulkhead connector):
Here is the engine harness (other side of bulkhead connector):
Example of a installation drawing:
QUALITYTRUCK Thanks this. -
-
Hopefully you didn't mess with the dip switches on the back.

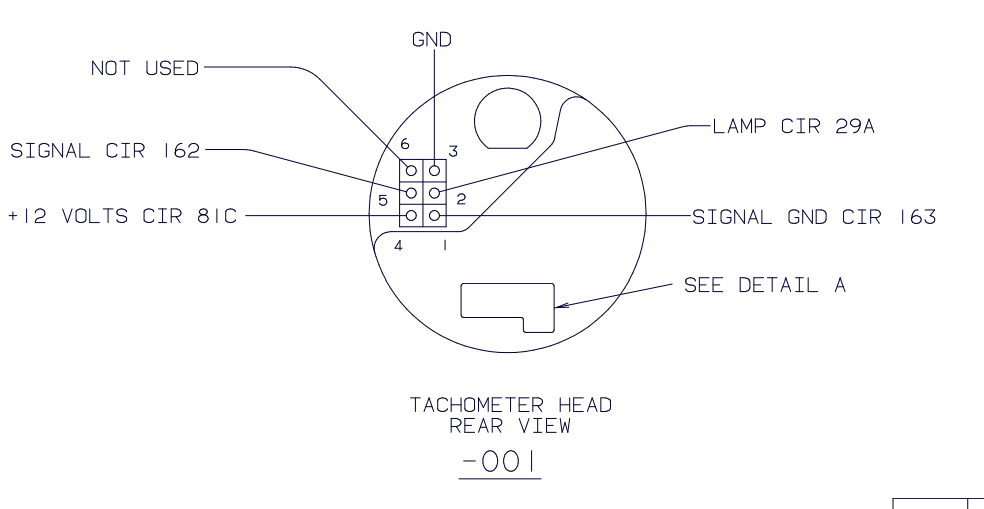

The back of your tach should be this:

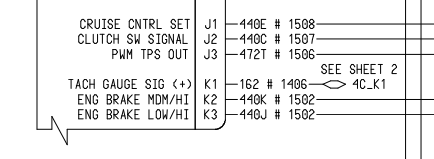

The ECU has the signal for tach here as 162:

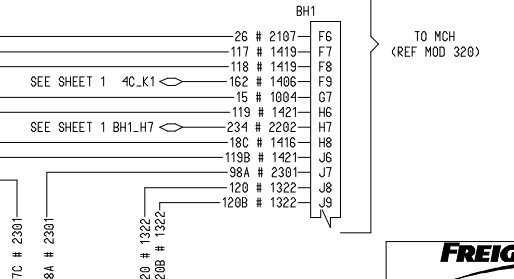

Circuit 162 goes to the BH1 connector on the firewall:

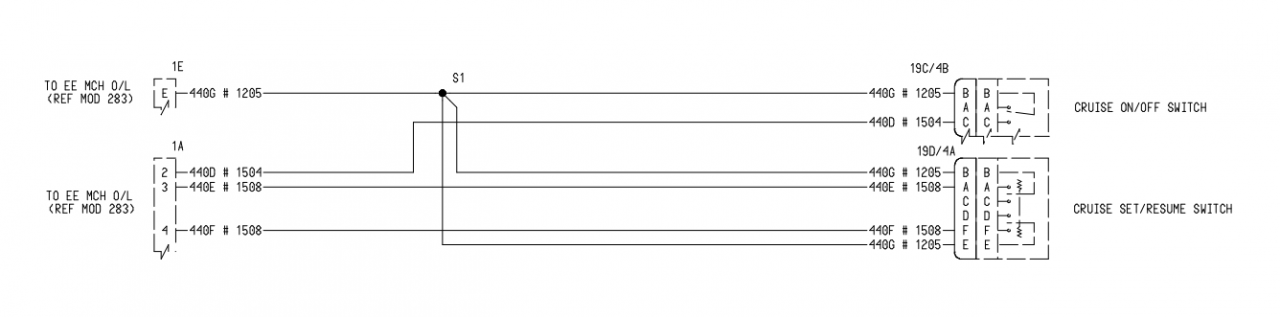

Here's the cruise swtich:
QUALITYTRUCK Thanks this. -
-
