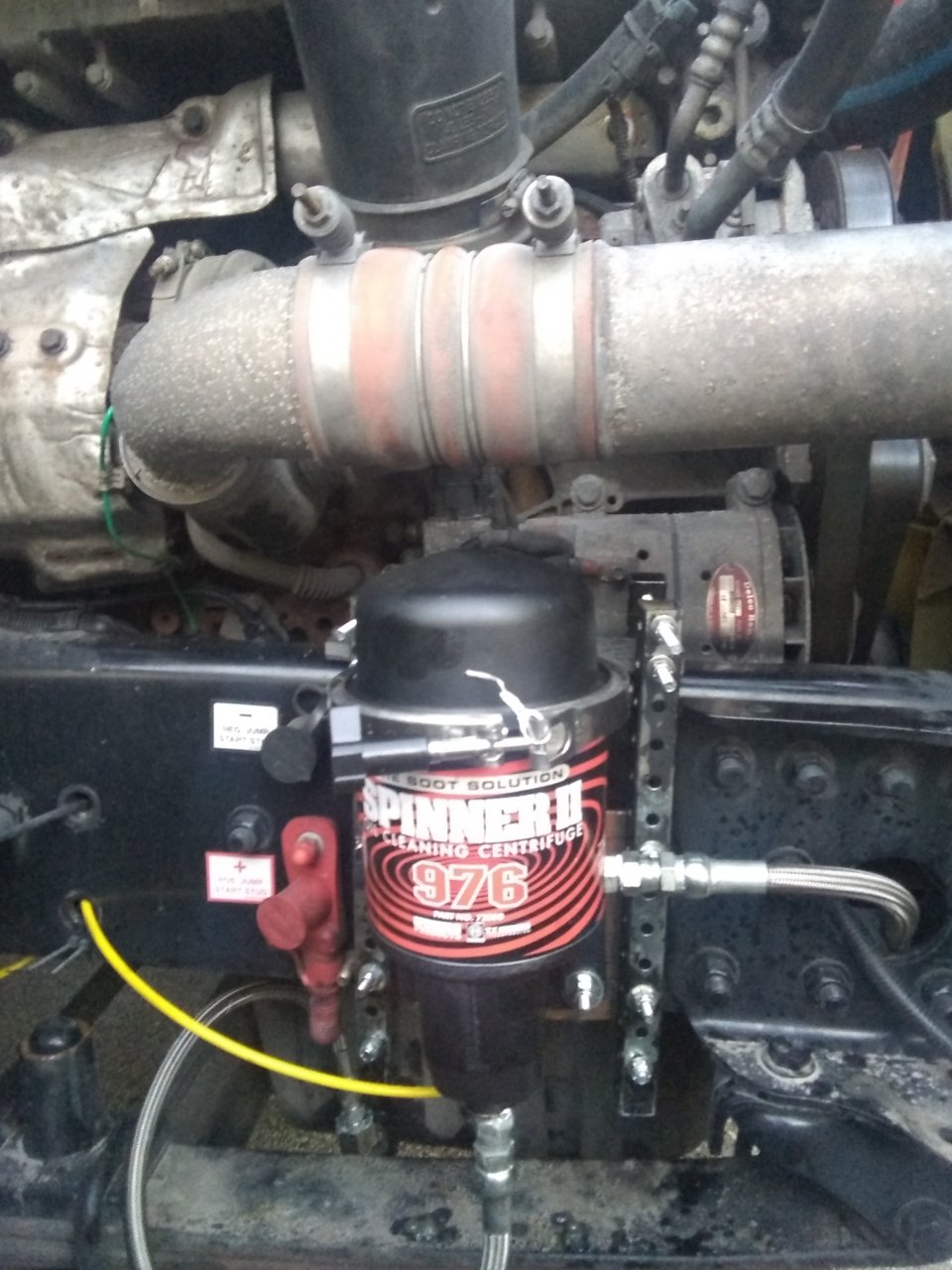

    Spinner oil centrifuge installation tutorial on a Detroit. No frame drilling.

    * Consult your local mechanic, this is a tutorial, perform and proceed at your very own risk.

    * Installation parts can be found at DiscountHydraulicHose.com: My List or by visiting directly discount hydraulic hose. They are reliable and do an outstanding job pressing the fittings to the hoses. They are located in Pennsylvania; again, they provide an incredible business. fantastic. unbelievable.

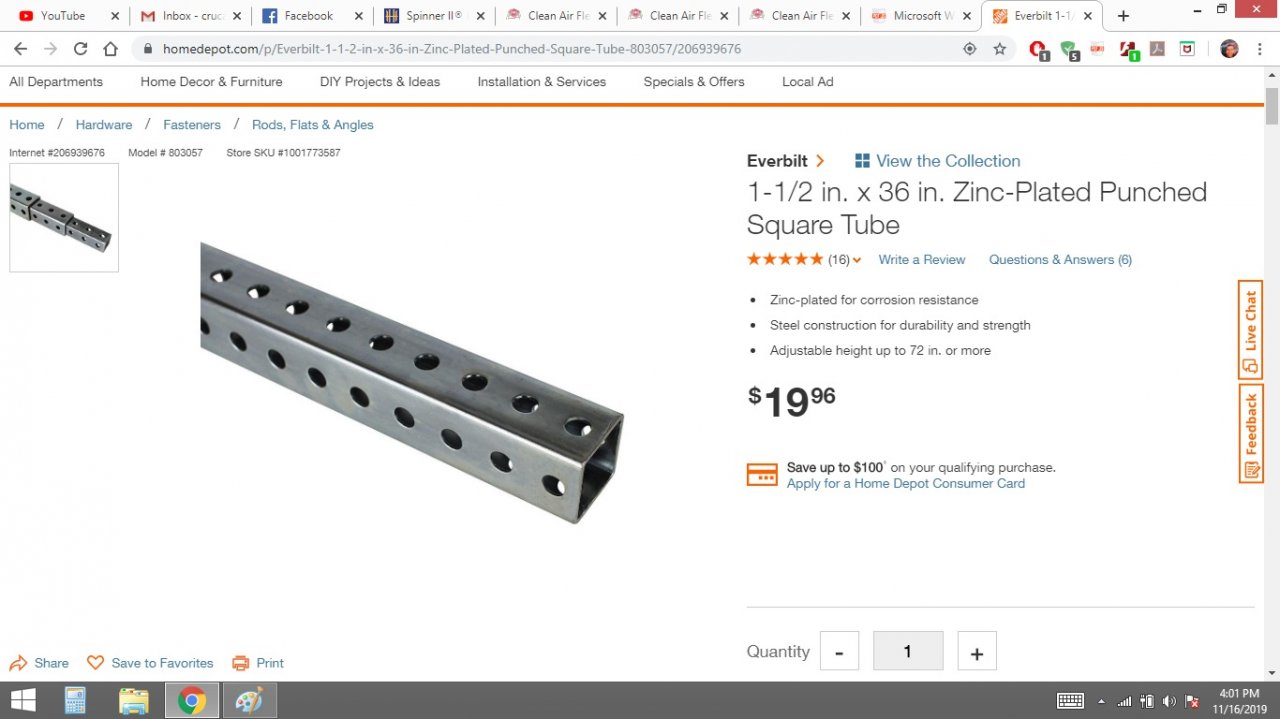

    * Installation mount materials can be found at your local home depot. The rail size is listed on the attachments and the metal plate is the largest on stock usually at the end of the fastener isle where there is a gray desk looking structure holding vertical rods and metals. Plates are usually hidden at the bottom. reach out and under. Good luck.

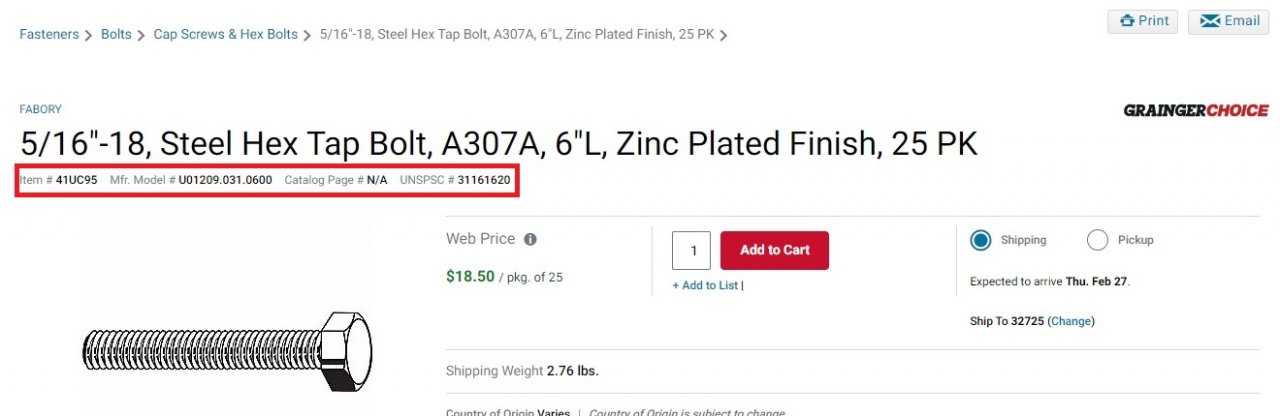

    * Grainger bolts that connect over the frame are long and durable enough to reach both sides of frame. They are zinc plated, but they will hold near 0 F temperatures and many of them together will secure the centrifuge strong enough to support against rough roads.

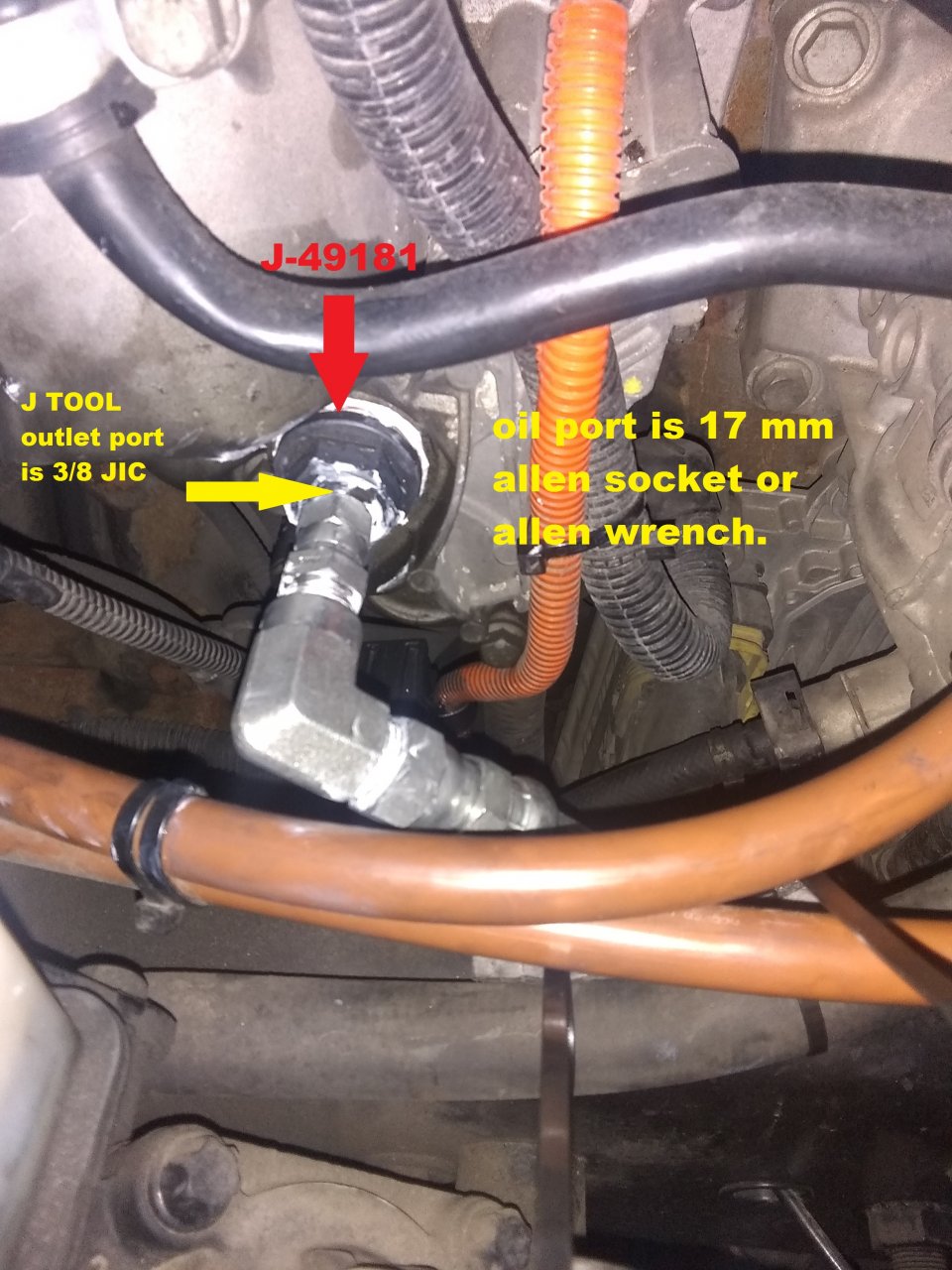

    * J 49181 tool is most important it keeps the oil port open costs around $80 dollars.

    * Metal zip tights are recommended to secure the inlet and outlet hoses from one side of the engine to the other. Keep in mind that oil travels through them and if they get punctured by the fan a catastrophic oil lost will occur. lol.o_O

    * DO use PVC glue or liquid Teflon on all joints before connecting and MUST let the glue dry for at least three hours before starting the engine.

    * M33x2 is the thread size of the oil port and I can be opened with a 17 mm Allen socket. The oil pan hole is M27x2 not the same size as the port located near the oil filter.

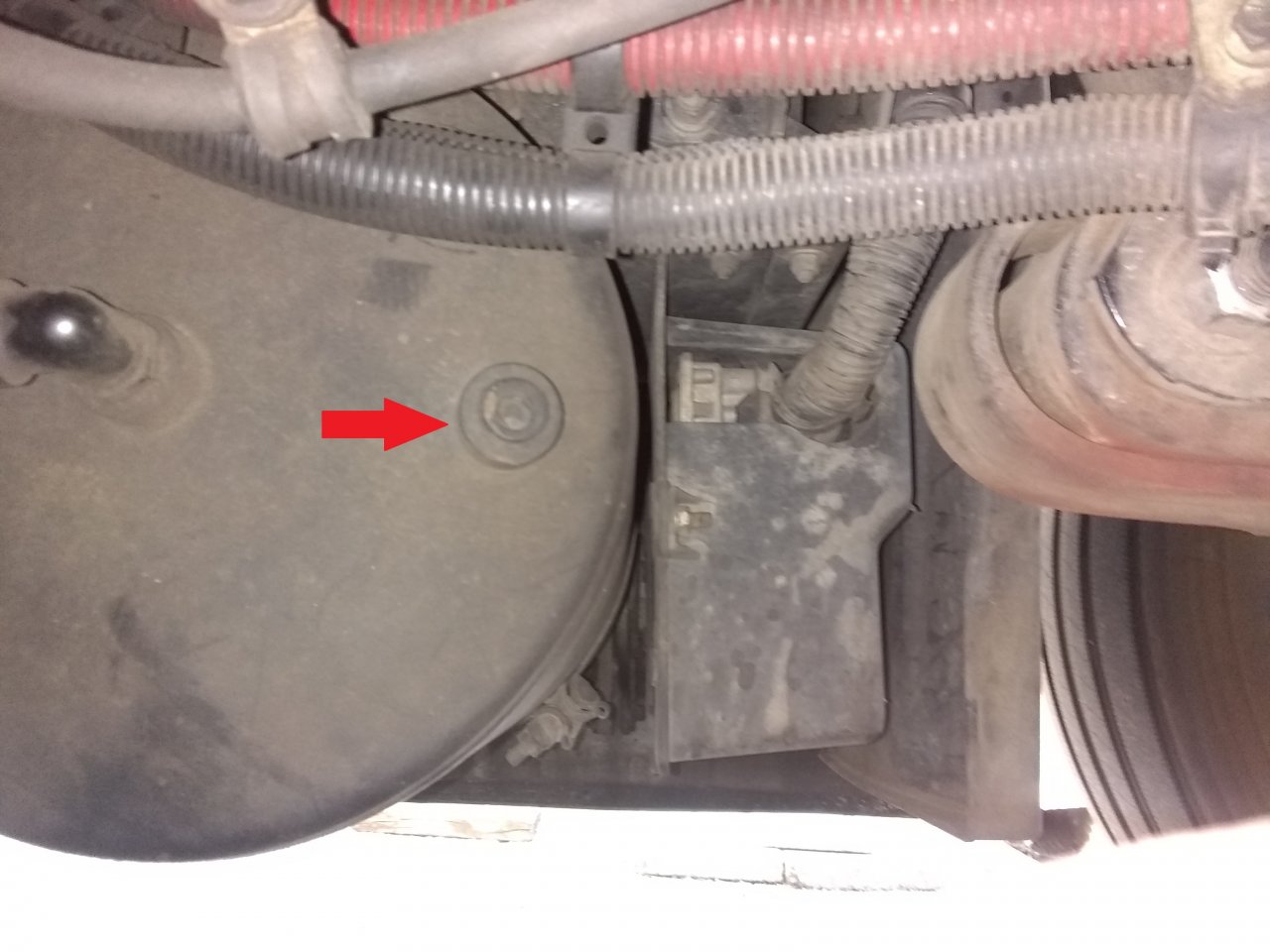

    * Zoom in on the pictures and you will notice a gray rubber pieces. These pieces are a cut out of a gym pad purchased at home depot look near the paint isle bottom shelf right side. Remember to protect the Grainger bolts from impacts and to also protect hoses from touching each other using this type of rubber cut outs. When touching each other they have the tendency of bursting fluid.

    * Remember to re tighten the Grainger bolts to ensure they remain in torque and also to use nylon nuts to secure every single part of the structure.

    * Spinner 2 is expensive. IOWA 80 truck stop website sells it for $800 dollars; however, it can be found and purchased searching Ebay for about half of that price. Some are new or some are used. Also, some International trucks also carry an oil centrifuge, so an international oil centrifuge will also work.

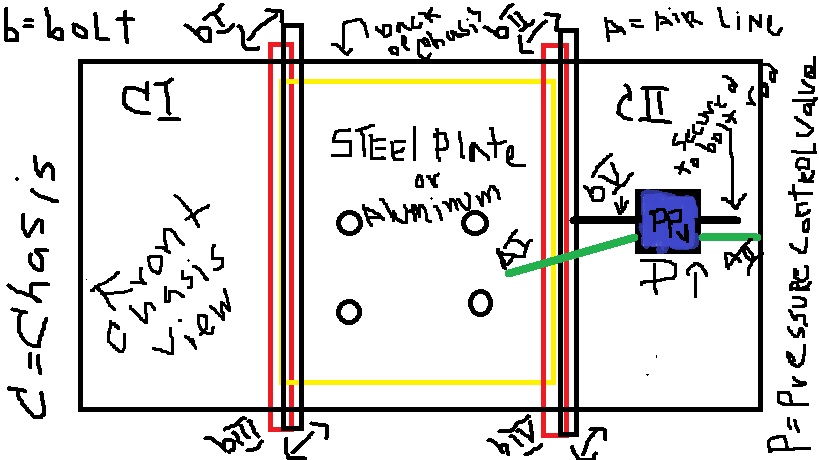

    air tank2.jpg grainger frame bolt .jpg IMG_20200103_174258184.jpg IMG_20200103_174347053.jpg spinner frame.jpg spinner mount design.jpg


    Attached Files:

    Last edited: Feb 23, 2020
    Wespipes and Dave_in_AZ Thank this.
  2. crucar1800

    crucar1800 Light Load Member

    147
    50
    Sep 21, 2012
    0
    update:
    * return oil line from spinner back to oil pan must be from the driver side oil drain port. The nearest port closer to the spinner does not allow the oil to drain completely during an oil change. The passenger side oil drain port is designed to completely drain as the lowest point of the pan.

    * The images below demonstrate how effective the spinner oil centrifuge is after centrifuging oil for 16,000 miles. Driving conditions include: severe wind, heavy loads and mountain pass driving. The amount of gelatin soot removed from the spinner onto the pan is greater than shown in the picture. In the last picture, the clean section of the spinner is not a reflection is the color of the metal after removing a layer of soot.

  3. Dok2304

    Dok2304 Light Load Member

    60
    2
    Sep 19, 2013
    0

  4. Dok2304

    Dok2304 Light Load Member

    60
    2
    Sep 19, 2013
    0
    I’m looking for one too on D60. I already purchased the amsoil bypass filter bmk30, but I think Spinner II will be a better choice.

  5. not4hire

    not4hire Road Train Member

    5,972
    19,197
    May 16, 2012
    Calgary
    0
    Good tutorial.

    Only one nit to pick...
    Teflon sealant (tape or liquid) should never be used with hydraulic fittings (JIC). These fittings are designed for metal-to-metal contact. Just like any hydraulic system, errant bits of thread sealer could be catastrophic in the oil system. Loctite does make a high pressure thread sealer for hydraulic connections, but it is not necessary in this application.

    Teflon sealant should be used properly (leave the first 2-3 threads bare) on pipe thread (NPT) connections.

    crucar1800 Thanks this.
  6. Dok2304

    Dok2304 Light Load Member

    60
    2
    Sep 19, 2013
    0
    Looking for a D60 tutorial!

  7. crucar1800

    crucar1800 Light Load Member

    147
    50
    Sep 21, 2012
    0
    Thanks. You're right. It is not necessary. JIC locks tight enough as it is. I decided to use it on the thread only to have the JIC metal to metal pressure plus the Teflon on the thread. I could also picture what you mention someone dipping the JIC into the Teflon jar or brushing the entire joint with it to the point that it makes it into the oil. I wrote use your discretion because I am almost certain someone may not do their own schematic with check list resulting in something deficient.

    not4hire Thanks this.
  8. crucar1800

    crucar1800 Light Load Member

    147
    50
    Sep 21, 2012
    0
    Don't really need one for D60. Locate the oil port near the oil filter and purchase the hoses and fittings. Just knowing about discount hydraulic hose website is a great advantage. It's difficult to find everything in one site alone.

  9. crucar1800

    crucar1800 Light Load Member

    147
    50
    Sep 21, 2012
    0
    Amsoil seems outstanding. The only observation is the need to purchase filters every 12k miles depending on your interval. It would be better than spinner if regular oil filters could fit their mount. I did research and couldn't confirm their size, so I don't know.

  10. Dok2304

    Dok2304 Light Load Member

    60
    2
    Sep 19, 2013
    0
    They’re big, and cost $40, but I see that Spinner II is better in long run. No filter to replace, plus less restriction I think, you have the air supply that helps spin the oil inside.
