OTR reset tool- are their any codes that it WONT bypass

Discussion in 'Experienced Truckers' Advice' started by DAX_, Feb 1, 2025.

  1. DAX_

    DAX_ Medium Load Member

    557
    415
    Sep 4, 2017
    0
    Obviously if you have real mechanical issues like a leak or physically damage I don’t expect it to bypass those


    But for sensor or circuit codes, particularly emission related , will the tool pretty much be able to bypass all of them?

    I currently have multiple codes that I will attach in post

    A lot SHOULD be covered under warranty but will it be best to just get the tool and run for a few weeks or get it fixed right away.
    The truck currently(knock on wood) has not derated yet and i have driven 300 miles since the codes came on


    I’m going to a dealership. Seeing the price and cost to fix. If it cost more than what the tool cost I plan to just buy the tool, but not if it won’t be able to bypass.


    Attached Files:

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. 062

    062 Road Train Member

    6,115
    33,048
    Oct 20, 2013
    0
    No experience with that product, but I don’t think it will help with the codes you have.
    The 9 is for abnormal update rate. You may have a problem with a harness or possibly a failing acm.
    Either way it’s probably going to get worse.

  4. JonJon78

    JonJon78 Road Train Member

    6,979
    37,151
    Jul 1, 2018
    0
    I pay for the yearly subscription. It not only allows you to clear codes but also will tell you the sensor needed to fix the issue etc etc.

    Definitely worth it IMO if you have a basic tool set and don't mind crawling under the truck to change out a NOX sensor or something like that.

    North Pole Nightmare and DAX_ Thank this.
  5. DAX_

    DAX_ Medium Load Member

    557
    415
    Sep 4, 2017
    0
    So you’re able to do the full diagnostic with it? The diagnostic Freightliner charges $400 for?

  6. JonJon78

    JonJon78 Road Train Member

    6,979
    37,151
    Jul 1, 2018
    0
    I have a peterbilt with Cummins. Haven't been to a shop/dealer one single time for aftertreatment codes since I've had the OTR tool which has been over 3 years now. Here is a screen shot of a recent code issue...

    I cleared it once or twice then on the 3rd time it came on I knew the sensor was definitely bad, replaced, and it's never come on again.


    Sometimes the codes are bogus "ghost codes" that's why I always clear them once ( or twice) if needed before wasting money on a new sensor.

    Not sure about a 100% full diagnostic, but I'd say pretty close in terms of fault codes for DPF-aftertreatment issues...

    IMO, one single use of the OTR tool per year more than pays for itself. Definitely wouldn't be rolling around the country without one. It's certainly peace of mind.




    Screenshot_20241216_125956_OTR Diagnostics.jpg

  7. JonJon78

    JonJon78 Road Train Member

    6,979
    37,151
    Jul 1, 2018
    0

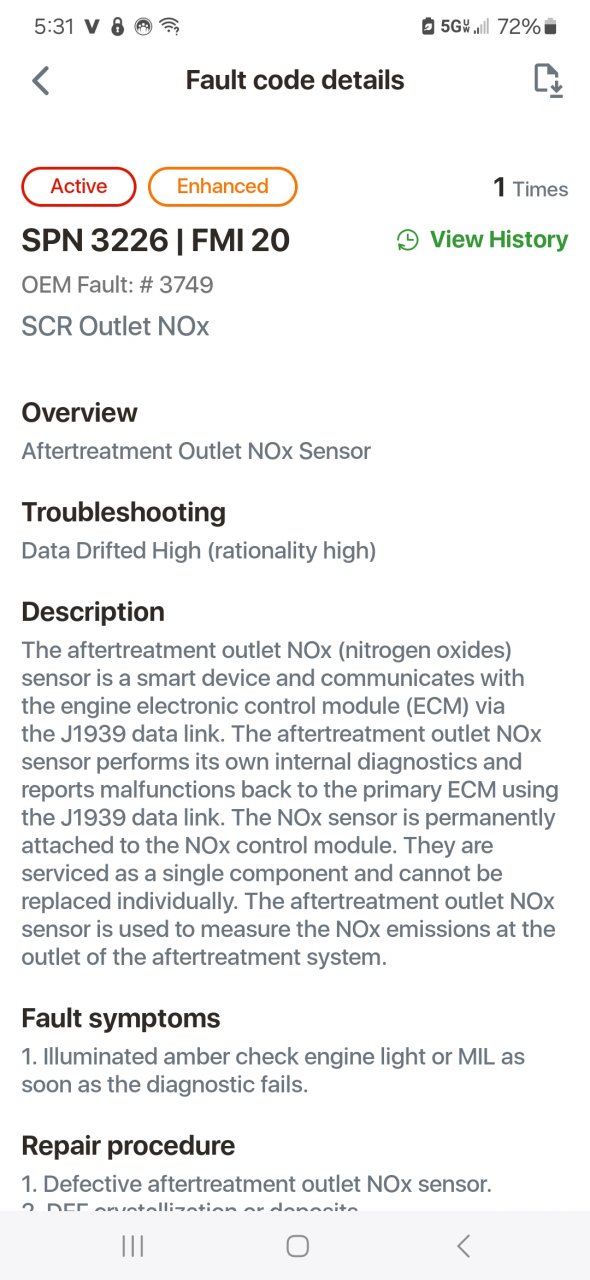

    Here's another from when I needed a NOX sensor and truck was in derate mode.

    Screenshot_20250113_173108_OTR Diagnostics.jpg

    Diesel Dave Thanks this.
  8. North Pole Nightmare

    North Pole Nightmare Heavy Load Member

    789
    1,547
    Dec 15, 2021
    0
    I just bought one a month ago,they were on sale for $499,paid for itself already.

    Diesel Dave, DAX_ and JonJon78 Thank this.
  9. JonJon78

    JonJon78 Road Train Member

    6,979
    37,151
    Jul 1, 2018
    0
    This video has a $100 off coupon code in the description for the reset tool. Not sure if it still works but worth a try if you plan on purchasing it.


    DAX_ Thanks this.
  10. DAX_

    DAX_ Medium Load Member

    557
    415
    Sep 4, 2017
    0
    Is this the one


    Attached Files:

  11. JonJon78

    JonJon78 Road Train Member

    6,979
    37,151
    Jul 1, 2018
    0
    Yes

    DAX_ Thanks this.
