    Afternoon Guys

    How do 8 tire axles get weighed out here in the US?

    I've been trying to find anything online for North Dakota and I'm coming up dry.

    Would it ALWAYS be a permit for something like that or would you legally be allowed something like 30,000lbs or 40,000lbs for that one axle?

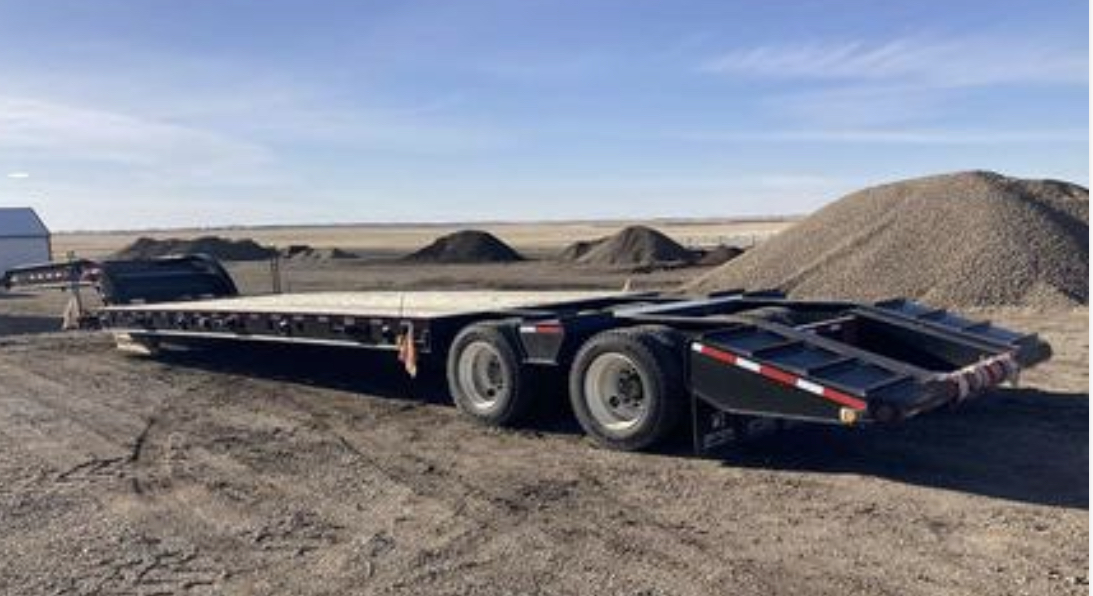

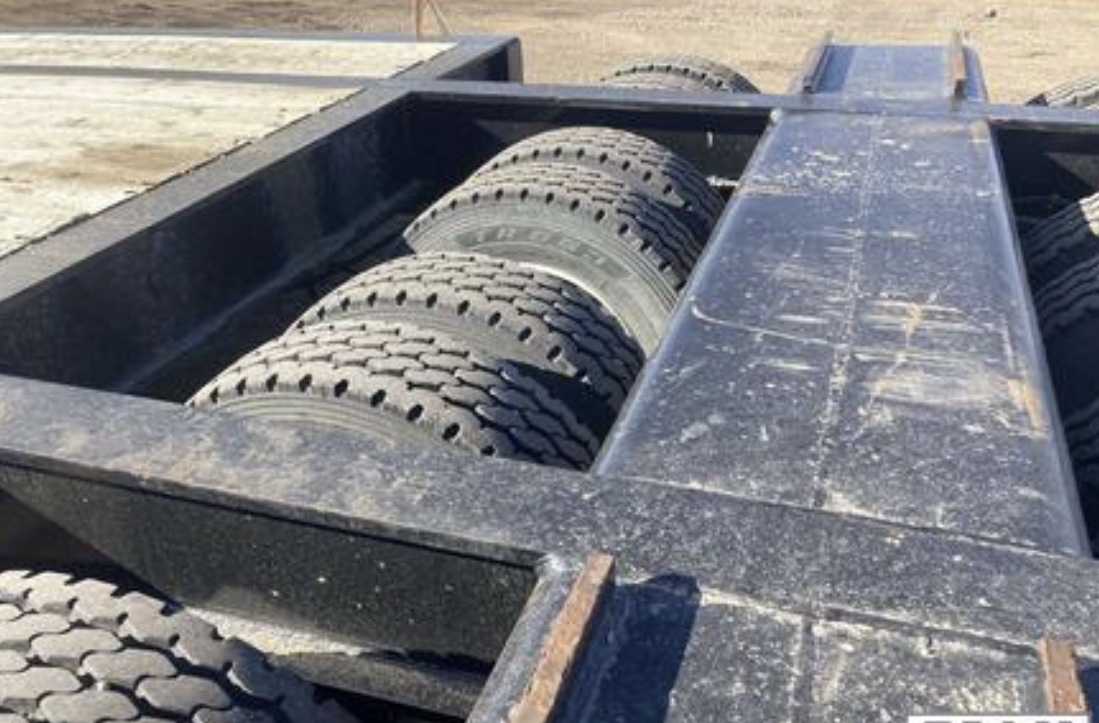

    5F52DC45-6AE6-480F-A865-AC119A4236A6.jpeg 1DCE4A21-A6DA-449B-B29B-EC4B63608C72.jpeg

    CAXPT Thanks this.
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Rontonio

    Rontonio Road Train Member

    5,715
    40,405
    Aug 9, 2009
    0
    It will vary from state to state on what the states will permit for. The farther east you go the less you get. A lot of states will only permit the trailer as a standard 2 axle trailer. Depending on the axle spacing and width you can 60k or more in some states. CA, NV and AZ are very common - 10’ wide axles and 6’ axle spacing. Some states will call them trunnion axles.

  4. Rontonio

    Rontonio Road Train Member

    5,715
    40,405
    Aug 9, 2009
    0

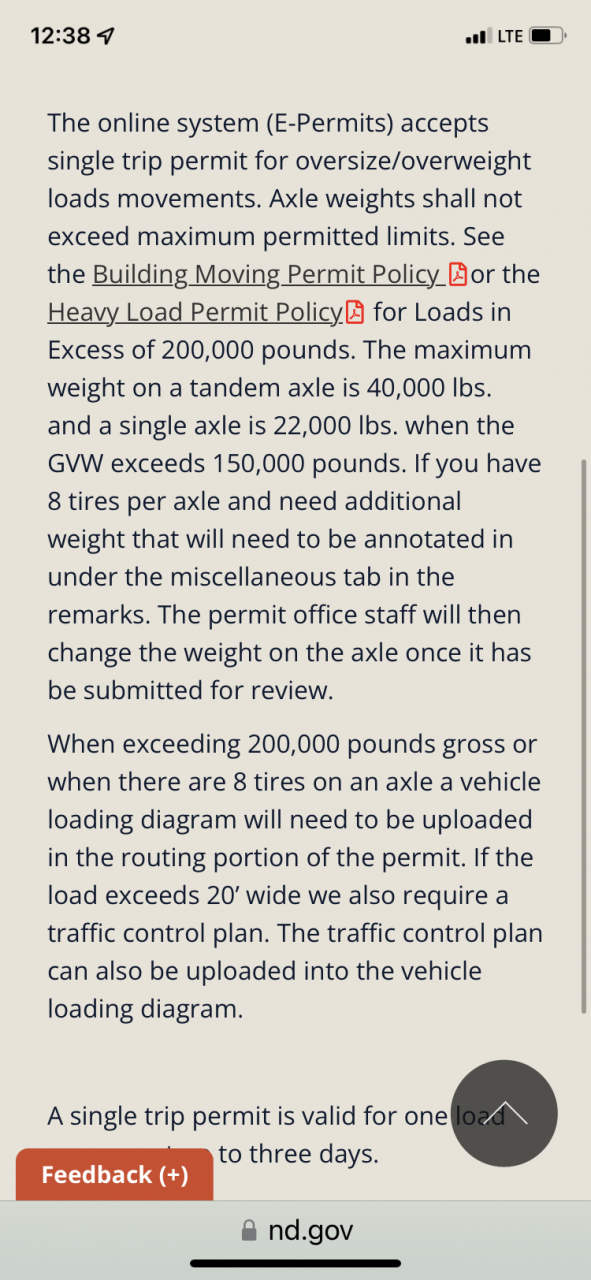

    Here is the information from the. Roth Dakota permit site. It looks like you must give them a vehicle diagram with tire size, axle spacing and axle width to justify the weight you are requesting - probably 60k.

    Hope this helps

    cke, kylefitzy, truckdad and 2 others Thank this.
  5. bonder45

    bonder45 Road Train Member

    1,477
    4,016
    Oct 2, 2011
    Williston, ND
    0

    I must have missed this! Thank you

    CAXPT Thanks this.
