Replace two time alternator both brand new but voltage read 12.2.

Discussion in 'Freightliner Forum' started by Danny50, Jul 1, 2022.

  1. Danny50

    Danny50 Bobtail Member

    15
    4
    Jul 1, 2022
    Texas
    0
    I replace the battery (Brand New) T/A replace first Alternator (Brand New) and voltage read 12.2. Freightliner replace alternator(Brand New) and the cut off switch too…but voltage read 12.2 OH!!! and I replace starter (Brand New).
    freightliner shop took 1 week and they can’t find what was the problem…I spend $1680 for nothing.
    My Truck is a Cascadia 2011 DD15

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. ibcalm19

    ibcalm19 Road Train Member

    1,253
    1,915
    Nov 30, 2015
    Pennsylvania
    0
    I remember a friend of mine had a similar problem with oil pressure reading. He had all this parts replaced a few thousand(replaced ecm). Come to find out a bad wire was the problem. All was start with the simple things first the wiring. If there is a break in the wiring or bad connection along the wiring you are not going to get a good reading. All the best to finding that electrical headache. o_O:confused::eek:

  4. 201

    201 Road Train Member

    9,884
    19,735
    Apr 16, 2014
    high plains colorado
    0
    Well, not for nothing, at least you have new parts, even though it may be something as simple as a bad ground. Does the alternator get hot? Also, I wouldn't trust a dash gauge entirely, and sometimes, a good rap on the gauge gets results. Electrical gremlins are the #1 problem of older trucks. Start with a new ground to the engine and/or cab.

  5. Danny50

    Danny50 Bobtail Member

    15
    4
    Jul 1, 2022
    Texas
    0
    alternator it’s not hot…check cables…+cable goodness…-negative cable oh god. Need to replace the whole thing. i hope it's the wires.

    Last edited: Jul 1, 2022
    201 Thanks this.
  6. Danny50

    Danny50 Bobtail Member

    15
    4
    Jul 1, 2022
    Texas
    0
    alternator it’s not hot…check cables…+cable goodness…-negative cable oh god. Need to replace the whole thing. i hope it's the wires.

  7. uncleal13

    uncleal13 Road Train Member

    3,517
    5,545
    Apr 9, 2009
    Humboldt, Sk
    0
    Hmm. Might be a ground problem, check main grounds, especially engine to frame.
    Cascadia does have a voltage sense fuse, it’s only a 5 amp, but usually if it goes the alternator puts out too high volts, like 14.5-14.8 v.

    armo Thanks this.
  8. SWM_TECH

    SWM_TECH Light Load Member

    72
    71
    Apr 15, 2018
    0
    Important to check voltage with a digital multi-meter of each battery when truck is running. I ran into into a bad positive inter-connect battery cable on a Peterbilt one time. The ECM was getting its power from that battery but it was not being charged because one of the positive cable tying the batteries together was bad in a spot but physical appearances of cable would not suggest that.

    Another instance was a Cascadia that was low voltage message on dash. Diagnosing tech indicated voltage loss on positive cable to SAM chassis or near it from battery #2 & needed replaced. He already removed it when I was given job. Made the cable as specified and installed Fault was still there and then I got to some further diagnostics. Measuring the voltage of each battery I found #1(outer front) #3 & #4 that same.. However, battery #2(inner front) was way less. Then measured voltage drop between positive terminals and it was almost nothing. Across negative terminals of #1, #3 & #4 was almost nothing but between battery #1 & #2 it was about two volts where the interconnect cable was missing. Battery #2 is where all there power is feeding for the chassis and cab. It show be the same voltage as all the other batteries if the cables are good.
    Danny50 if you need further help post the last six digits of your VIN and then we can get you more accurate information.

    uncleal13 Thanks this.
  9. Danny50

    Danny50 Bobtail Member

    15
    4
    Jul 1, 2022
    Texas
    0
    VIN# AR4509 last six.

  10. SWM_TECH

    SWM_TECH Light Load Member

    72
    71
    Apr 15, 2018
    0

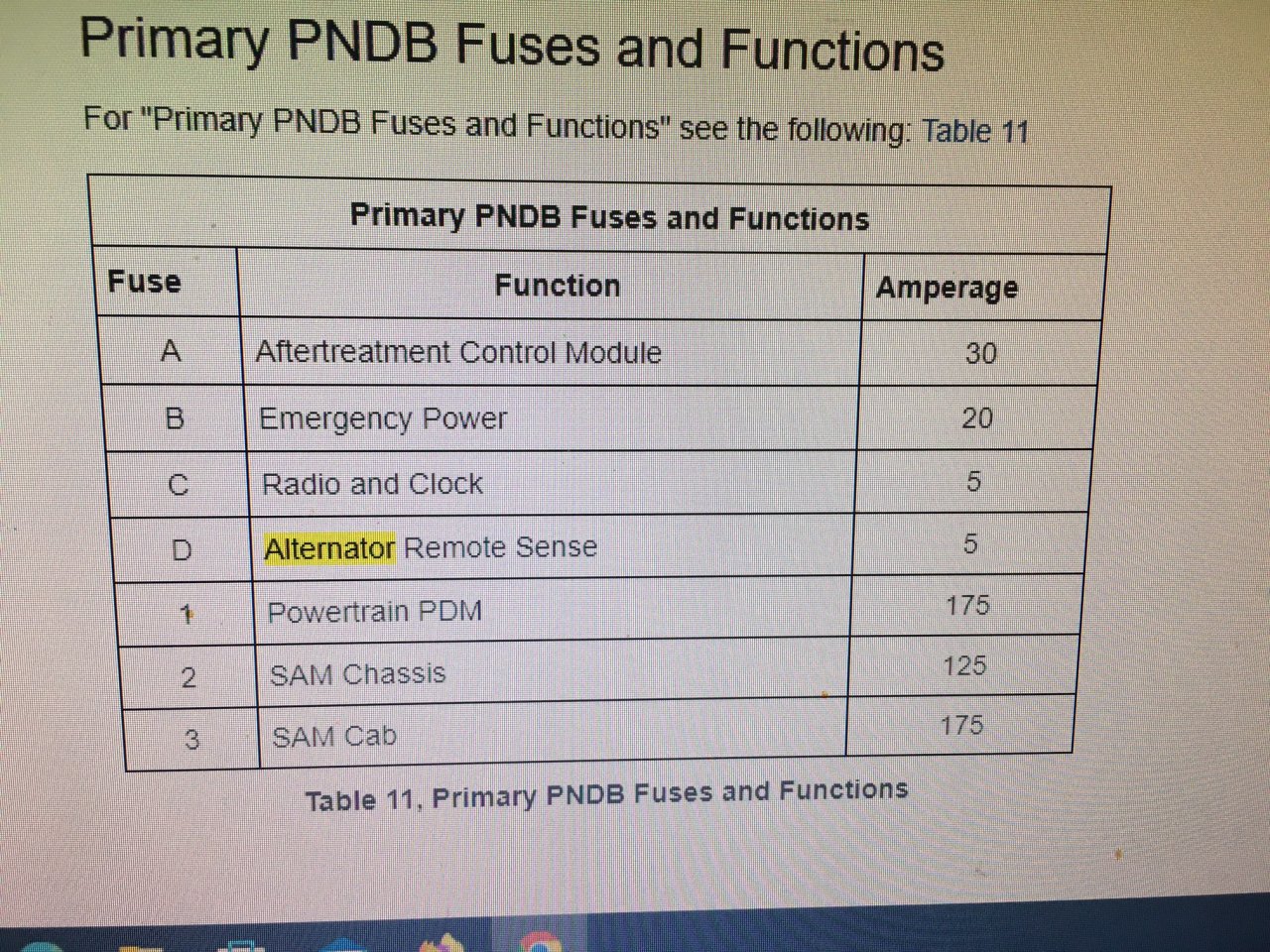

    The alternator remote sense fuse is "Fuse D" a 5 amp fuse in the Powernet Distribution Box (PNDB)
    PNDB_FUSE_CHART.JPG PNDB.JPG Alternator_cables_to_starter.JPG
    Alternator power and ground cables run along lower right side of engine to the starter. Inspect to make sure everything is connected and tight. Then I would with truck running measure voltage at alternator, at starter, at each battery. Also, you have have Mega Fuse Junction Block (MFJB) and Mega Ground Junction Block (MGJB) feeding power and ground to the feeding everything but starter through them. You could check for bad fuse. MFJB.JPG MGJB.JPG Here is the schematic for that. Hope this can help. Please post what your find or if your are able to get problem solved.

    uncleal13 Thanks this.
  11. SWM_TECH

    SWM_TECH Light Load Member

    72
    71
    Apr 15, 2018
    0

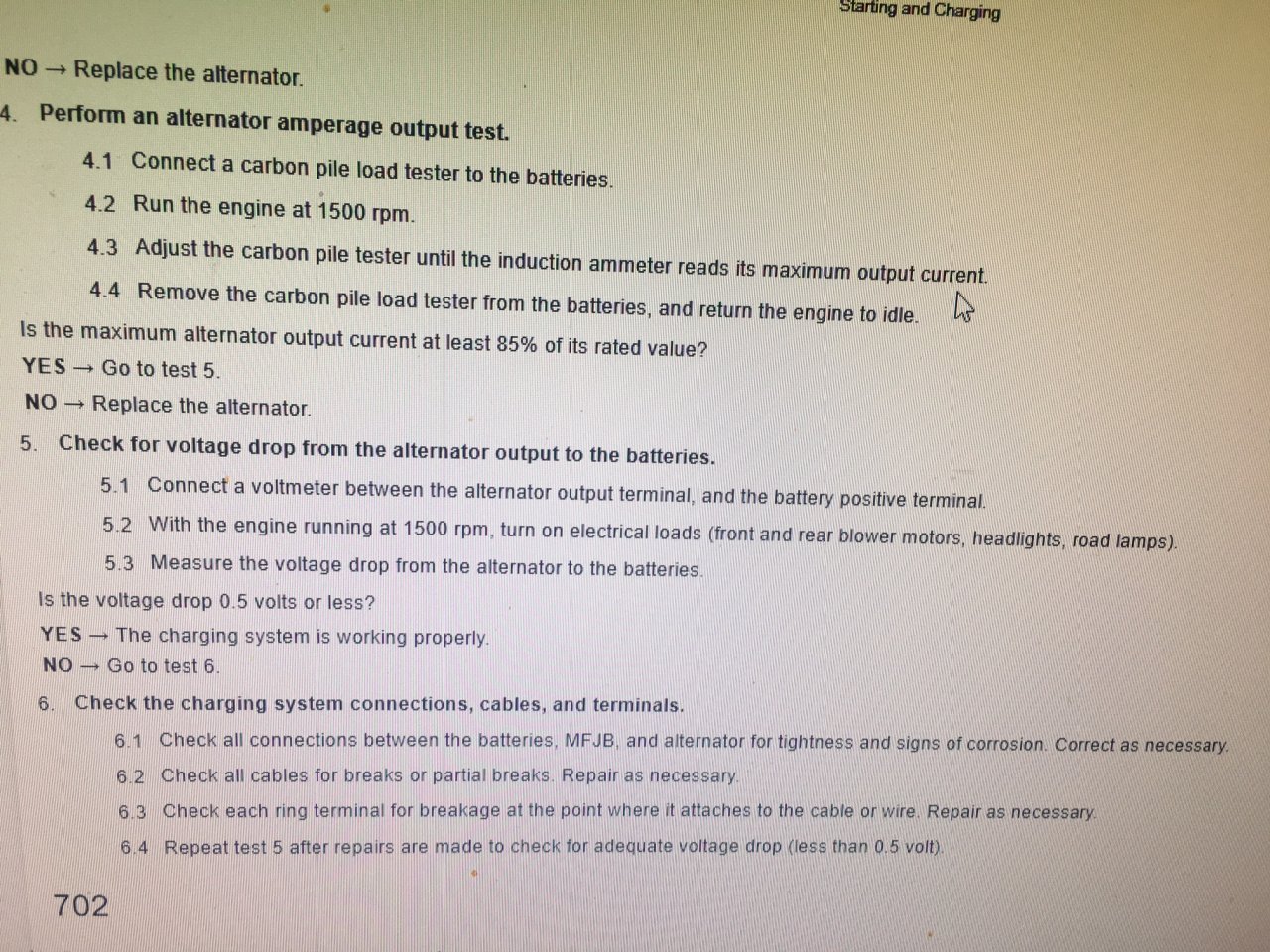

    Danny50 I did a little further searching in service information found some charging system diagnostics steps. Charging_diagnostics_1.JPG Charging_diagnostics_2.JPG Chargings_diagnostics_3.JPG
    The formal steps will help focus your troubleshooting and hopefully get to the cause of problem.
