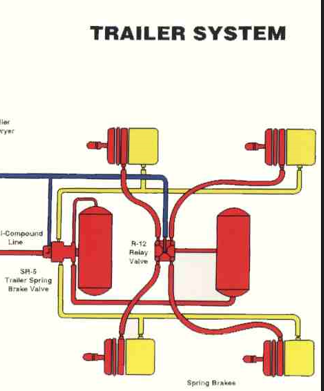

I’ve removed the tanks from this trailer that are 8” in diameter and slightly narrower than the frame rails. Was wondering if I replaced them with one tank that was comparable to both in capacity, would that be sufficient? I’m gonna just run one valve(FF2) for the spring brakes.
Replacing 2 trailer air tanks with 1 tank?
Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by mile marker 27, Mar 20, 2023.
-
-
Trucking Jobs in 30 seconds
Every month 400 people find a job with the help of TruckersReport.
-
-
Rideandrepair, W923, gentleroger and 4 others Thank this.
-
Rideandrepair, gentleroger, JoeyJunk and 2 others Thank this.
-

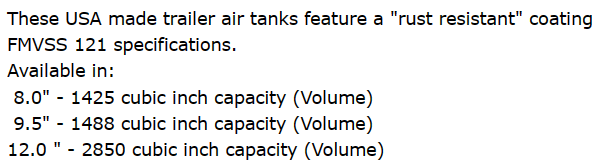

So one 12" tank has the same volume as two 8" tanks. So it looks like it could be done with a lot of hose and fitting work. Then there is the mounting of the tank which likely won't just bolt in place. Again, why?Catmando and mile marker 27 Thank this. -
W923 Thanks this.
-
-
-
Lots of trailers running around with a single tank and some old trailers with spring ride aren’t really that big.
A large tank volume will provide better pressure for city driving with lots of stops in a short time. Idk where the cutoff would be to maintain adequate pressure for lots of quick stops.Vampire and mile marker 27 Thank this.
