Stabiliser bar bushing replacement Airglide 100

Discussion in 'Kenworth Forum' started by Ozdriver, Jul 7, 2021.

  1. Ozdriver

    Ozdriver Heavy Load Member

    752
    1,319
    Oct 16, 2015
    Australia
    0
    I’ve got to replace the rubber bushings on the stabiliser bars where they go onto the alloy pedestal. Can you just remove the pedestal caps and simply drag the axle back with the brakes off, or is it best to unbolt everything and drop the bar? Best to take the wheels off or leave them on? I did a complete stabiliser bar replacement a few years ago when the bars themselves were actually worn, but I just need to replace the rubber bushings this time around. It’s a dual alloy pedestal btw.

  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Milkrun

    Milkrun Light Load Member

    54
    143
    Jun 11, 2021
    0
    Measure the diameter of the bar and you can get solid bushings for it. On my car they are 33MM and I got a kit off Amazon.

    Ozdriver Thanks this.
  4. spsauerland

    spsauerland Road Train Member

    3,853
    9,843
    May 31, 2010
    West Harrison, In
    0
    Roll back with bottle jack with wheels on. I uploaded AG100 service manual and AG200 service manual cause it shows bottle jack trick.


    Attached Files:

    Ozdriver and AModelCat Thank this.
  5. AModelCat

    AModelCat Road Train Member

    22,373
    105,320
    Jul 7, 2015
    Canuckistan
    0
    This isn't a little sway bar on a car. These arms are at least 2 inches round and actually hold the axles to the suspension. Don't think you'd be able to get a solid bushing onto the bar and around the bend.

    Milkrun and spsauerland Thank this.
  6. Ozdriver

    Ozdriver Heavy Load Member

    752
    1,319
    Oct 16, 2015
    Australia
    0
    Thanks. That’s going to be very useful. I’ll get the parts this morning. Probably use my portapower instead of a jack, interesting they don’t show the dual pedestal version of the AG100.

  7. Slowpoke KW

    Slowpoke KW Road Train Member

    1,125
    12,653
    Dec 7, 2015
    OK
    0
    Appreciate ya posting those

    A portapower is what I used when I done mine last time but have also used the bottle jack in years past.

    Ozdriver and spsauerland Thank this.
  8. Ozdriver

    Ozdriver Heavy Load Member

    752
    1,319
    Oct 16, 2015
    Australia
    0

  9. Ozdriver

    Ozdriver Heavy Load Member

    752
    1,319
    Oct 16, 2015
    Australia
    0

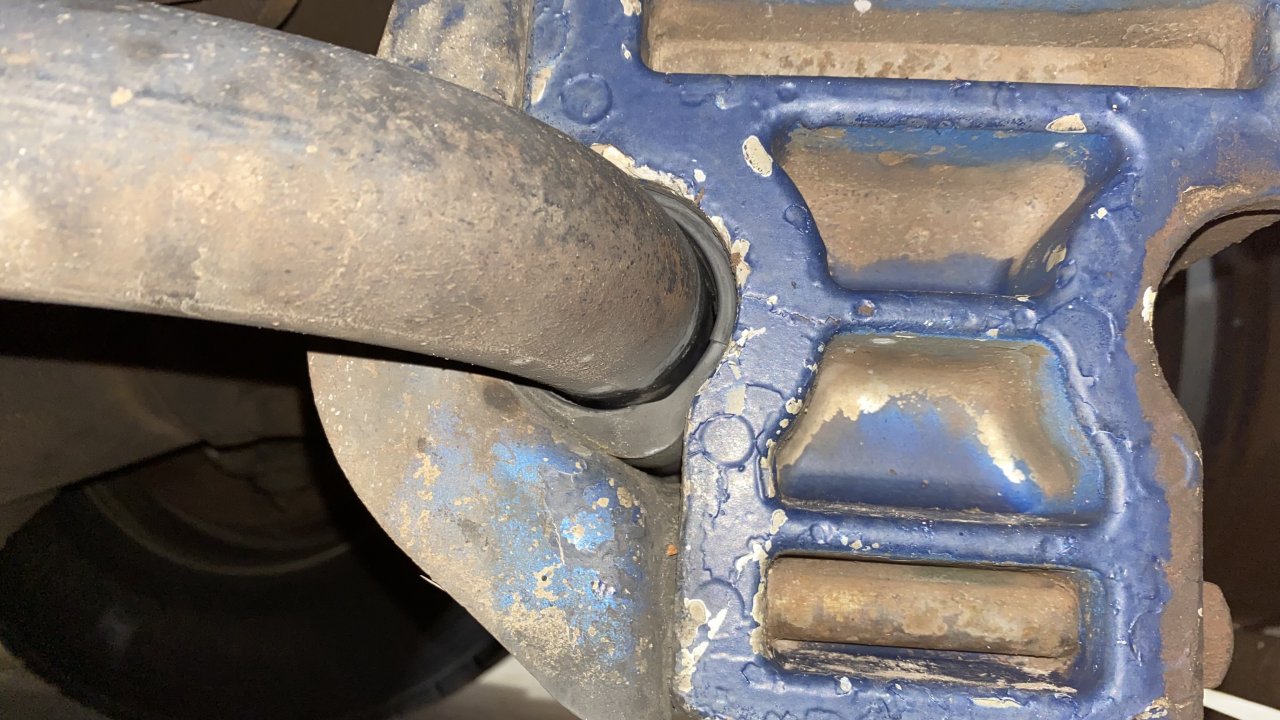

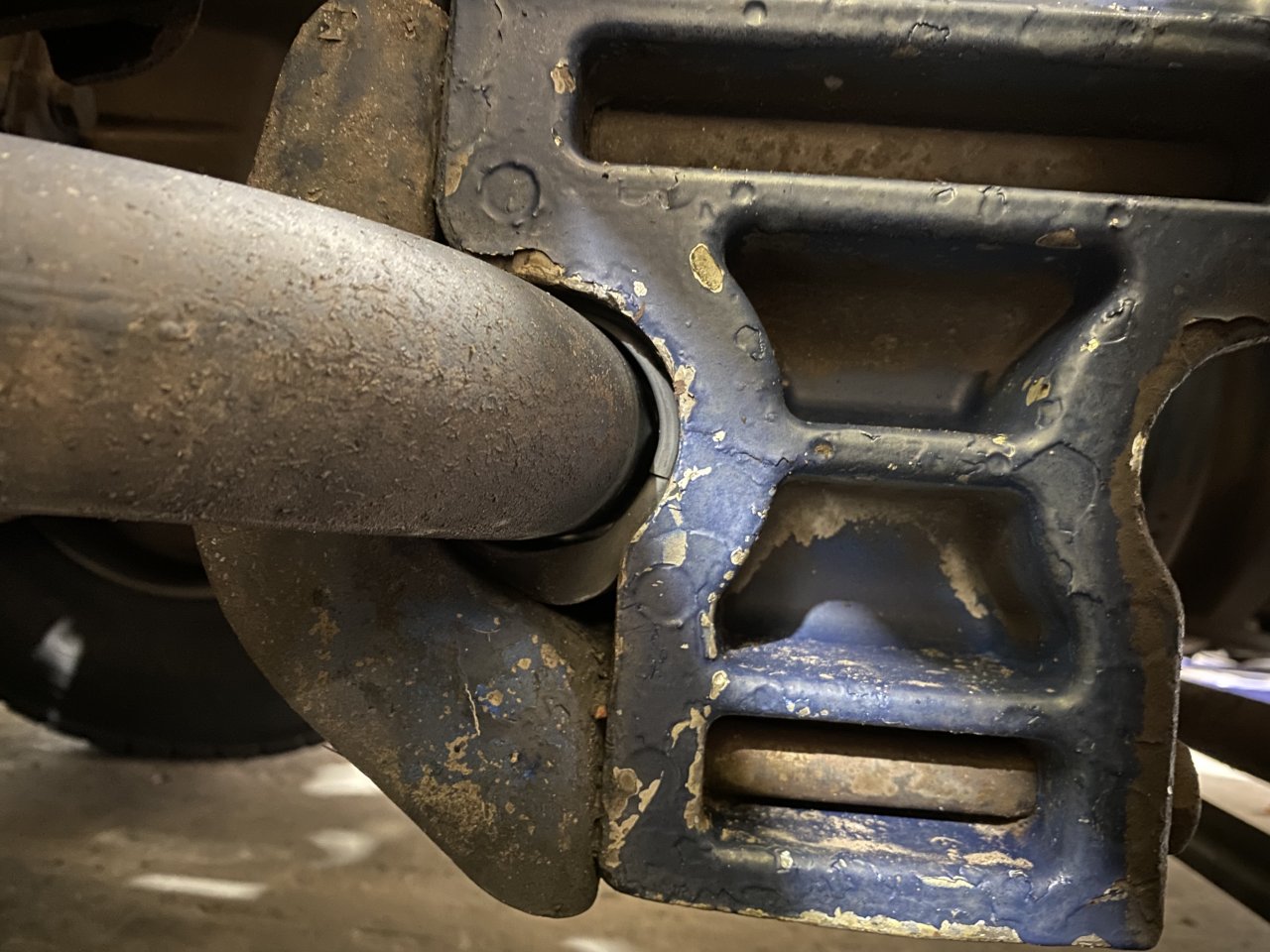

    FFE1F93E-F6D4-4022-8719-C0BE20725F4D.jpeg 54206871-3C24-4F12-AF45-E1F7C24005A1.jpeg
    Being dual pedestal and this is the front pedestal where the wear is, you have to drag the front axle back, compressing the jack shaft. Easiest way now I look at it is to take the front axle wheels off and drop the stabiliser bar entirely. Shouldn’t be too hard. What do you think of the wear? Can it wait or should I do it over the weekend? Rear stabiliser bar and all other bushes look good.

  10. Slowpoke KW

    Slowpoke KW Road Train Member

    1,125
    12,653
    Dec 7, 2015
    OK
    0
    I’ve seen worse but if it was mine I wouldn’t put it off for very long

    Ozdriver Thanks this.
  11. Ozdriver

    Ozdriver Heavy Load Member

    752
    1,319
    Oct 16, 2015
    Australia
    0

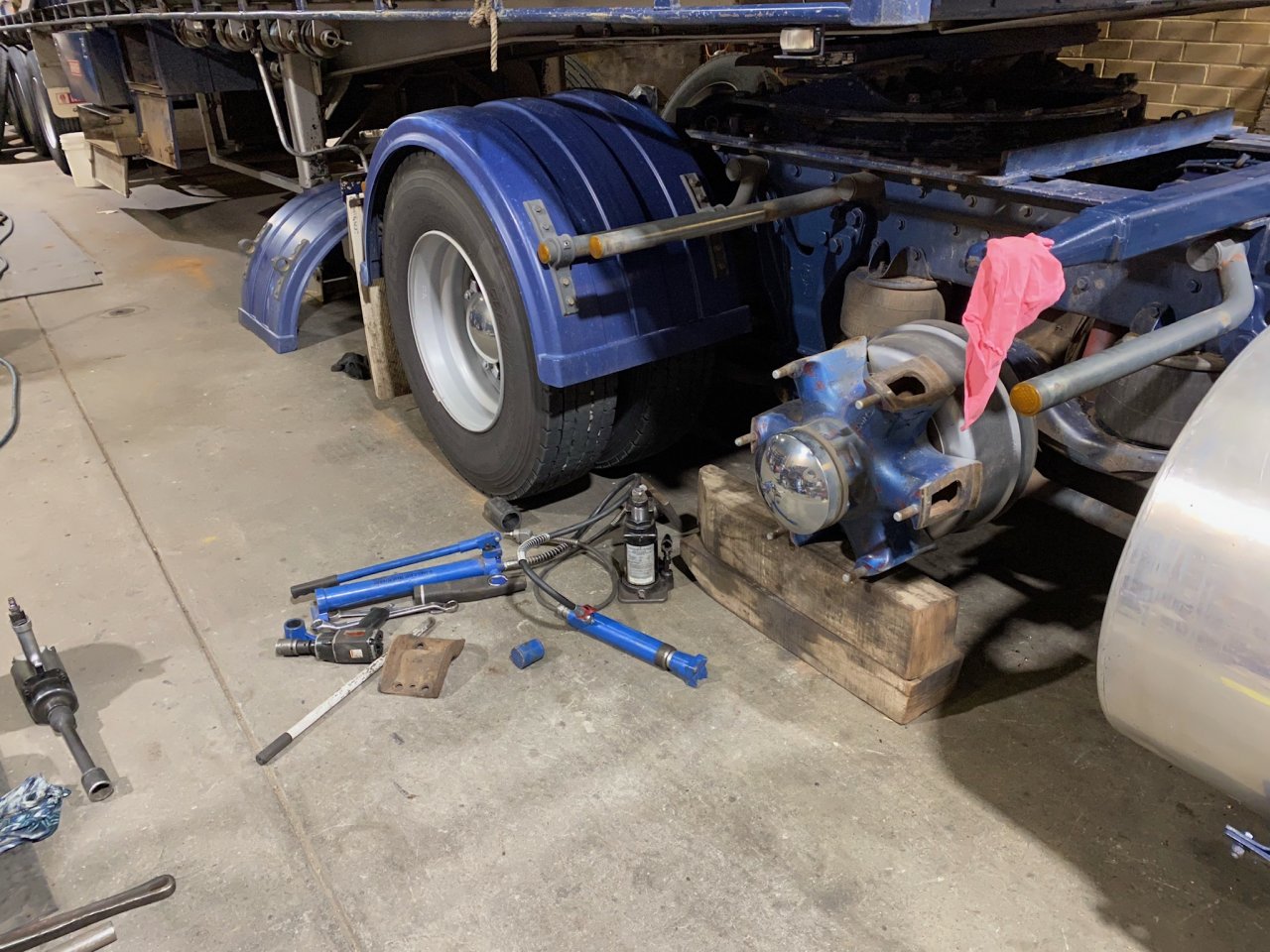

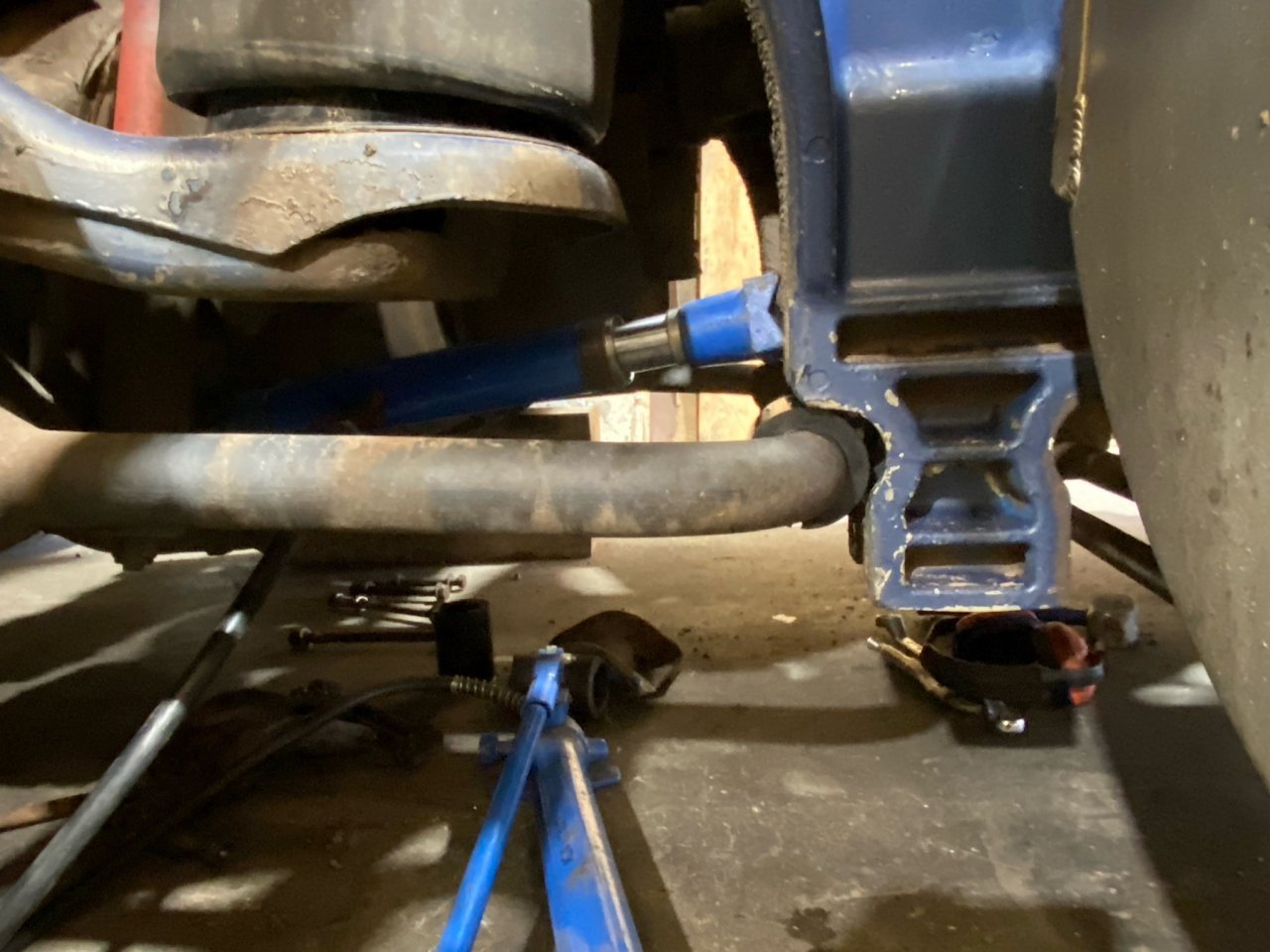

    I put new ones in yesterday. Took about two hours of work time. Much easier if you take the wheels off. Only the front axle needed doing. When all the other bushes on the suspension eventually wear out out I’ll do the whole lot next time. I replaced all the bushes a few years ago, not a huge or difficult job, just time consuming. D122BFD2-0DB8-4947-AF6C-27E6EF428517.jpeg 791C6F5E-7803-4FEF-B51C-12E87500D5BB.jpeg

    Slowpoke KW Thanks this.
