Stryker 955 in T-880

Discussion in 'CB Radio Forum' started by chriskc, Nov 25, 2021.

  1. chriskc

    chriskc Light Load Member

    172
    364
    Mar 31, 2013
    Kansas City mo
    0

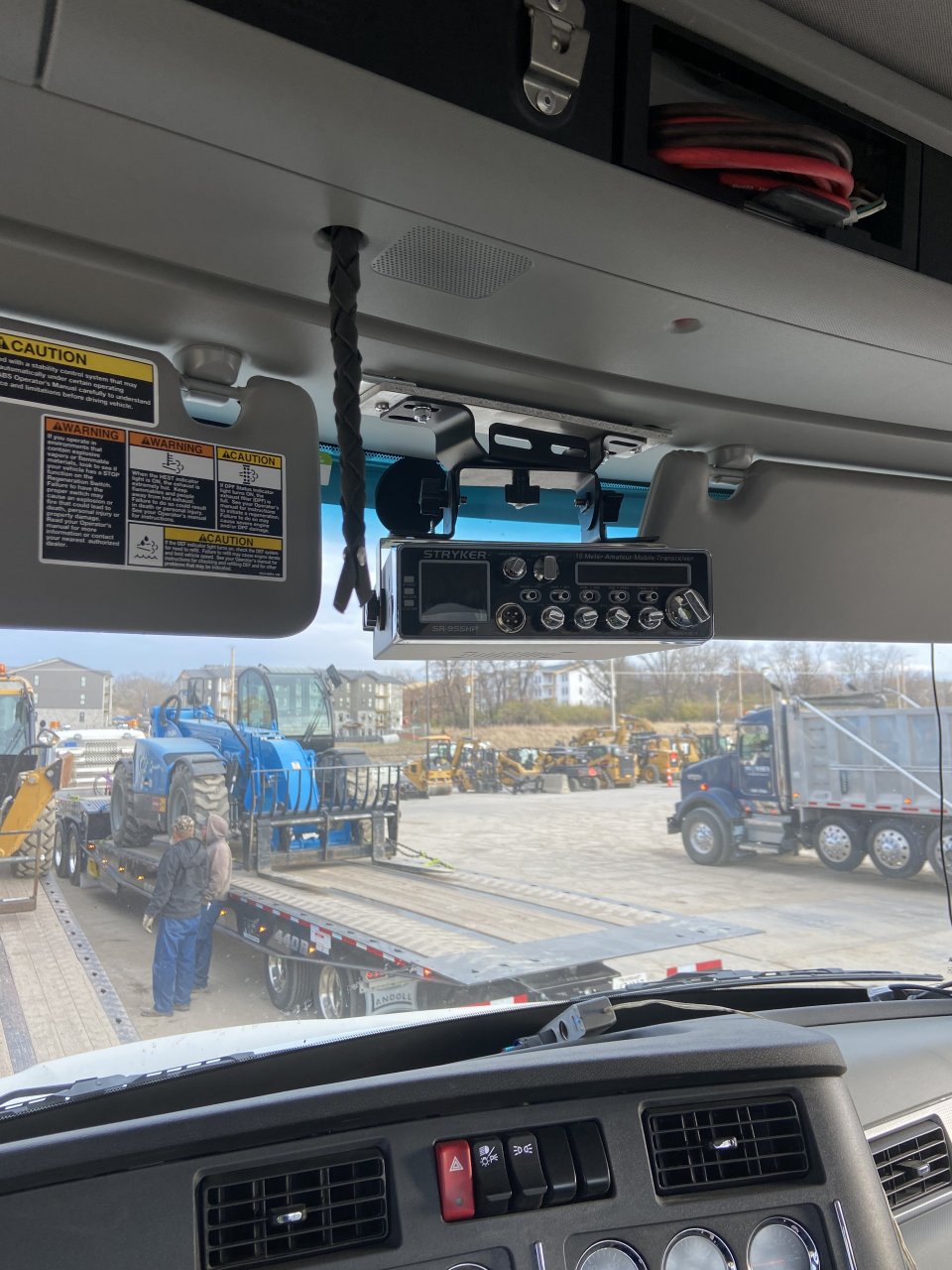

    5C4864F5-5C28-4242-AD1B-3197FEAE71BB.jpeg Got the 955 in place now to just finish wiring it up and running new coax.

    stacks and rabbiporkchop Thank this.
  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. craig_sez

    craig_sez Road Train Member

    5,184
    2,459
    Sep 5, 2013
    novascotia,Canada
    0
    Dont forget some bonding to..

    chriskc Thanks this.
  4. jdchet

    jdchet Medium Load Member

    343
    452
    Sep 3, 2012
    NE Ohio
    0

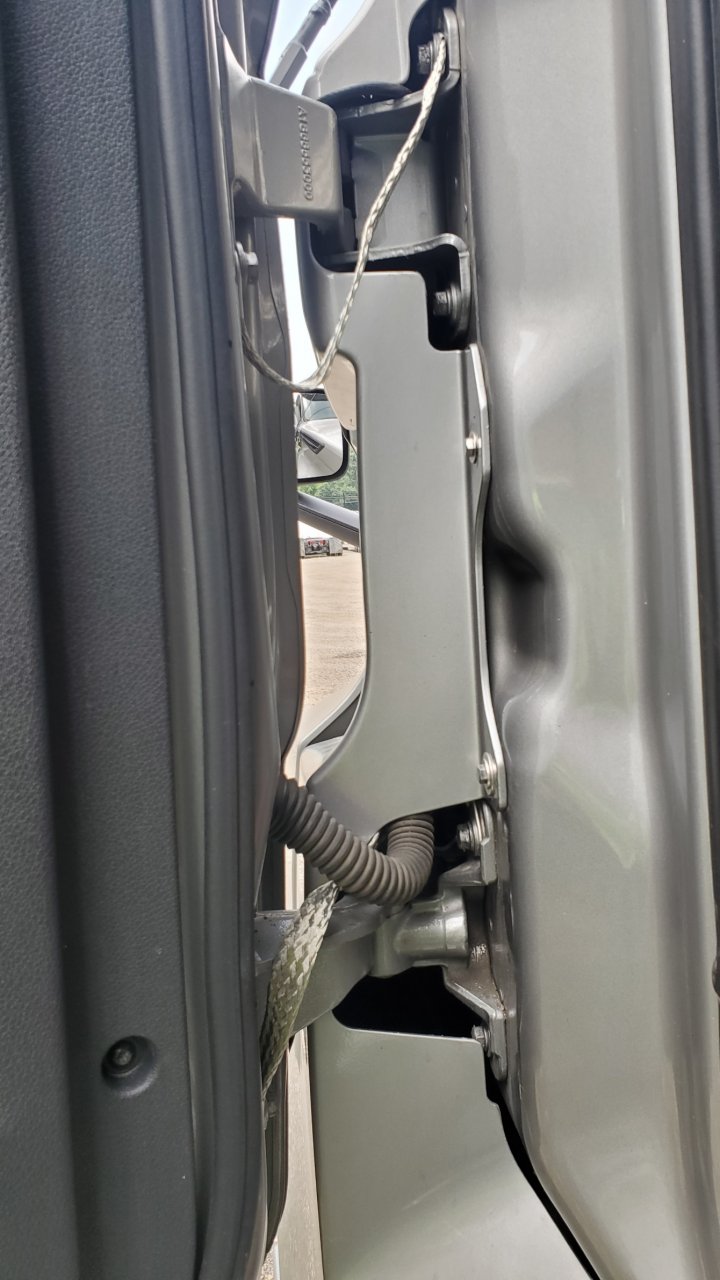

    Pay extra attention to your antenna system with this radio, especially in a newer truck. Failure to do so will result in your disappointment in your new Stryker's performance. Like Craig said bonding is part of it.Short ground straps on the door hinges is a good place to start. Example of what I have done on my Cascadia......
    Antenna placement and mounting is crucial. Look around on YouTube for videos regarding installing an antenna on your truck.
    This might sound like we are over complicating this, but you have invested a good deal of hard earned cash in your Stryker and it would be a shame to blow it up with an antenna system not worthy of your radio.

    Good luck!
    JD

  5. chriskc

    chriskc Light Load Member

    172
    364
    Mar 31, 2013
    Kansas City mo
    0
    Yea I’m not going to use the mirror mount. I’m going to put the antenna on my headache rack like I had it on my other truck. I still bonded the rack to the frame and it worked out good. Showed good numbers on my rig expert 55. I like to be able to get it above my cab and I’m able to talk to my local base stations in the 20 to 30 mile range all day. Im not on 19 much because we have the local preacher man on 19 all day.

    jdchet Thanks this.
  6. craig_sez

    craig_sez Road Train Member

    5,184
    2,459
    Sep 5, 2013
    novascotia,Canada
    0
    Yeap gettin it up is always good(Yes that what she said)...This is where you really need to pick up some really good coax with good quality ends..Once all put together and tested dont forget the lil things like covering every connection point for water/dirt intrusion..
    Bbi has a few vids on bonding which are great ut he also shows how he covers his straps and extra steps in keeping the bond connections clean n dry..Worth a watch even if you already do so...

  7. stacks

    stacks Road Train Member

    1,398
    724
    Oct 27, 2011
    Emerald Isle
    0
    Nice install radio will get ventilation but also could draw Attention from a thief

    chriskc Thanks this.
  8. stacks

    stacks Road Train Member

    1,398
    724
    Oct 27, 2011
    Emerald Isle
    0
    I like the Bracket Looks like the radio can be turned at desired Angle

    chriskc Thanks this.
  9. stacks

    stacks Road Train Member

    1,398
    724
    Oct 27, 2011
    Emerald Isle
    0
    What antenna are you using

  10. chriskc

    chriskc Light Load Member

    172
    364
    Mar 31, 2013
    Kansas City mo
    0
    Well locks only keep honest people out. I like the fact I can put it at the angle I wanted to. I just ordered a 10k dual coil and putting it on my headache rack with bonding the rack to the frame.

  11. craig_sez

    craig_sez Road Train Member

    5,184
    2,459
    Sep 5, 2013
    novascotia,Canada
    0
    Good plan on bonding..
    Once you get it do a test for height,dont want to be to tall....
    Once all tested installed i would seal every joint from tip to end.
