Suggestions on how to set up air lines to avoid rubbing?

Discussion in 'Trucks [ Eighteen Wheelers ]' started by GlassRoots, May 21, 2022.

  1. GlassRoots

    GlassRoots Bobtail Member

    13
    21
    Mar 7, 2015
    0
    The lines between my truck and trailer are touching in two spots, the mounting bracket where the lines start and the mounting bracket for the exhaust. It's a rental so I can't move either, so how would i go about setting the lines up so they aren't touching anything?

    The lines are connected to 2 springs above but it doesnt help.


  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. Val_Caldera

    Val_Caldera Road Train Member

    1,104
    2,929
    Apr 2, 2021
    Triad, NC
    0
    They Look Fine.
    They're Wrapped Up.
    Factory Setting.
    The Plasti-Rubber Banding Is Appropriate.

    The "Rental Shop" Will CHANGE NOTHING!!

    YOU Can Alter The Design By ELIMINATING The Plasti-Rubber Banding, But I would not.
    Where Exactly Is The PROBLEM other than sad choice of footwear??
    o_O:confused::rolleyes:


    Attached Files:

    Last edited: May 21, 2022
    spsauerland and LameMule Thank this.
  4. LameMule

    LameMule Heavy Load Member

    747
    4,336
    Jan 19, 2020
    Montana
    0
    The footwear is the only saftey concern.

  5. GlassRoots

    GlassRoots Bobtail Member

    13
    21
    Mar 7, 2015
    0
    It's actually made contact with the lines in between the spacing of the rubber. There isn't a hole yet but deep enough to feel and see. Definitely a violation and going to have to replace the two air lines today.

  6. God prefers Diesels

    God prefers Diesels Road Train Member

    3,617
    18,036
    Jun 26, 2020
    South Texas
    0

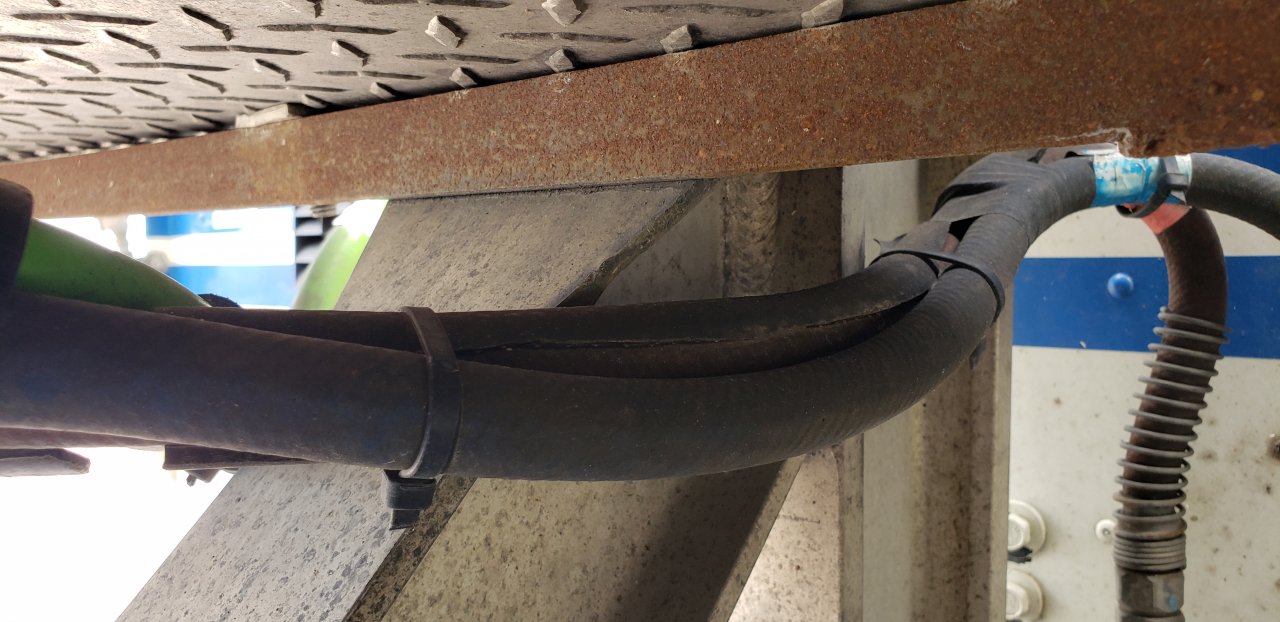

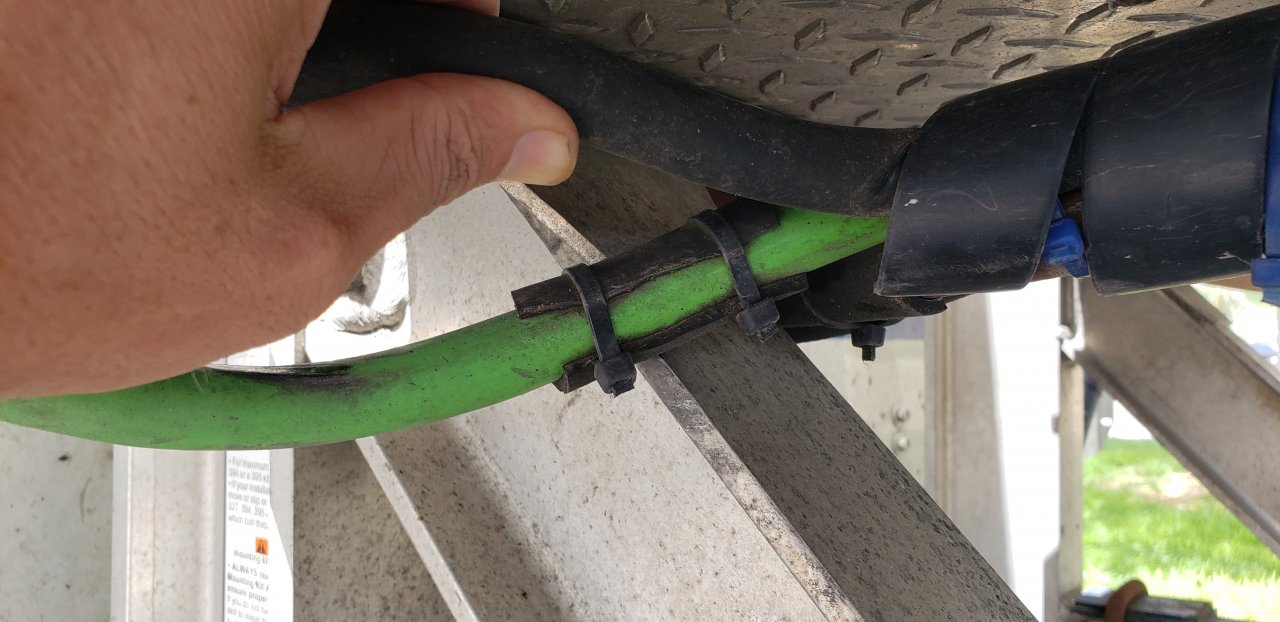

    Buy some heater hose and zip ties, and wrap them wherever they can touch as padding.

    Like this:

    20220521_135218.jpg 20220521_135240.jpg

  7. ProfessionalNoticer

    ProfessionalNoticer Road Train Member

    2,269
    5,591
    Apr 25, 2021
    0
    I was going to suggest the same thing as GPD above. The rental company should have zero problem with you doing that. I use the same method on everything on my truck and trailers. Caught one today, in fact.

  8. blairandgretchen

    blairandgretchen Road Train Member

    10,407
    48,387
    Dec 9, 2011
    South west Missouri
    0
  9. Numb

    Numb Crusty Curmudgeon

    2,764
    4,519
    Jan 30, 2012
    Charlotte, N.Carolina
    0
    add a bungie cord.

  10. Goodysnap

    Goodysnap Road Train Member

    2,910
    6,770
    Jul 12, 2017
    0
    Next time you're in the shop, maybe they could switch you over from rubber to coils? You have a lot of hose there that is not really needed.

    spsauerland Thanks this.
  11. GlassRoots

    GlassRoots Bobtail Member

    13
    21
    Mar 7, 2015
    0
    Yea I think that's what I'll probably do since the 2 air lines are toast anyway

    Goodysnap Thanks this.
