The new turbos don't look very new

Discussion in 'Heavy Duty Diesel Truck Mechanics Forum' started by Antonovich, Aug 7, 2022.

  1. Antonovich

    Antonovich Light Load Member

    143
    96
    May 11, 2019
    0
    Just had my first rebuild done on my 07 International 9400i with a Cat C15 ACERT. 1.4m miles

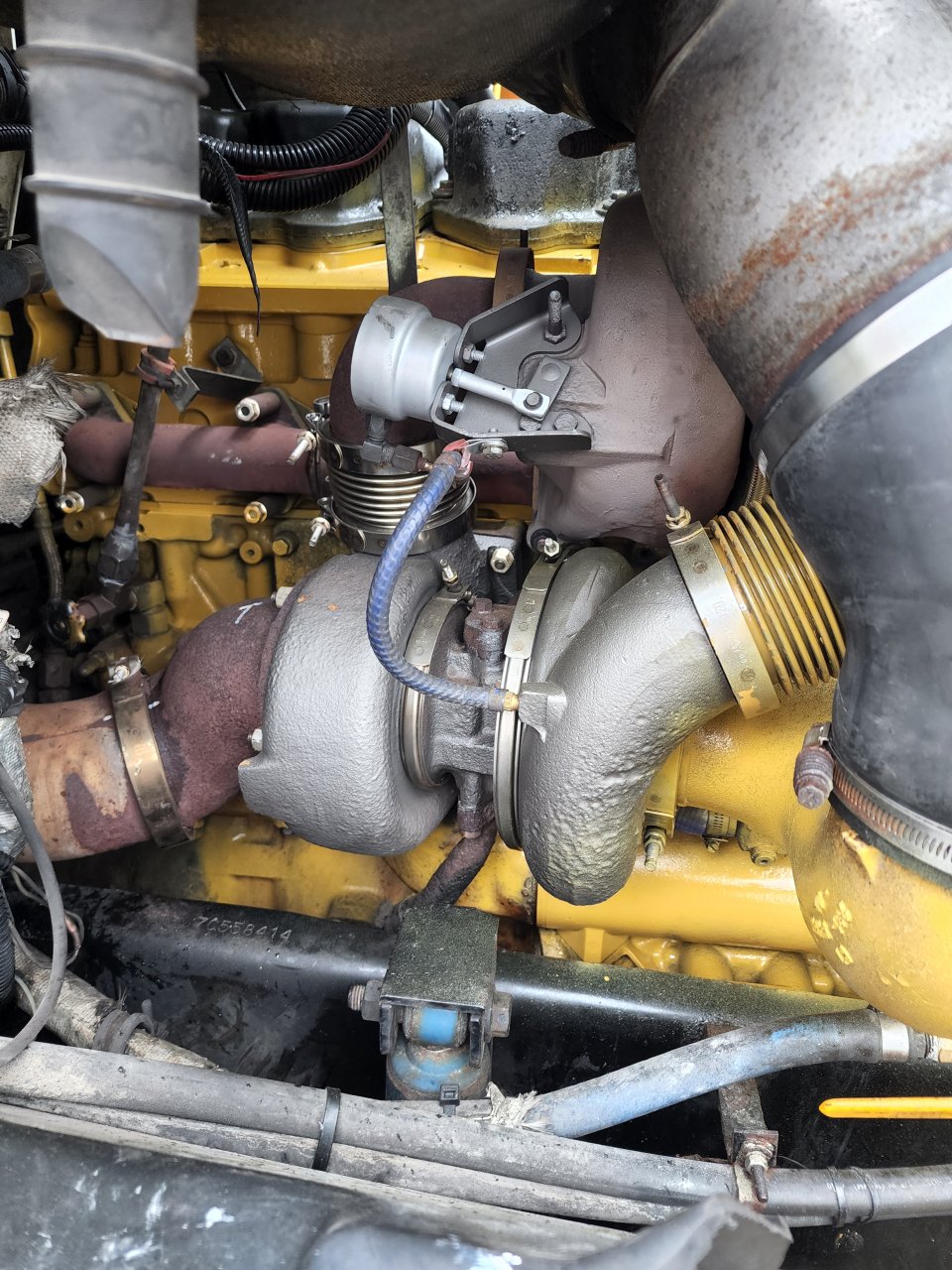

    Photo attached below

    My original turbos both had a bit of play but not that bad. No chunks missing or anything like that. The mechanics said that the turbos can not be rebuilt and had to be replaced. My concern is, the new aftermarket turbos don't look very "new". That pitting on the cold side and what looks like rust spots in the middle, looks like they just spray painted my old turbos silver.

    So, is this normal for aftermarket turbos to look like that? Also, is there a way to check if it is my old turbos? Can I just take off the air inlet tube and check the compressor wheel for play, like my old turbo had? Btw they charged about $4400 for both turbos replacement, if that makes any difference.

    I'd appreciate any input because this makes me very nervous since this is the 1st time I had a rebuild done and I paid a total of $31k for the job.


  2. Truckers Report Jobs

    Trucking Jobs in 30 seconds

    Every month 400 people find a job with the help of TruckersReport.

  3. wore out

    wore out Numbered Classic

    13,386
    166,548
    Jun 5, 2013
    CHASIN THE DEVIL'S HERD
    0
    Are they new or reman? Were cartridges just put in your housings? It’s easy to point fingers but make sure you have all the info first. I will say no those are not new in my opinion. However doesn’t mean they were not replaced and you were only charged for remans not new. All that should be listed on the invoice

    cke, Siinman, Oxbow and 6 others Thank this.
  4. Goodysnap

    Goodysnap Road Train Member

    3,055
    7,144
    Jul 12, 2017
    0
    What’s up with the manifold studs and nuts don’t even have a full nut on the threads? Plus those are not the CAT lock nuts on there.

    The lower turbo looks reman, I agree. Upper is hard to tell, you can only see the turbin housing. Actuator looks new. I doubt they just got rattle canned.

    What brand is hard to say.

    Oxbow, Diesel Dave, Antonovich and 3 others Thank this.
  5. S M D

    S M D Road Train Member

    2,389
    3,392
    Mar 15, 2012
    sacramento ca
    0
    Reman stuff gets refurbished painted to look good and resold. Might not look the best. But they toook them apart re sealed etc etc.

    Antonovich Thanks this.
  6. AModelCat

    AModelCat Road Train Member

    25,644
    131,660
    Jul 7, 2015
    Canuckistan
    0
    Lower is either reman or low quality control aftermarket.

    Those manifold nuts are definitely sketchy looking.

  7. spsauerland

    spsauerland Road Train Member

    4,291
    10,847
    May 31, 2010
    West Harrison, In
    0
    All look media blasted, common for reman or rebuilt. Agree on stud standout, going to have issues. You need to make a trip back to the repair shop.

    Oxbow, Antonovich and wore out Thank this.
  8. Antonovich

    Antonovich Light Load Member

    143
    96
    May 11, 2019
    0
    Thank you all for putting me at ease that I wasn't had with what looked like my rattlecanned old turbos. The invoice just shows the part number, doesn't say if it's new or reman.

    I didn't even notice the manifold studs because I was so focused on the turbo. I park my truck at the shop so I'll definitely let them know about the studs tomorrow.

    Oxbow Thanks this.
  9. spsauerland

    spsauerland Road Train Member

    4,291
    10,847
    May 31, 2010
    West Harrison, In
    0
    What was P/N's?

    Oxbow Thanks this.
  10. Antonovich

    Antonovich Light Load Member

    143
    96
    May 11, 2019
    0
    SRT741154-9006
    SRT741155-9003

  11. kranky1

    kranky1 Road Train Member

    2,254
    8,798
    Sep 16, 2015
    Ontario, Canada
    0
    Ignore the housings. Look and you may find Cat ReMan tags on the cartridges. The last set of turbos I got for my BXS looked a little sketchy like what I see there, but they had fresh cartridges and the pair were less than half the cost of the high pressure turbo from Cat. Been on the engine almost 4yrs with no issues.

    stuckinthemud and Antonovich Thank this.
